262

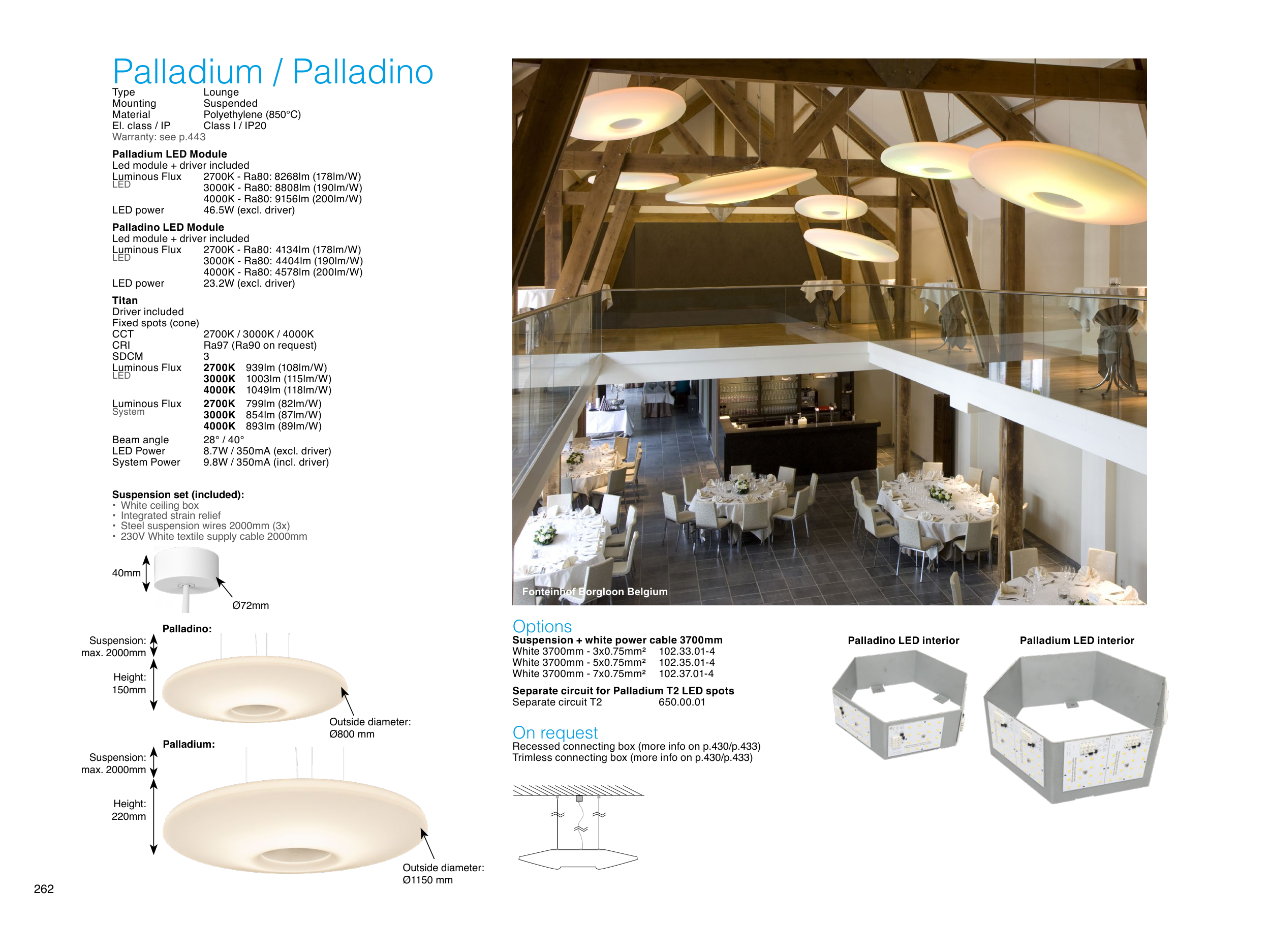

Palladium / Palladino
Palladium:
Outside diameter:
Ø1150 mm
Height:
150mm
Height:
220mm
Suspension:
max. 2000mm
Suspension:
max. 2000mm
Palladino:
Outside diameter:
Ø800 mm
Options
Suspension + white power cable 3700mm
White 3700mm - 3x0.75mm²
102.33.01-4
White 3700mm - 5x0.75mm²
102.35.01-4
White 3700mm - 7x0.75mm²
102.37.01-4
Separate circuit for Palladium T2 LED spots
Separate circuit T2
650.00.01
Type
Lounge
Mounting
Suspended
Material
Polyethylene (850°C)
El. class / IP
Class I / IP20
Warranty: see p.443
Palladium LED Module
Led module + driver included
Luminous Flux
2700K - Ra80: 8268lm (178lm/W)
LED
3000K - Ra80: 8808lm (190lm/W)
4000K - Ra80: 9156lm (200lm/W)
LED power
46.5W (excl. driver)
Palladino LED Module
Led module + driver included
Luminous Flux
2700K - Ra80: 4134lm (178lm/W)
LED
3000K - Ra80: 4404lm (190lm/W)
4000K - Ra80: 4578lm (200lm/W)
LED power
23.2W (excl. driver)
Titan
Driver included
Fixed spots (cone)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Luminous Flux
2700K 939lm (108lm/W)
LED
3000K 1003lm (115lm/W)
4000K 1049lm (118lm/W)
Luminous Flux
2700K 799lm (82lm/W)
System
3000K 854lm (87lm/W)
4000K 893lm (89lm/W)
Beam angle
28° / 40°
LED Power
8.7W / 350mA (excl. driver)
System Power
9.8W / 350mA (incl. driver)
Palladium LED interior
Palladino LED interior
Fonteinhof Borgloon Belgium
40mm
Ø72mm
On request
Recessed connecting box (more info on p.430/p.433)
Trimless connecting box (more info on p.430/p.433)
Suspension set (included):
• White ceiling box
• Integrated strain relief
• Steel suspension wires 2000mm (3x)
• 230V White textile supply cable 2000mm
