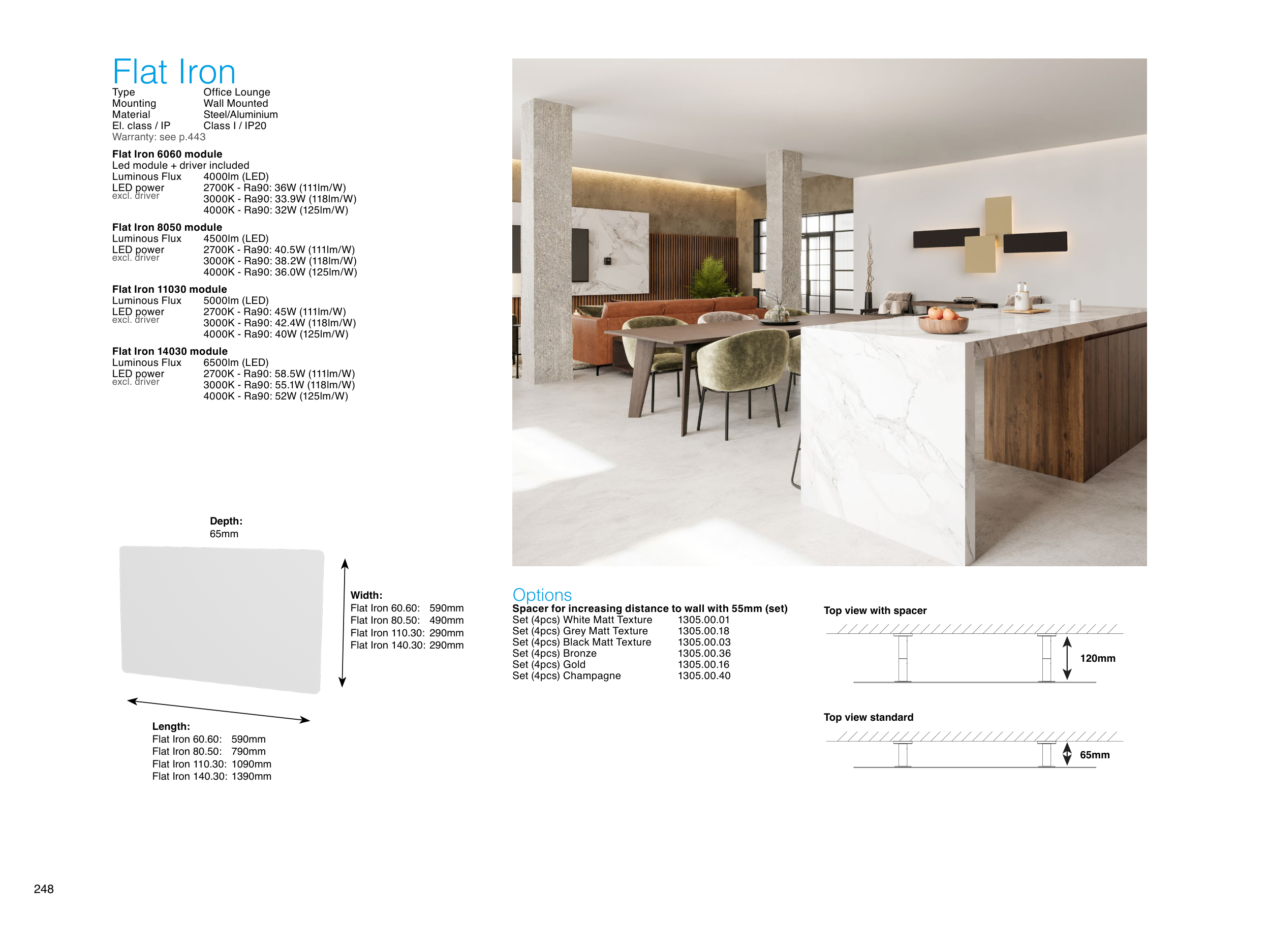

248
Flat Iron
Type
Office Lounge
Mounting
Wall Mounted
Material
Steel/Aluminium
El. class / IP
Class I / IP20
Warranty: see p.443
Flat Iron 6060 module
Led module + driver included
Luminous Flux
4000lm (LED)
LED power
2700K - Ra90: 36W (111lm/W)
excl. driver
3000K - Ra90: 33.9W (118lm/W)
4000K - Ra90: 32W (125lm/W)
Flat Iron 8050 module
Luminous Flux
4500lm (LED)
LED power
2700K - Ra90: 40.5W (111lm/W)
excl. driver
3000K - Ra90: 38.2W (118lm/W)
4000K - Ra90: 36.0W (125lm/W)
Flat Iron 11030 module
Luminous Flux
5000lm (LED)
LED power
2700K - Ra90: 45W (111lm/W)
excl. driver
3000K - Ra90: 42.4W (118lm/W)
4000K - Ra90: 40W (125lm/W)
Flat Iron 14030 module
Luminous Flux
6500lm (LED)
LED power
2700K - Ra90: 58.5W (111lm/W)
excl. driver
3000K - Ra90: 55.1W (118lm/W)
4000K - Ra90: 52W (125lm/W)
Options
Spacer for increasing distance to wall with 55mm (set)
Set (4pcs) White Matt Texture
1305.00.01
Set (4pcs) Grey Matt Texture
1305.00.18
Set (4pcs) Black Matt Texture
1305.00.03
Set (4pcs) Bronze
1305.00.36
Set (4pcs) Gold
1305.00.16
Set (4pcs) Champagne
1305.00.40
Width:
Flat Iron 60.60: 590mm
Flat Iron 80.50: 490mm
Flat Iron 110.30: 290mm
Flat Iron 140.30: 290mm
Depth:
65mm
Length:
Flat Iron 60.60: 590mm
Flat Iron 80.50: 790mm
Flat Iron 110.30: 1090mm
Flat Iron 140.30: 1390mm
Top view with spacer
65mm
120mm
Top view standard
