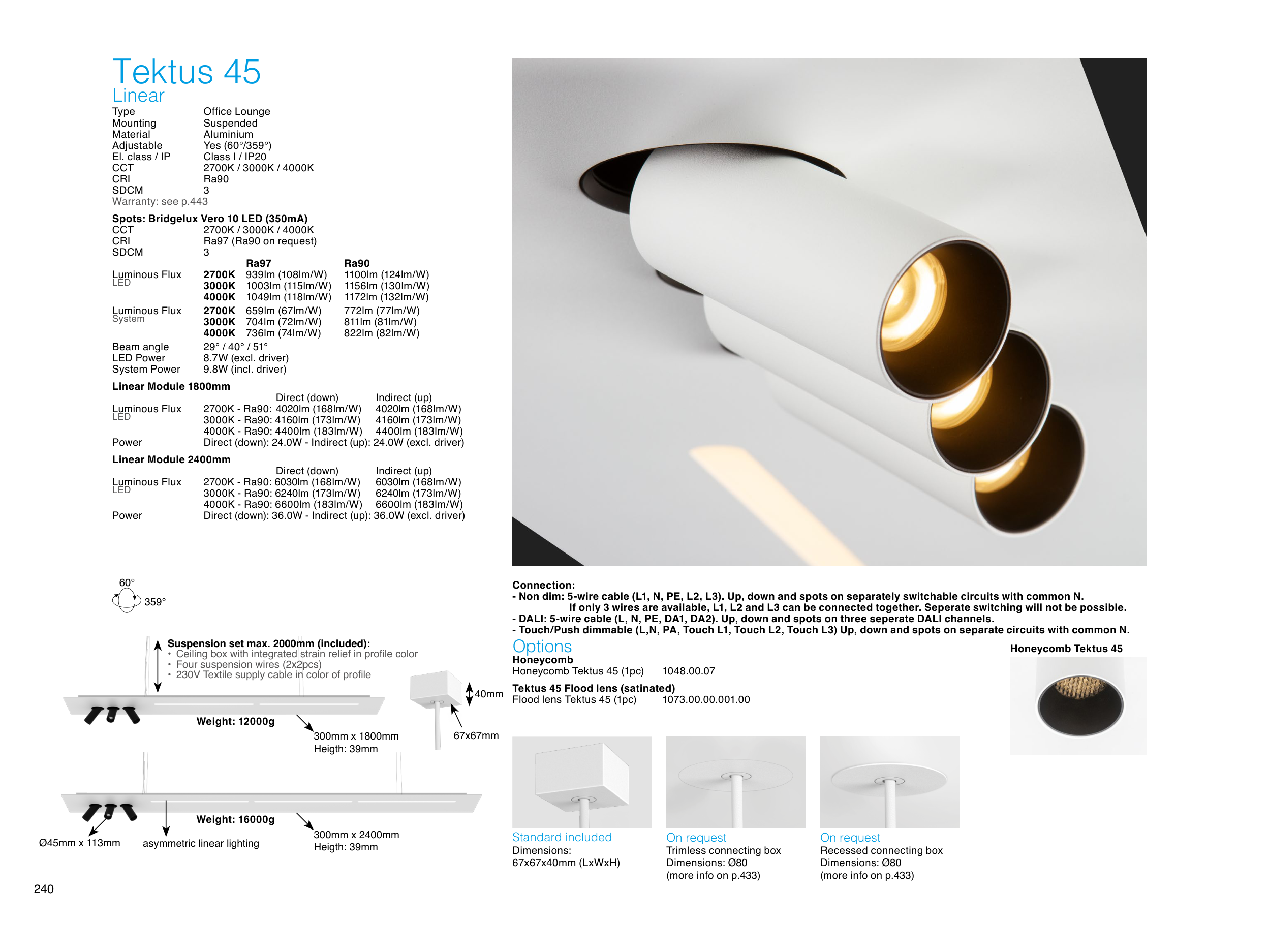

240
Linear
Type
Office Lounge
Mounting
Suspended
Material
Aluminium
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
CCT
2700K / 3000K / 4000K
CRI
Ra90
SDCM
3
Warranty: see p.443
Spots: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Linear Module 1800mm
Direct (down)
Indirect (up)
Luminous Flux
2700K - Ra90: 4020lm (168lm/W)
4020lm (168lm/W)
LED
3000K - Ra90: 4160lm (173lm/W)
4160lm (173lm/W)
4000K - Ra90: 4400lm (183lm/W)
4400lm (183lm/W)
Power
Direct (down): 24.0W - Indirect (up): 24.0W (excl. driver)
Linear Module 2400mm
Direct (down)
Indirect (up)
Luminous Flux
2700K - Ra90: 6030lm (168lm/W)
6030lm (168lm/W)
LED
3000K - Ra90: 6240lm (173lm/W)
6240lm (173lm/W)
4000K - Ra90: 6600lm (183lm/W)
6600lm (183lm/W)
Power
Direct (down): 36.0W - Indirect (up): 36.0W (excl. driver)
300mm x 1800mm
Heigth: 39mm
300mm x 2400mm
Heigth: 39mm
Ø45mm x 113mm
asymmetric linear lighting
359°
60°
Connection:
- Non dim: 5-wire cable (L1, N, PE, L2, L3). Up, down and spots on separately switchable circuits with common N.
If only 3 wires are available, L1, L2 and L3 can be connected together. Seperate switching will not be possible.
- DALI: 5-wire cable (L, N, PE, DA1, DA2). Up, down and spots on three seperate DALI channels.
- Touch/Push dimmable (L,N, PA, Touch L1, Touch L2, Touch L3) Up, down and spots on separate circuits with common N.
Weight: 16000g
Weight: 12000g
40mm
67x67mm
Suspension set max. 2000mm (included):
• Ceiling box with integrated strain relief in profile color
• Four suspension wires (2x2pcs)
• 230V Textile supply cable in color of profile
On request
Recessed connecting box
Dimensions: Ø80
(more info on p.433)
Standard included
Dimensions:
67x67x40mm (LxWxH)
On request
Trimless connecting box
Dimensions: Ø80
(more info on p.433)
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Tektus 45 Flood lens (satinated)
Flood lens Tektus 45 (1pc)
1073.00.00.001.00
Honeycomb Tektus 45
Tektus 45
