238
Type
Office Lounge
Mounting
Suspended
Material
Aluminium
Adjustable
No
El. class / IP
Class I / IP20
Incl. protective glass
Warranty: see p.443
Bridgelux Vero 18 LED
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K - 700mA 2206lm (116lm/W) 2585lm (135lm/W)
LED
3000K - 700mA 2357lm (124lm/W) 2604lm (136lm/W)
4000K - 700mA 2552lm (133lm/W) 2755lm (143lm/W)
2700K - 1050mA 3225lm (110lm/W) 3754lm (126lm/W)
3000K - 1050mA 3446lm (118lm/W) 3782lm (127lm/W)
4000K - 1050mA 3617lm (123lm/W) 4001lm (135lm/W)
Luminous Flux
2700K - 700mA 1774lm (83lm/W) 2096lm (94lm/W)
System
3000K - 700mA 1896lm (89lm/W) 2112lm (95lm/W)
4000K - 700mA 2053lm (95lm/W) 2234lm (101lm/W)
2700K - 1050mA 2594lm (79lm/W) 3044lm (91lm/W)
3000K - 1050mA 2772lm (84lm/W) 3067lm (92lm/W)
4000K - 1050mA 2909lm (88lm/W) 3244lm (97lm/W)
Beam angle
22° / 45° / 58°
LED Power
700mA: 19.0W 1050mA: 29.3W (excl. driver)
System Power
700mA: 21.6W 1050mA: 32.9W (incl. driver)

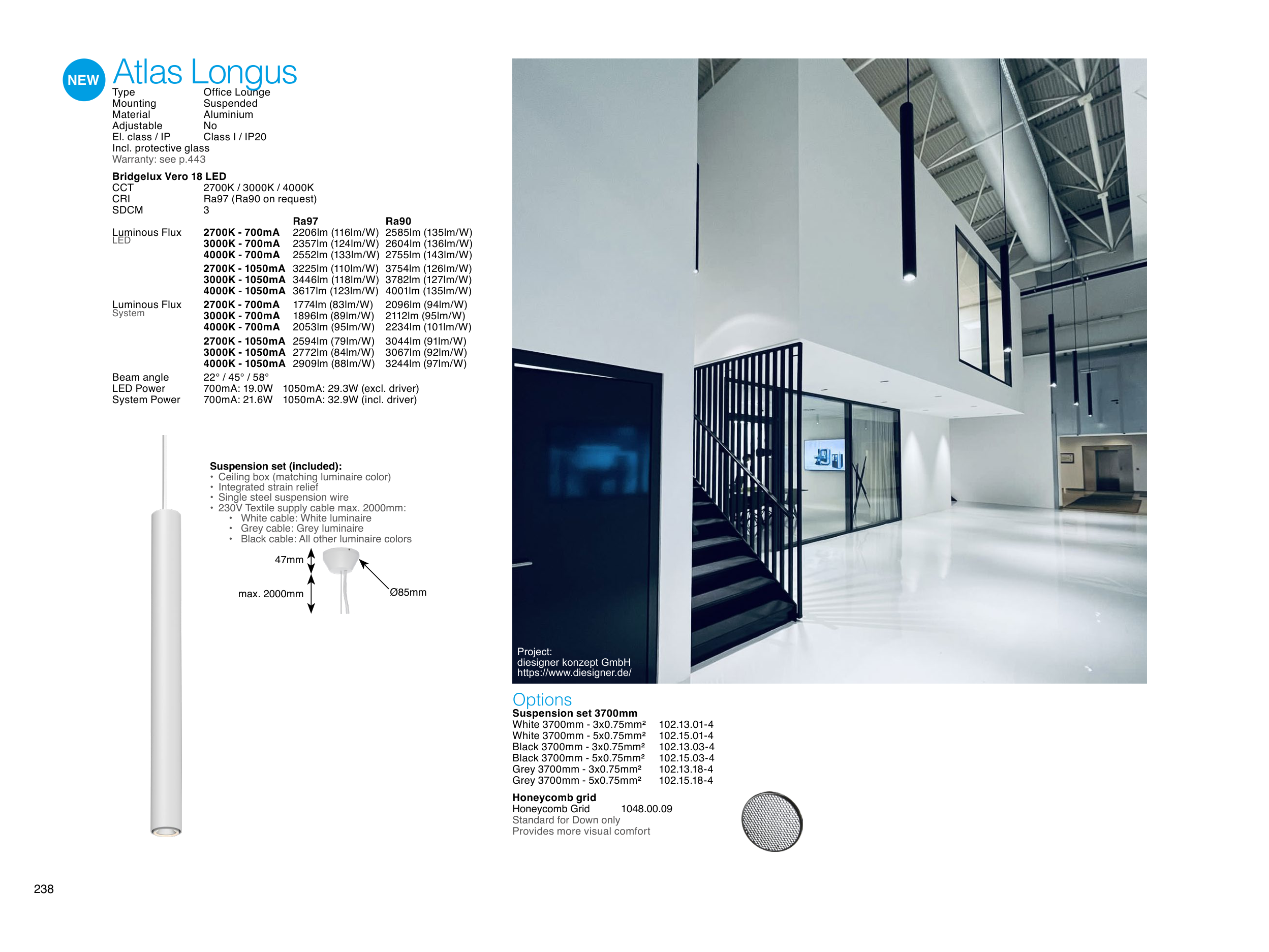

Atlas Longus
Options
Suspension set 3700mm
White 3700mm - 3x0.75mm²
102.13.01-4
White 3700mm - 5x0.75mm²
102.15.01-4
Black 3700mm - 3x0.75mm²
102.13.03-4
Black 3700mm - 5x0.75mm²
102.15.03-4
Grey 3700mm - 3x0.75mm²
102.13.18-4
Grey 3700mm - 5x0.75mm²
102.15.18-4
Honeycomb grid
Honeycomb Grid
1048.00.09
Standard for Down only
Provides more visual comfort
Suspension set (included):
• Ceiling box (matching luminaire color)
• Integrated strain relief
• Single steel suspension wire
• 230V Textile supply cable max. 2000mm:
• White cable: White luminaire
• Grey cable: Grey luminaire
• Black cable: All other luminaire colors
47mm
max. 2000mm
Ø85mm
Project:
diesigner konzept GmbH
https://www.diesigner.de/
NEW
