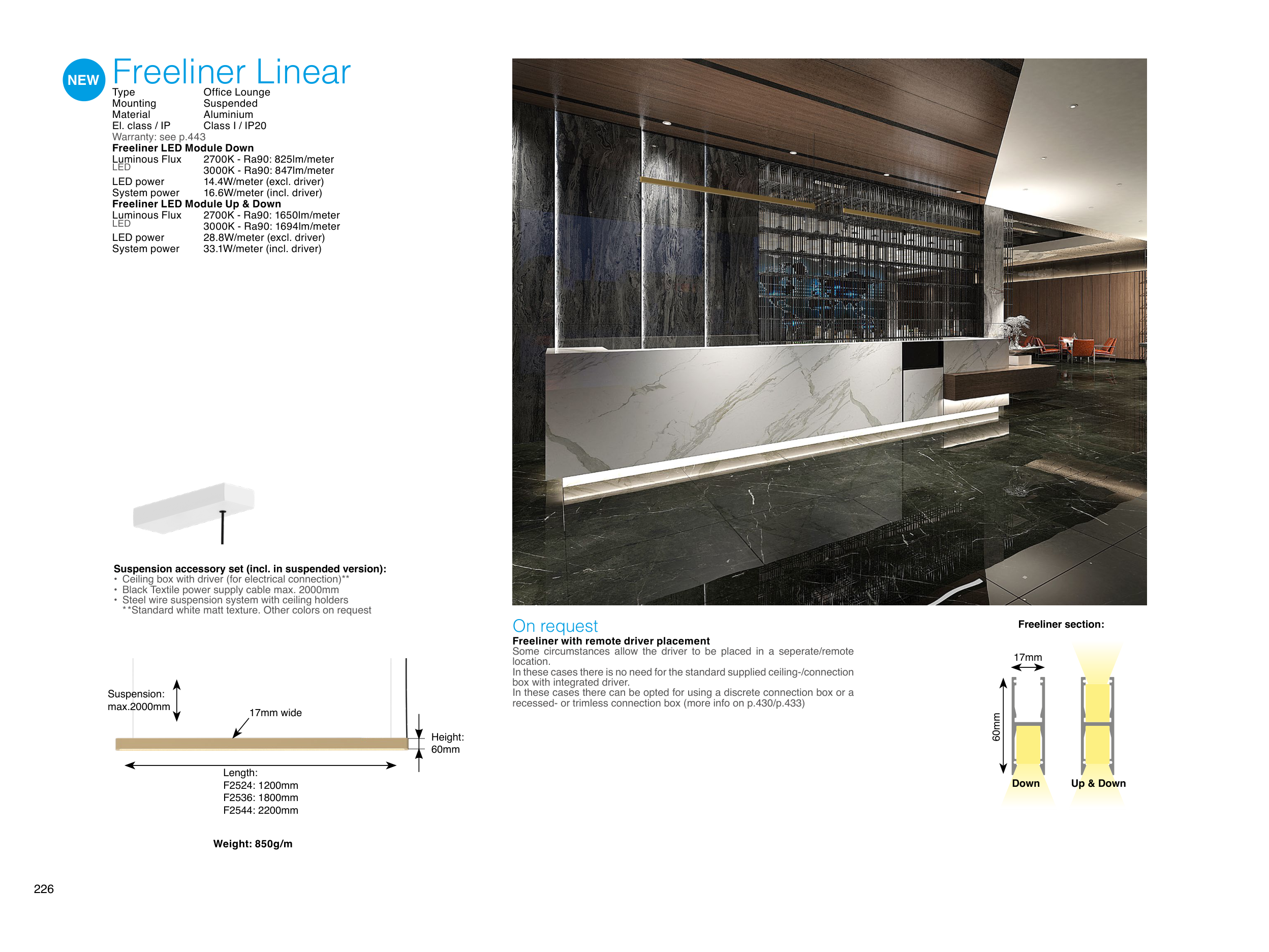

Freeliner Linear
Type
Office Lounge
Mounting
Suspended
Material
Aluminium
El. class / IP
Class I / IP20
Warranty: see p.443
Freeliner LED Module Down
Luminous Flux
2700K - Ra90: 825lm/meter
LED
3000K - Ra90: 847lm/meter
LED power
14.4W/meter (excl. driver)
System power
16.6W/meter (incl. driver)
Freeliner LED Module Up & Down
Luminous Flux
2700K - Ra90: 1650lm/meter
LED
3000K - Ra90: 1694lm/meter
LED power
28.8W/meter (excl. driver)
System power
33.1W/meter (incl. driver)
Suspension accessory set (incl. in suspended version):
• Ceiling box with driver (for electrical connection)**
• Black Textile power supply cable max. 2000mm
• Steel wire suspension system with ceiling holders
* *Standard white matt texture. Other colors on request
Length:
F2524: 1200mm
F2536: 1800mm
F2544: 2200mm
Suspension:
max.2000mm
17mm wide
Height:
60mm
Weight: 850g/m
60mm
Freeliner section:
Down
17mm
Up & Down
On request
Freeliner with remote driver placement
Some circumstances allow the driver to be placed in a seperate/remote
location.
In these cases there is no need for the standard supplied ceiling-/connection
box with integrated driver.
In these cases there can be opted for using a discrete connection box or a
recessed- or trimless connection box (more info on p.430/p.433)
NEW
