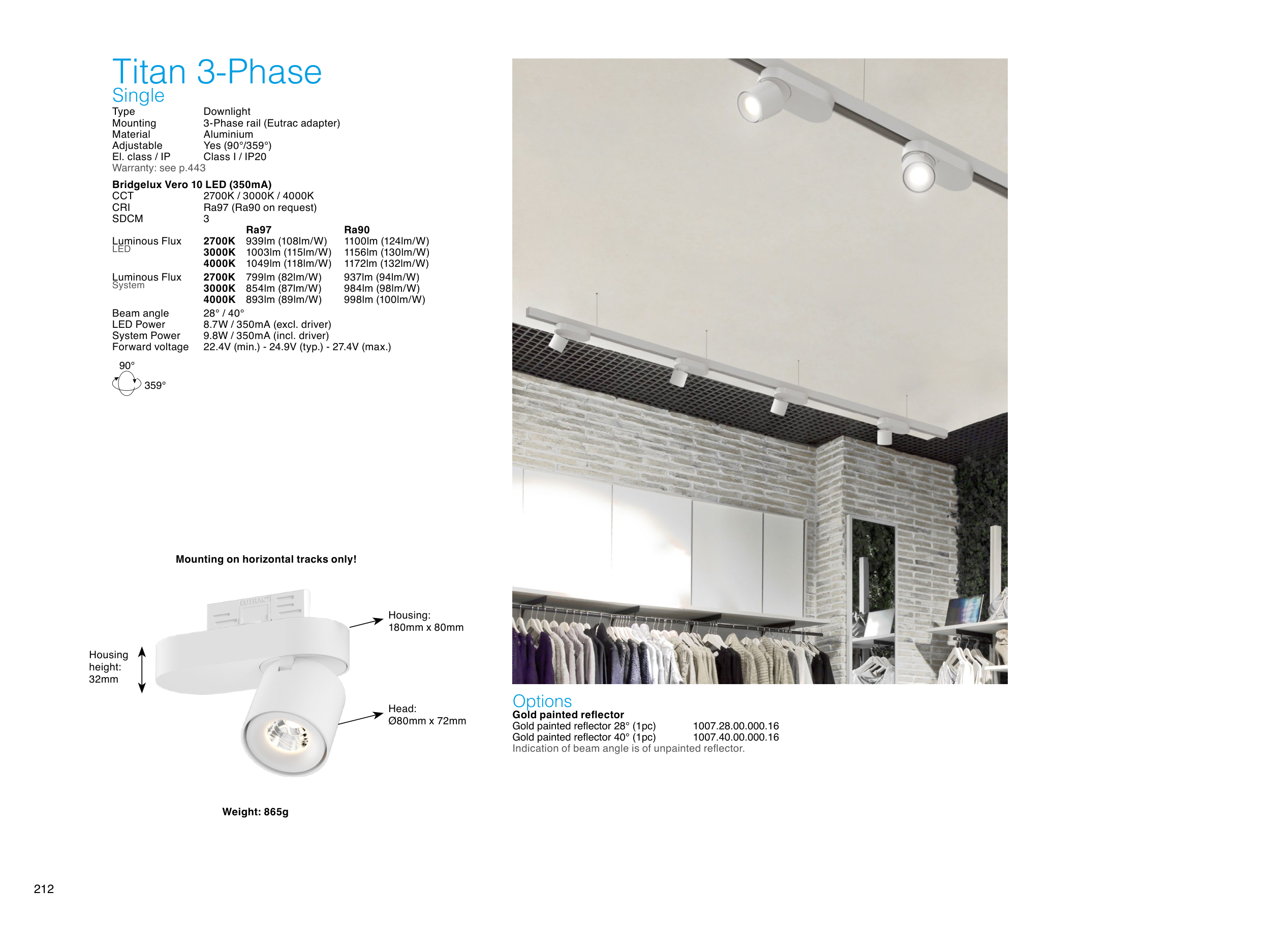

212
Type
Downlight
Mounting
3-Phase rail (Eutrac adapter)
Material
Aluminium
Adjustable
Yes (90°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 799lm (82lm/W)
937lm (94lm/W)
System
3000K 854lm (87lm/W)
984lm (98lm/W)
4000K 893lm (89lm/W)
998lm (100lm/W)
Beam angle
28° / 40°
LED Power
8.7W / 350mA (excl. driver)
System Power
9.8W / 350mA (incl. driver)
Forward voltage
22.4V (min.) - 24.9V (typ.) - 27.4V (max.)
359°
90°
Single
Titan 3-Phase
Weight: 865g
Housing:
180mm x 80mm
Head:
Ø80mm x 72mm
Housing
height:
32mm
Mounting on horizontal tracks only!
Options
Gold painted reflector
Gold painted reflector 28° (1pc)
1007.28.00.000.16
Gold painted reflector 40° (1pc)
1007.40.00.000.16
Indication of beam angle is of unpainted reflector.
