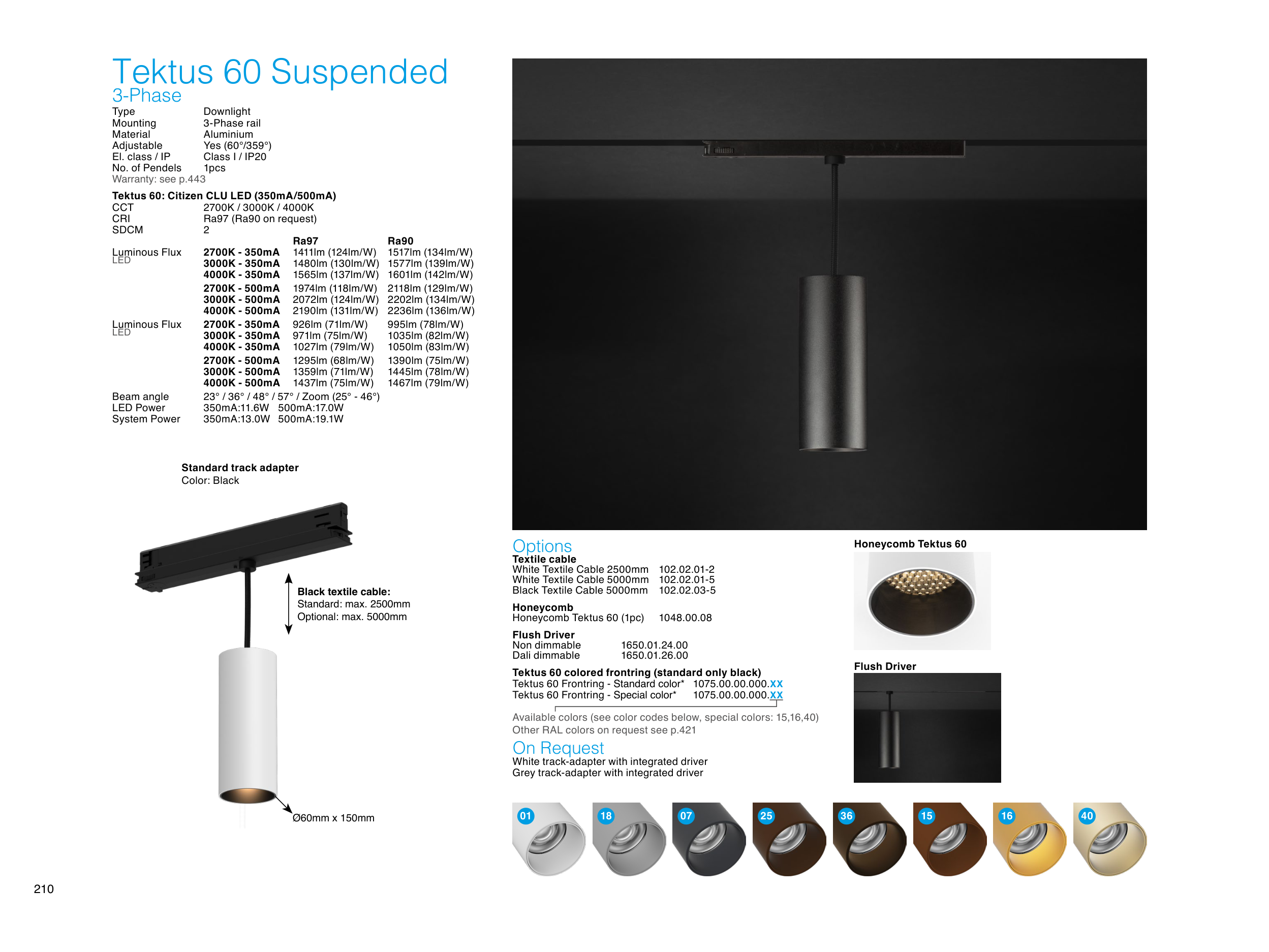

Tektus 60 Suspended
3-Phase
Type
Downlight
Mounting
3-Phase rail
Material
Aluminium
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
No. of Pendels
1pcs
Warranty: see p.443
Tektus 60: Citizen CLU LED (350mA/500mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K - 350mA 1411lm (124lm/W) 1517lm (134lm/W)
LED
3000K - 350mA 1480lm (130lm/W) 1577lm (139lm/W)
4000K - 350mA 1565lm (137lm/W) 1601lm (142lm/W)
2700K - 500mA 1974lm (118lm/W) 2118lm (129lm/W)
3000K - 500mA 2072lm (124lm/W) 2202lm (134lm/W)
4000K - 500mA 2190lm (131lm/W) 2236lm (136lm/W)
Luminous Flux
2700K - 350mA 926lm (71lm/W)
995lm (78lm/W)
LED
3000K - 350mA 971lm (75lm/W)
1035lm (82lm/W)
4000K - 350mA 1027lm (79lm/W) 1050lm (83lm/W)
2700K - 500mA 1295lm (68lm/W) 1390lm (75lm/W)
3000K - 500mA 1359lm (71lm/W)
1445lm (78lm/W)
4000K - 500mA 1437lm (75lm/W) 1467lm (79lm/W)
Beam angle
23° / 36° / 48° / 57° / Zoom (25° - 46°)
LED Power
350mA:11.6W 500mA:17.0W
System Power
350mA:13.0W 500mA:19.1W
Options
Textile cable
White Textile Cable 2500mm 102.02.01-2
White Textile Cable 5000mm 102.02.01-5
Black Textile Cable 5000mm 102.02.03-5
Honeycomb
Honeycomb Tektus 60 (1pc)
1048.00.08
Flush Driver
Non dimmable
1650.01.24.00
Dali dimmable
1650.01.26.00
Tektus 60 colored frontring (standard only black)
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
On Request
White track-adapter with integrated driver
Grey track-adapter with integrated driver
Ø60mm x 150mm
Standard track adapter
Color: Black
Black textile cable:
Standard: max. 2500mm
Optional: max. 5000mm
Flush Driver
Honeycomb Tektus 60
01
15
18
07
25
16
36
40
