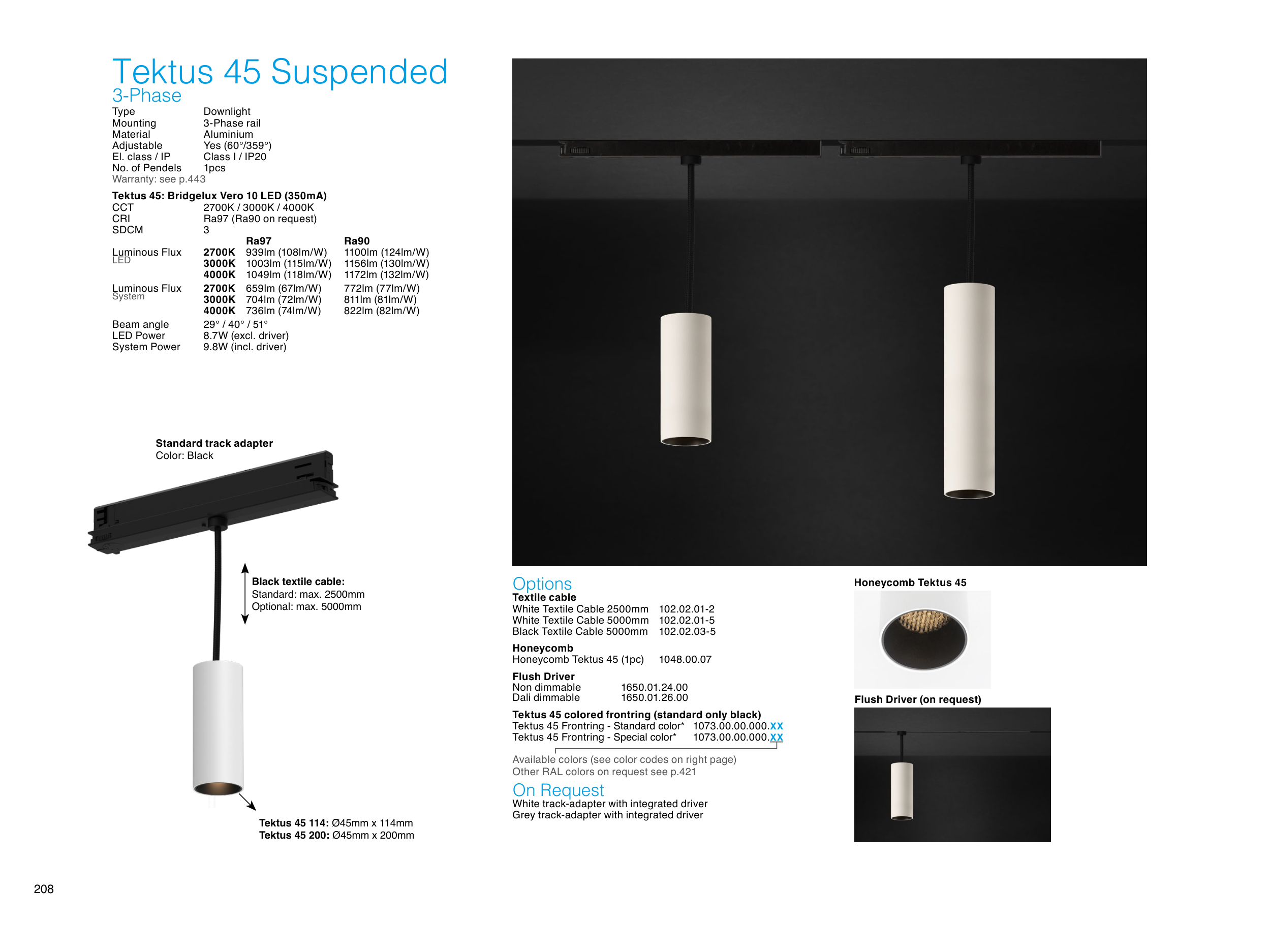

Tektus 45 Suspended
3-Phase
Type
Downlight
Mounting
3-Phase rail
Material
Aluminium
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
No. of Pendels
1pcs
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Options
Textile cable
White Textile Cable 2500mm 102.02.01-2
White Textile Cable 5000mm 102.02.01-5
Black Textile Cable 5000mm 102.02.03-5
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Flush Driver
Non dimmable
1650.01.24.00
Dali dimmable
1650.01.26.00
Tektus 45 colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Available colors (see color codes on right page)
Other RAL colors on request see p.421
On Request
White track-adapter with integrated driver
Grey track-adapter with integrated driver
Flush Driver (on request)
Tektus 45 114: Ø45mm x 114mm
Tektus 45 200: Ø45mm x 200mm
Black textile cable:
Standard: max. 2500mm
Optional: max. 5000mm
Standard track adapter
Color: Black
Honeycomb Tektus 45
