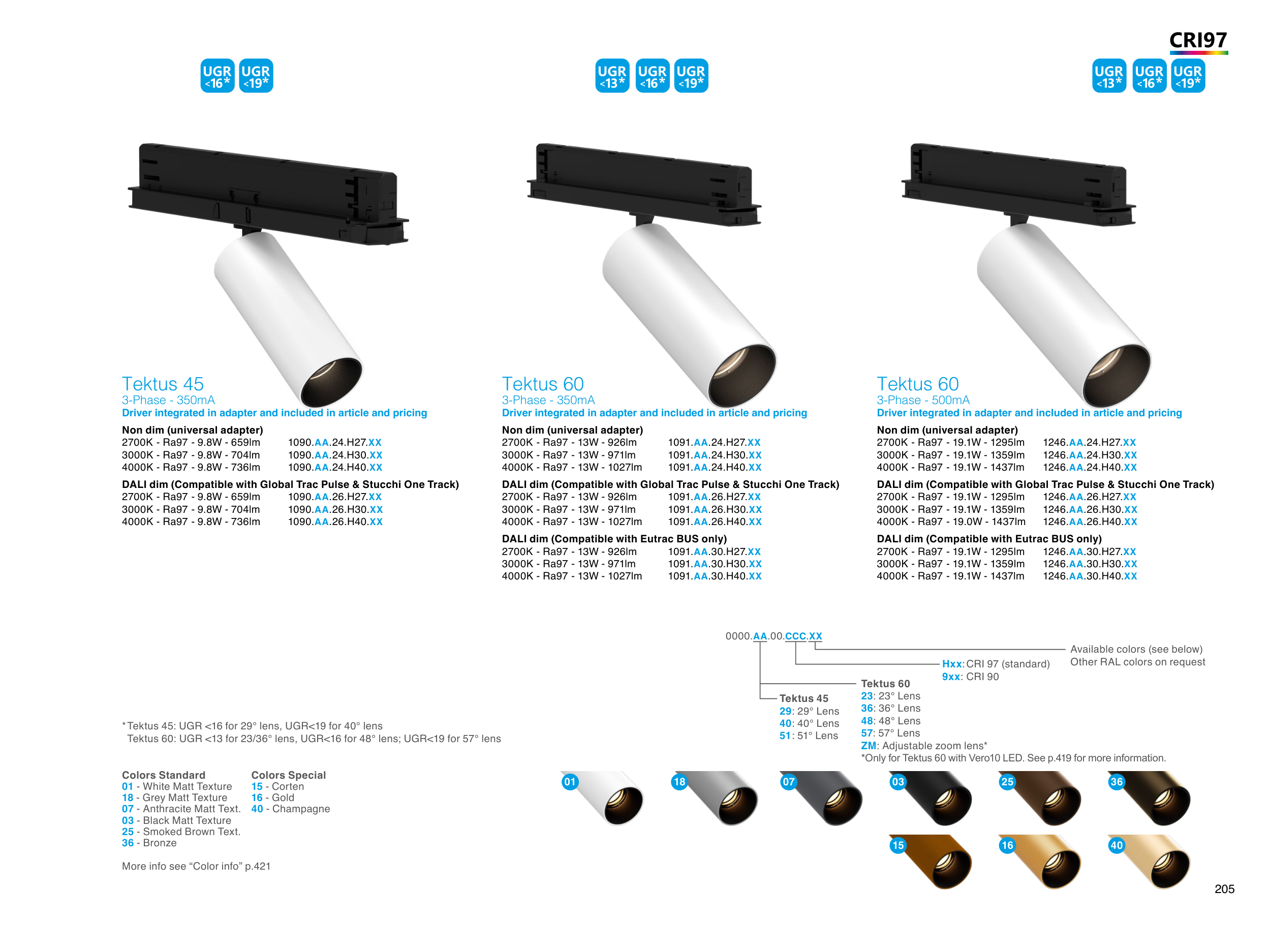

Tektus 60
3-Phase - 500mA
Driver integrated in adapter and included in article and pricing
Non dim (universal adapter)
2700K - Ra97 - 19.1W - 1295lm
1246.AA.24.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1246.AA.24.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1246.AA.24.H40.XX
DALI dim (Compatible with Global Trac Pulse & Stucchi One Track)
2700K - Ra97 - 19.1W - 1295lm
1246.AA.26.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1246.AA.26.H30.XX
4000K - Ra97 - 19.0W - 1437lm
1246.AA.26.H40.XX
DALI dim (Compatible with Eutrac BUS only)
2700K - Ra97 - 19.1W - 1295lm
1246.AA.30.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1246.AA.30.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1246.AA.30.H40.XX
Tektus 60
3-Phase - 350mA
Driver integrated in adapter and included in article and pricing
Non dim (universal adapter)
2700K - Ra97 - 13W - 926lm
1091.AA.24.H27.XX
3000K - Ra97 - 13W - 971lm
1091.AA.24.H30.XX
4000K - Ra97 - 13W - 1027lm
1091.AA.24.H40.XX
DALI dim (Compatible with Global Trac Pulse & Stucchi One Track)
2700K - Ra97 - 13W - 926lm
1091.AA.26.H27.XX
3000K - Ra97 - 13W - 971lm
1091.AA.26.H30.XX
4000K - Ra97 - 13W - 1027lm
1091.AA.26.H40.XX
DALI dim (Compatible with Eutrac BUS only)
2700K - Ra97 - 13W - 926lm
1091.AA.30.H27.XX
3000K - Ra97 - 13W - 971lm
1091.AA.30.H30.XX
4000K - Ra97 - 13W - 1027lm
1091.AA.30.H40.XX
Tektus 45
3-Phase - 350mA
Driver integrated in adapter and included in article and pricing
Non dim (universal adapter)
2700K - Ra97 - 9.8W - 659lm
1090.AA.24.H27.XX
3000K - Ra97 - 9.8W - 704lm
1090.AA.24.H30.XX
4000K - Ra97 - 9.8W - 736lm
1090.AA.24.H40.XX
DALI dim (Compatible with Global Trac Pulse & Stucchi One Track)
2700K - Ra97 - 9.8W - 659lm
1090.AA.26.H27.XX
3000K - Ra97 - 9.8W - 704lm
1090.AA.26.H30.XX
4000K - Ra97 - 9.8W - 736lm
1090.AA.26.H40.XX
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
ZM: Adjustable zoom lens*
*Only for Tektus 60 with Vero10 LED. See p.419 for more information.
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
01
15
18
07
03
25
16
36
40
CRI97
