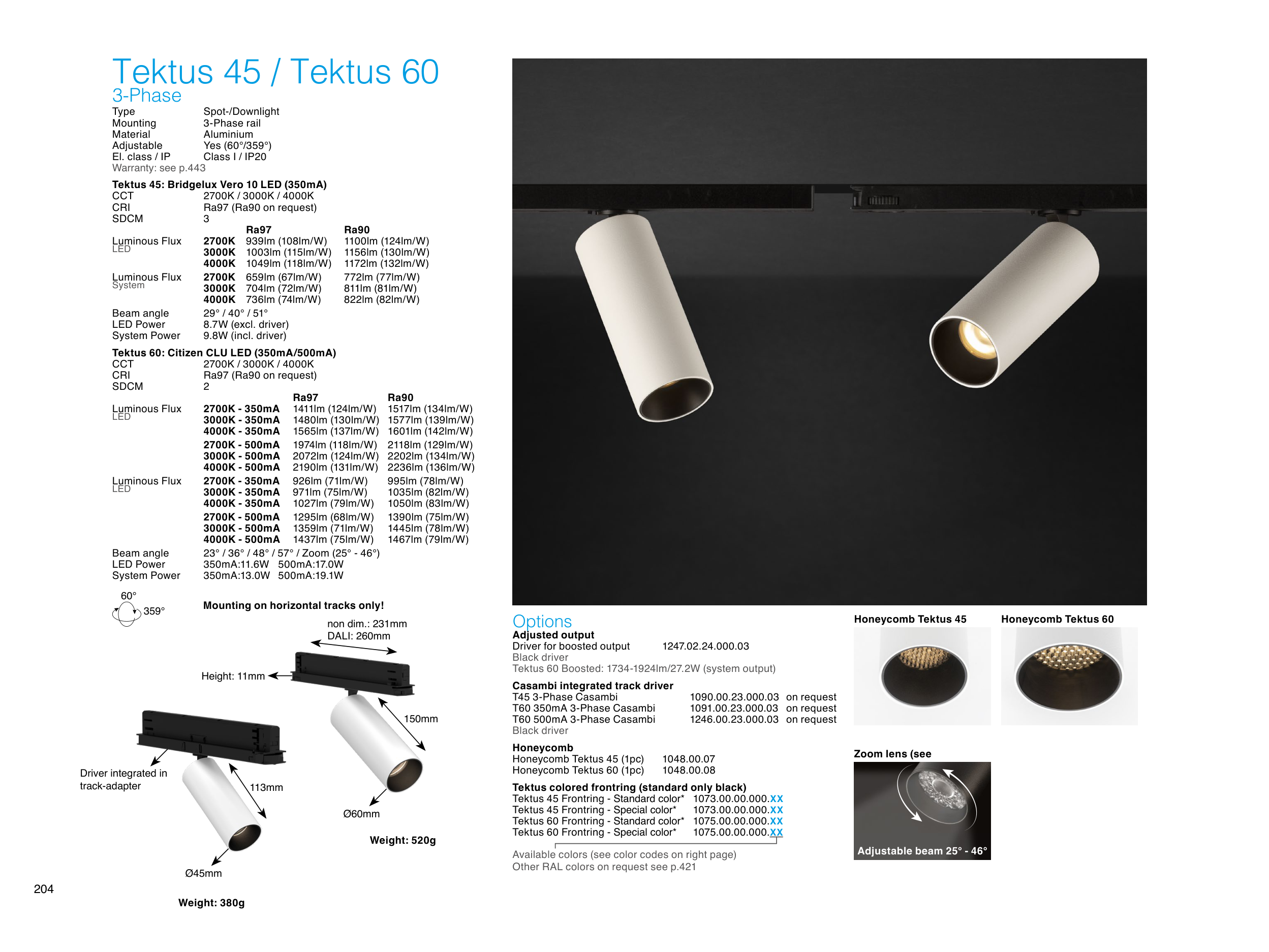

Tektus 45 / Tektus 60
3-Phase
359°
60°
Type
Spot-/Downlight
Mounting
3-Phase rail
Material
Aluminium
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 60: Citizen CLU LED (350mA/500mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K - 350mA 1411lm (124lm/W) 1517lm (134lm/W)
LED
3000K - 350mA 1480lm (130lm/W) 1577lm (139lm/W)
4000K - 350mA 1565lm (137lm/W) 1601lm (142lm/W)
2700K - 500mA 1974lm (118lm/W) 2118lm (129lm/W)
3000K - 500mA 2072lm (124lm/W) 2202lm (134lm/W)
4000K - 500mA 2190lm (131lm/W) 2236lm (136lm/W)
Luminous Flux
2700K - 350mA 926lm (71lm/W)
995lm (78lm/W)
LED
3000K - 350mA 971lm (75lm/W)
1035lm (82lm/W)
4000K - 350mA 1027lm (79lm/W) 1050lm (83lm/W)
2700K - 500mA 1295lm (68lm/W) 1390lm (75lm/W)
3000K - 500mA 1359lm (71lm/W)
1445lm (78lm/W)
4000K - 500mA 1437lm (75lm/W) 1467lm (79lm/W)
Beam angle
23° / 36° / 48° / 57° / Zoom (25° - 46°)
LED Power
350mA:11.6W 500mA:17.0W
System Power
350mA:13.0W 500mA:19.1W
Driver integrated in
track-adapter
113mm
Ø45mm
Height: 11mm
non dim.: 231mm
DALI: 260mm
Ø60mm
150mm
Weight: 380g
Weight: 520g
Options
Adjusted output
Driver for boosted output
1247.02.24.000.03
Black driver
Tektus 60 Boosted: 1734-1924lm/27.2W (system output)
Casambi integrated track driver
T45 3-Phase Casambi
1090.00.23.000.03 on request
T60 350mA 3-Phase Casambi
1091.00.23.000.03 on request
T60 500mA 3-Phase Casambi
1246.00.23.000.03 on request
Black driver
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Tektus colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes on right page)
Other RAL colors on request see p.421
Mounting on horizontal tracks only!
Honeycomb Tektus 60
Honeycomb Tektus 45
Zoom lens (see
Adjustable beam 25° - 46°
