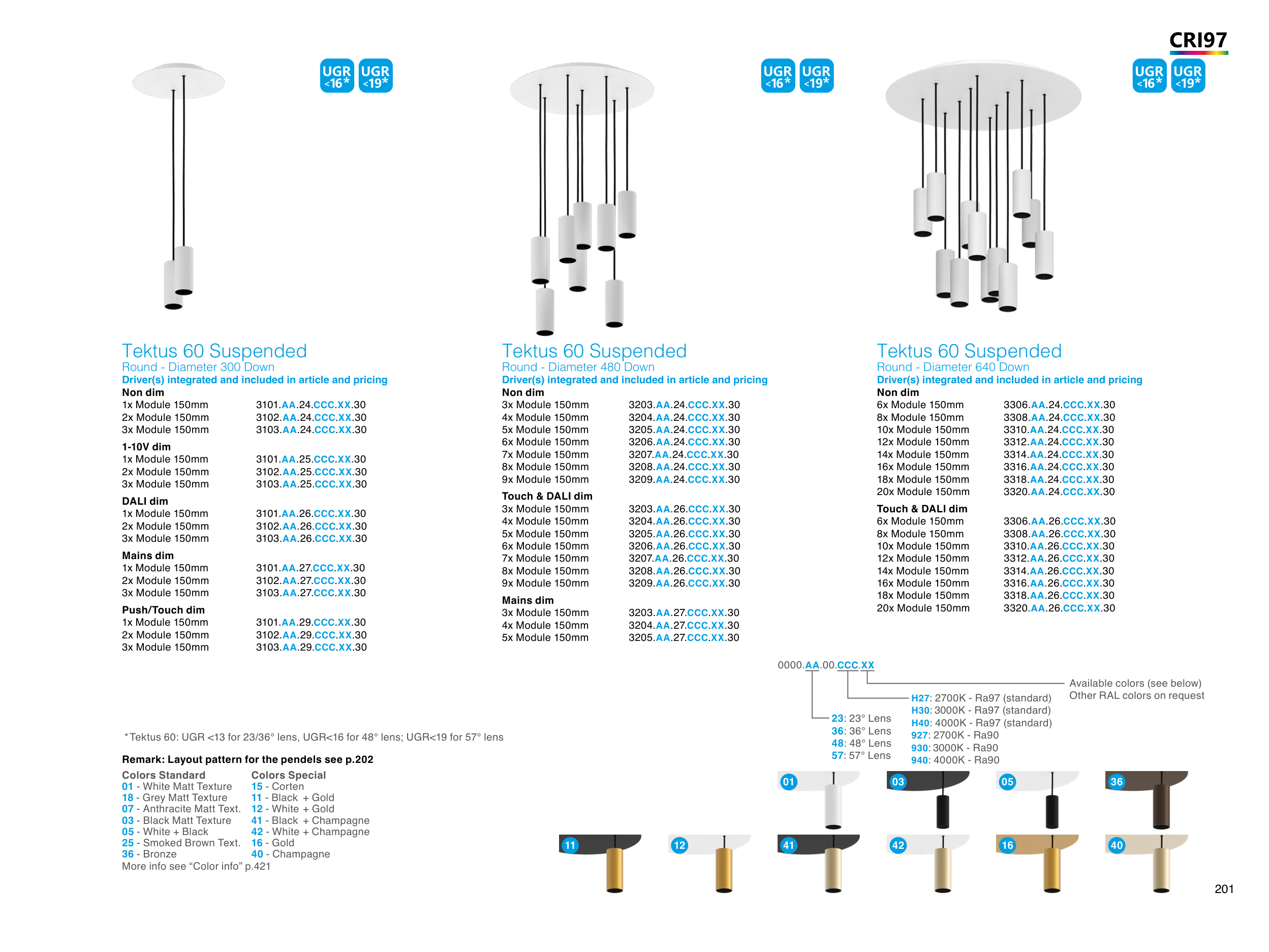

201
Tektus 60 Suspended
Round - Diameter 300 Down
Driver(s) integrated and included in article and pricing
Non dim
1x Module 150mm
3101.AA.24.CCC.XX.30
2x Module 150mm
3102.AA.24.CCC.XX.30
3x Module 150mm
3103.AA.24.CCC.XX.30
1-10V dim
1x Module 150mm
3101.AA.25.CCC.XX.30
2x Module 150mm
3102.AA.25.CCC.XX.30
3x Module 150mm
3103.AA.25.CCC.XX.30
DALI dim
1x Module 150mm
3101.AA.26.CCC.XX.30
2x Module 150mm
3102.AA.26.CCC.XX.30
3x Module 150mm
3103.AA.26.CCC.XX.30
Mains dim
1x Module 150mm
3101.AA.27.CCC.XX.30
2x Module 150mm
3102.AA.27.CCC.XX.30
3x Module 150mm
3103.AA.27.CCC.XX.30
Push/Touch dim
1x Module 150mm
3101.AA.29.CCC.XX.30
2x Module 150mm
3102.AA.29.CCC.XX.30
3x Module 150mm
3103.AA.29.CCC.XX.30
Tektus 60 Suspended
Round - Diameter 480 Down
Driver(s) integrated and included in article and pricing
Non dim
3x Module 150mm
3203.AA.24.CCC.XX.30
4x Module 150mm
3204.AA.24.CCC.XX.30
5x Module 150mm
3205.AA.24.CCC.XX.30
6x Module 150mm
3206.AA.24.CCC.XX.30
7x Module 150mm
3207.AA.24.CCC.XX.30
8x Module 150mm
3208.AA.24.CCC.XX.30
9x Module 150mm
3209.AA.24.CCC.XX.30
Touch & DALI dim
3x Module 150mm
3203.AA.26.CCC.XX.30
4x Module 150mm
3204.AA.26.CCC.XX.30
5x Module 150mm
3205.AA.26.CCC.XX.30
6x Module 150mm
3206.AA.26.CCC.XX.30
7x Module 150mm
3207.AA.26.CCC.XX.30
8x Module 150mm
3208.AA.26.CCC.XX.30
9x Module 150mm
3209.AA.26.CCC.XX.30
Mains dim
3x Module 150mm
3203.AA.27.CCC.XX.30
4x Module 150mm
3204.AA.27.CCC.XX.30
5x Module 150mm
3205.AA.27.CCC.XX.30
Tektus 60 Suspended
Round - Diameter 640 Down
Driver(s) integrated and included in article and pricing
Non dim
6x Module 150mm
3306.AA.24.CCC.XX.30
8x Module 150mm
3308.AA.24.CCC.XX.30
10x Module 150mm
3310.AA.24.CCC.XX.30
12x Module 150mm
3312.AA.24.CCC.XX.30
14x Module 150mm
3314.AA.24.CCC.XX.30
16x Module 150mm
3316.AA.24.CCC.XX.30
18x Module 150mm
3318.AA.24.CCC.XX.30
20x Module 150mm
3320.AA.24.CCC.XX.30
Touch & DALI dim
6x Module 150mm
3306.AA.26.CCC.XX.30
8x Module 150mm
3308.AA.26.CCC.XX.30
10x Module 150mm
3310.AA.26.CCC.XX.30
12x Module 150mm
3312.AA.26.CCC.XX.30
14x Module 150mm
3314.AA.26.CCC.XX.30
16x Module 150mm
3316.AA.26.CCC.XX.30
18x Module 150mm
3318.AA.26.CCC.XX.30
20x Module 150mm
3320.AA.26.CCC.XX.30
Remark: Layout pattern for the pendels see p.202
01
11
12
03
41
05
42
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
* Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
H27: 2700K - Ra97 (standard)
H30: 3000K - Ra97 (standard)
H40: 4000K - Ra97 (standard)
927: 2700K - Ra90
930: 3000K - Ra90
940: 4000K - Ra90
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
CRI97
