198

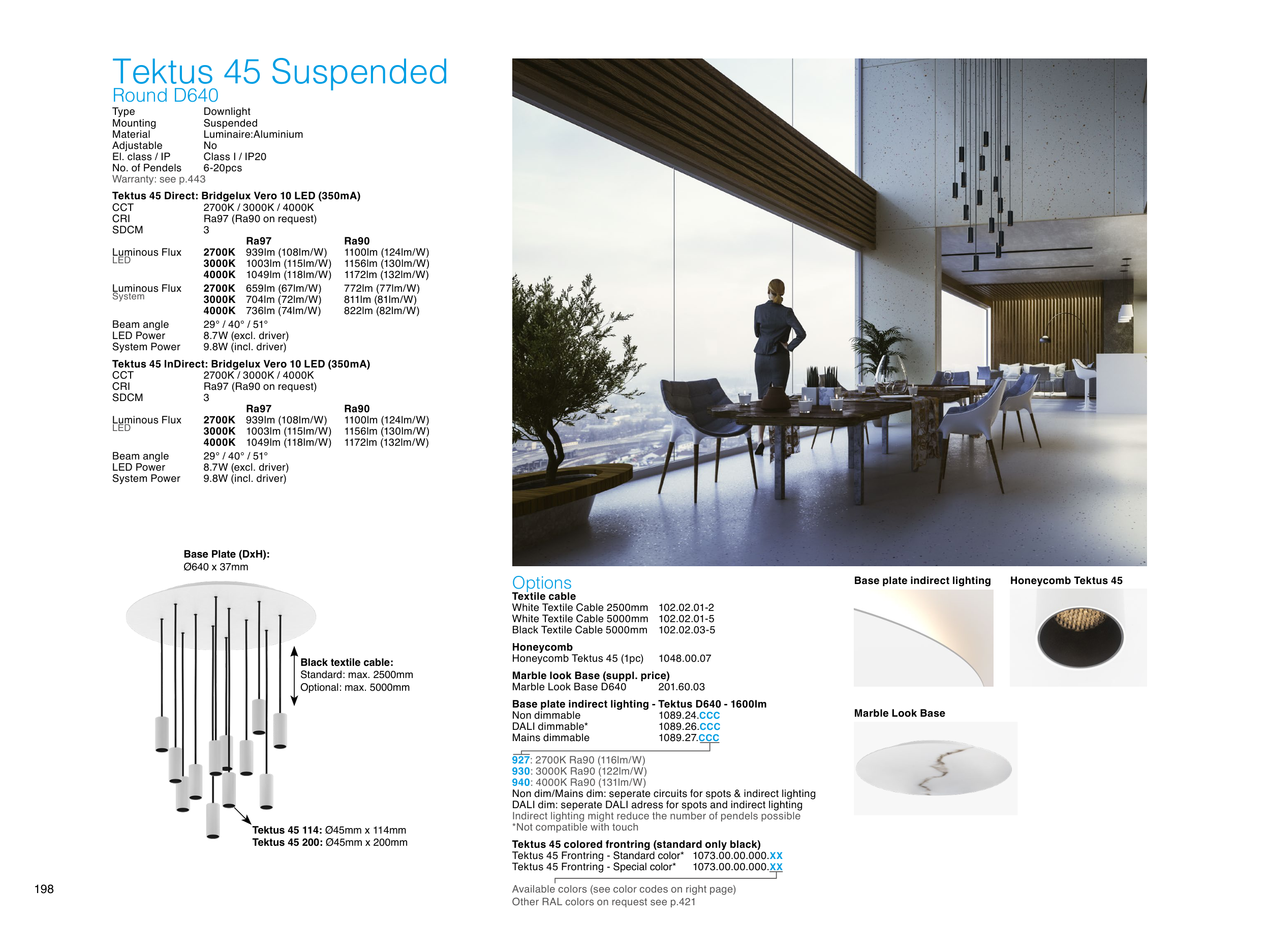

Tektus 45 Suspended
Round D640
Type
Downlight
Mounting
Suspended
Material
Luminaire:Aluminium
Adjustable
No
El. class / IP
Class I / IP20
No. of Pendels
6-20pcs
Warranty: see p.443
Tektus 45 Direct: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 45 InDirect: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Options
Textile cable
White Textile Cable 2500mm 102.02.01-2
White Textile Cable 5000mm 102.02.01-5
Black Textile Cable 5000mm 102.02.03-5
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Marble look Base (suppl. price)
Marble Look Base D640
201.60.03
Base plate indirect lighting - Tektus D640 - 1600lm
Non dimmable
1089.24.CCC
DALI dimmable*
1089.26.CCC
Mains dimmable
1089.27.CCC
927: 2700K Ra90 (116lm/W)
930: 3000K Ra90 (122lm/W)
940: 4000K Ra90 (131lm/W)
Non dim/Mains dim: seperate circuits for spots & indirect lighting
DALI dim: seperate DALI adress for spots and indirect lighting
Indirect lighting might reduce the number of pendels possible
*Not compatible with touch
Tektus 45 colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Available colors (see color codes on right page)
Other RAL colors on request see p.421
Tektus 45 114: Ø45mm x 114mm
Tektus 45 200: Ø45mm x 200mm
Black textile cable:
Standard: max. 2500mm
Optional: max. 5000mm
Base Plate (DxH):
Ø640 x 37mm
Base plate indirect lighting
Marble Look Base
Honeycomb Tektus 45
