195

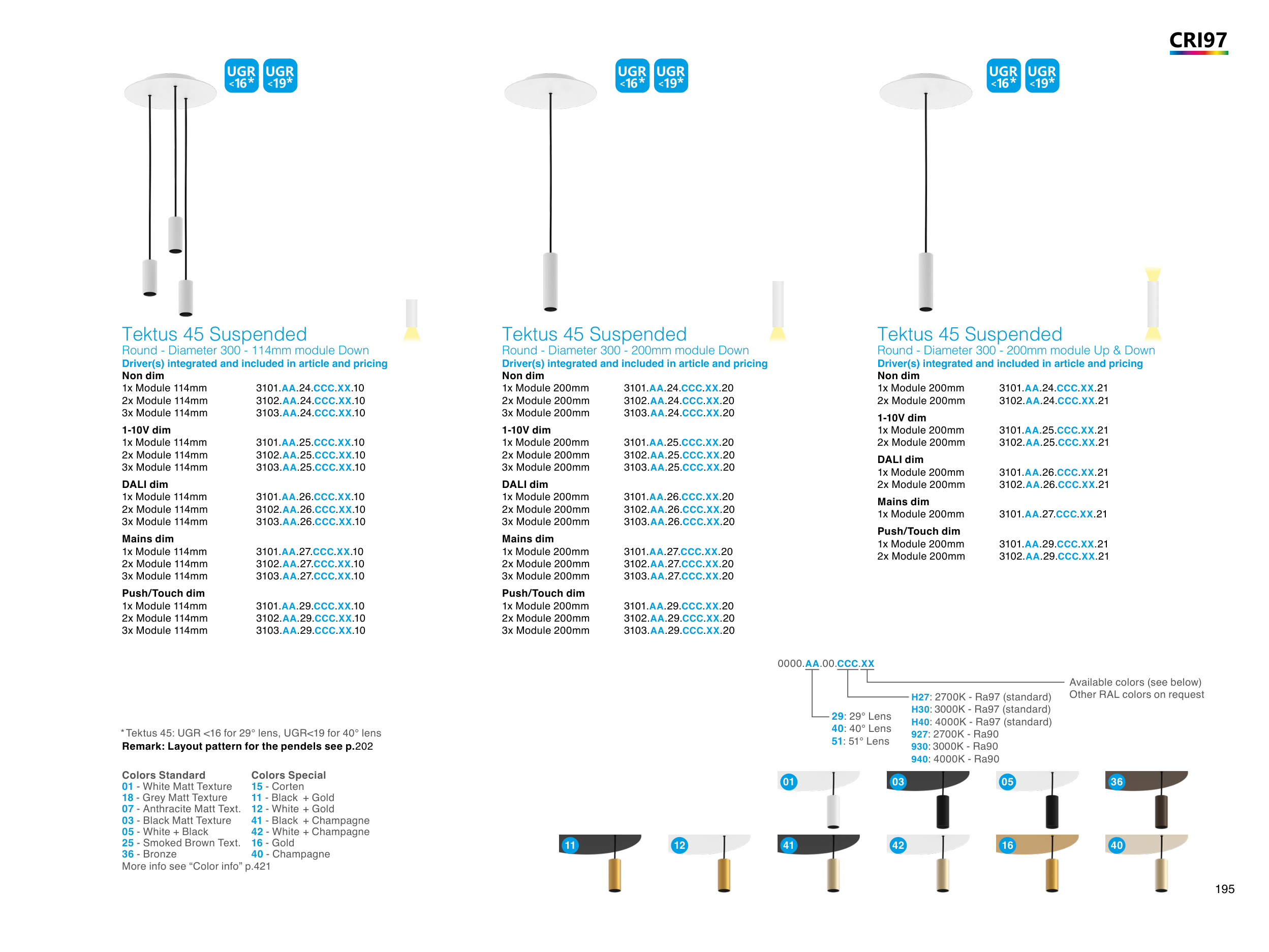

Tektus 45 Suspended
Round - Diameter 300 - 200mm module Up & Down
Driver(s) integrated and included in article and pricing
Non dim
1x Module 200mm
3101.AA.24.CCC.XX.21
2x Module 200mm
3102.AA.24.CCC.XX.21
1-10V dim
1x Module 200mm
3101.AA.25.CCC.XX.21
2x Module 200mm
3102.AA.25.CCC.XX.21
DALI dim
1x Module 200mm
3101.AA.26.CCC.XX.21
2x Module 200mm
3102.AA.26.CCC.XX.21
Mains dim
1x Module 200mm
3101.AA.27.CCC.XX.21
Push/Touch dim
1x Module 200mm
3101.AA.29.CCC.XX.21
2x Module 200mm
3102.AA.29.CCC.XX.21
Tektus 45 Suspended
Round - Diameter 300 - 200mm module Down
Driver(s) integrated and included in article and pricing
Non dim
1x Module 200mm
3101.AA.24.CCC.XX.20
2x Module 200mm
3102.AA.24.CCC.XX.20
3x Module 200mm
3103.AA.24.CCC.XX.20
1-10V dim
1x Module 200mm
3101.AA.25.CCC.XX.20
2x Module 200mm
3102.AA.25.CCC.XX.20
3x Module 200mm
3103.AA.25.CCC.XX.20
DALI dim
1x Module 200mm
3101.AA.26.CCC.XX.20
2x Module 200mm
3102.AA.26.CCC.XX.20
3x Module 200mm
3103.AA.26.CCC.XX.20
Mains dim
1x Module 200mm
3101.AA.27.CCC.XX.20
2x Module 200mm
3102.AA.27.CCC.XX.20
3x Module 200mm
3103.AA.27.CCC.XX.20
Push/Touch dim
1x Module 200mm
3101.AA.29.CCC.XX.20
2x Module 200mm
3102.AA.29.CCC.XX.20
3x Module 200mm
3103.AA.29.CCC.XX.20
Tektus 45 Suspended
Round - Diameter 300 - 114mm module Down
Driver(s) integrated and included in article and pricing
Non dim
1x Module 114mm
3101.AA.24.CCC.XX.10
2x Module 114mm
3102.AA.24.CCC.XX.10
3x Module 114mm
3103.AA.24.CCC.XX.10
1-10V dim
1x Module 114mm
3101.AA.25.CCC.XX.10
2x Module 114mm
3102.AA.25.CCC.XX.10
3x Module 114mm
3103.AA.25.CCC.XX.10
DALI dim
1x Module 114mm
3101.AA.26.CCC.XX.10
2x Module 114mm
3102.AA.26.CCC.XX.10
3x Module 114mm
3103.AA.26.CCC.XX.10
Mains dim
1x Module 114mm
3101.AA.27.CCC.XX.10
2x Module 114mm
3102.AA.27.CCC.XX.10
3x Module 114mm
3103.AA.27.CCC.XX.10
Push/Touch dim
1x Module 114mm
3101.AA.29.CCC.XX.10
2x Module 114mm
3102.AA.29.CCC.XX.10
3x Module 114mm
3103.AA.29.CCC.XX.10
Remark: Layout pattern for the pendels see p.202
01
11
12
03
41
05
42
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
H27: 2700K - Ra97 (standard)
H30: 3000K - Ra97 (standard)
H40: 4000K - Ra97 (standard)
927: 2700K - Ra90
930: 3000K - Ra90
940: 4000K - Ra90
29: 29° Lens
40: 40° Lens
51: 51° Lens
CRI97
