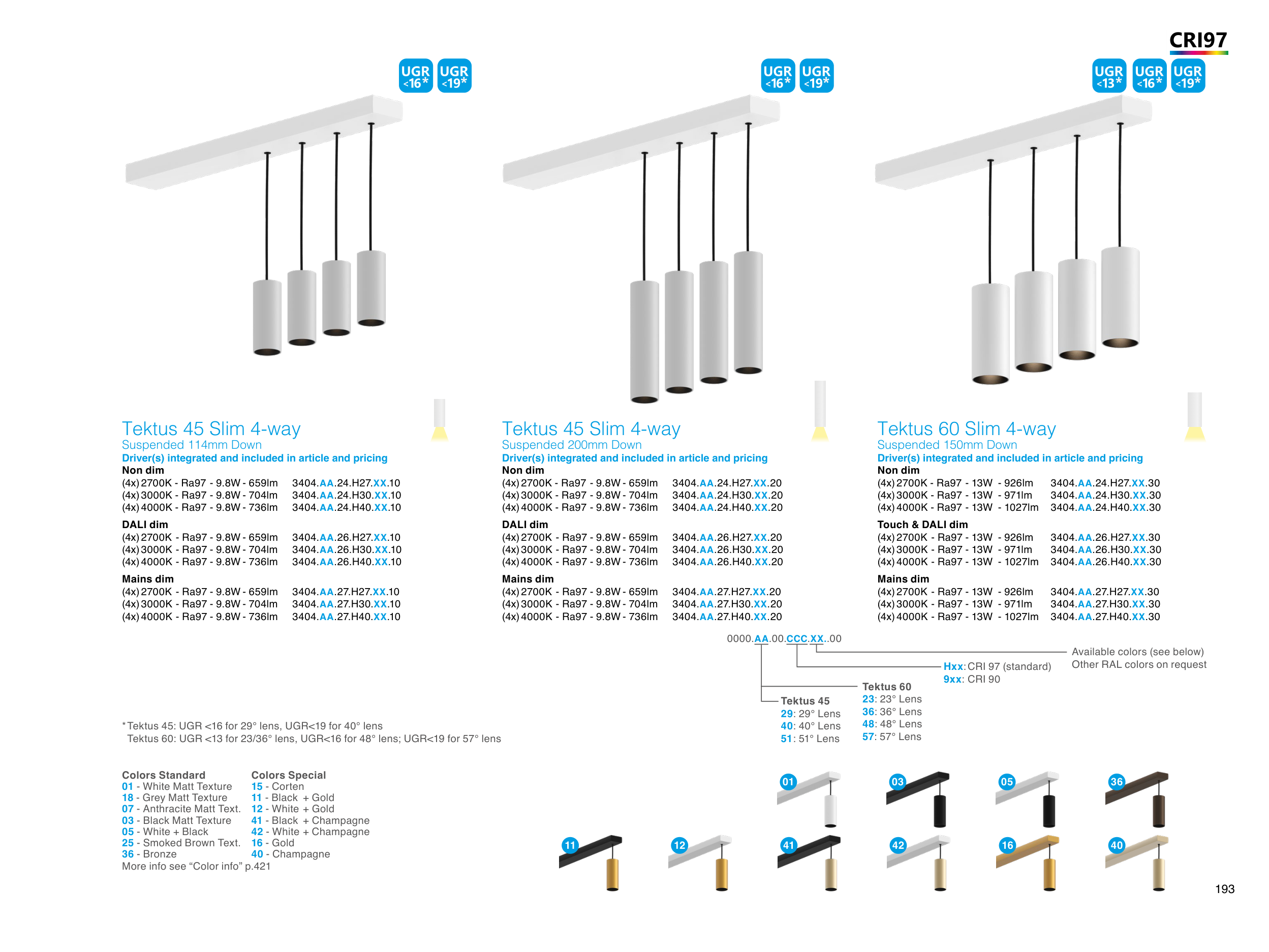

Tektus 45 Slim 4-way
Suspended 114mm Down
Driver(s) integrated and included in article and pricing
Non dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.24.H27.XX.10
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.24.H30.XX.10
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.24.H40.XX.10
DALI dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.26.H27.XX.10
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.26.H30.XX.10
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.26.H40.XX.10
Mains dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.27.H27.XX.10
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.27.H30.XX.10
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.27.H40.XX.10
Tektus 60 Slim 4-way
Suspended 150mm Down
Driver(s) integrated and included in article and pricing
Non dim
(4x) 2700K - Ra97 - 13W - 926lm
3404.AA.24.H27.XX.30
(4x) 3000K - Ra97 - 13W - 971lm
3404.AA.24.H30.XX.30
(4x) 4000K - Ra97 - 13W - 1027lm
3404.AA.24.H40.XX.30
Touch & DALI dim
(4x) 2700K - Ra97 - 13W - 926lm
3404.AA.26.H27.XX.30
(4x) 3000K - Ra97 - 13W - 971lm
3404.AA.26.H30.XX.30
(4x) 4000K - Ra97 - 13W - 1027lm
3404.AA.26.H40.XX.30
Mains dim
(4x) 2700K - Ra97 - 13W - 926lm
3404.AA.27.H27.XX.30
(4x) 3000K - Ra97 - 13W - 971lm
3404.AA.27.H30.XX.30
(4x) 4000K - Ra97 - 13W - 1027lm
3404.AA.27.H40.XX.30
Tektus 45 Slim 4-way
Suspended 200mm Down
Driver(s) integrated and included in article and pricing
Non dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.24.H27.XX.20
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.24.H30.XX.20
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.24.H40.XX.20
DALI dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.26.H27.XX.20
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.26.H30.XX.20
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.26.H40.XX.20
Mains dim
(4x) 2700K - Ra97 - 9.8W - 659lm
3404.AA.27.H27.XX.20
(4x) 3000K - Ra97 - 9.8W - 704lm
3404.AA.27.H30.XX.20
(4x) 4000K - Ra97 - 9.8W - 736lm
3404.AA.27.H40.XX.20
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
0000.AA.00.CCC.XX..00
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
01
11
12
03
41
05
42
16
36
40
