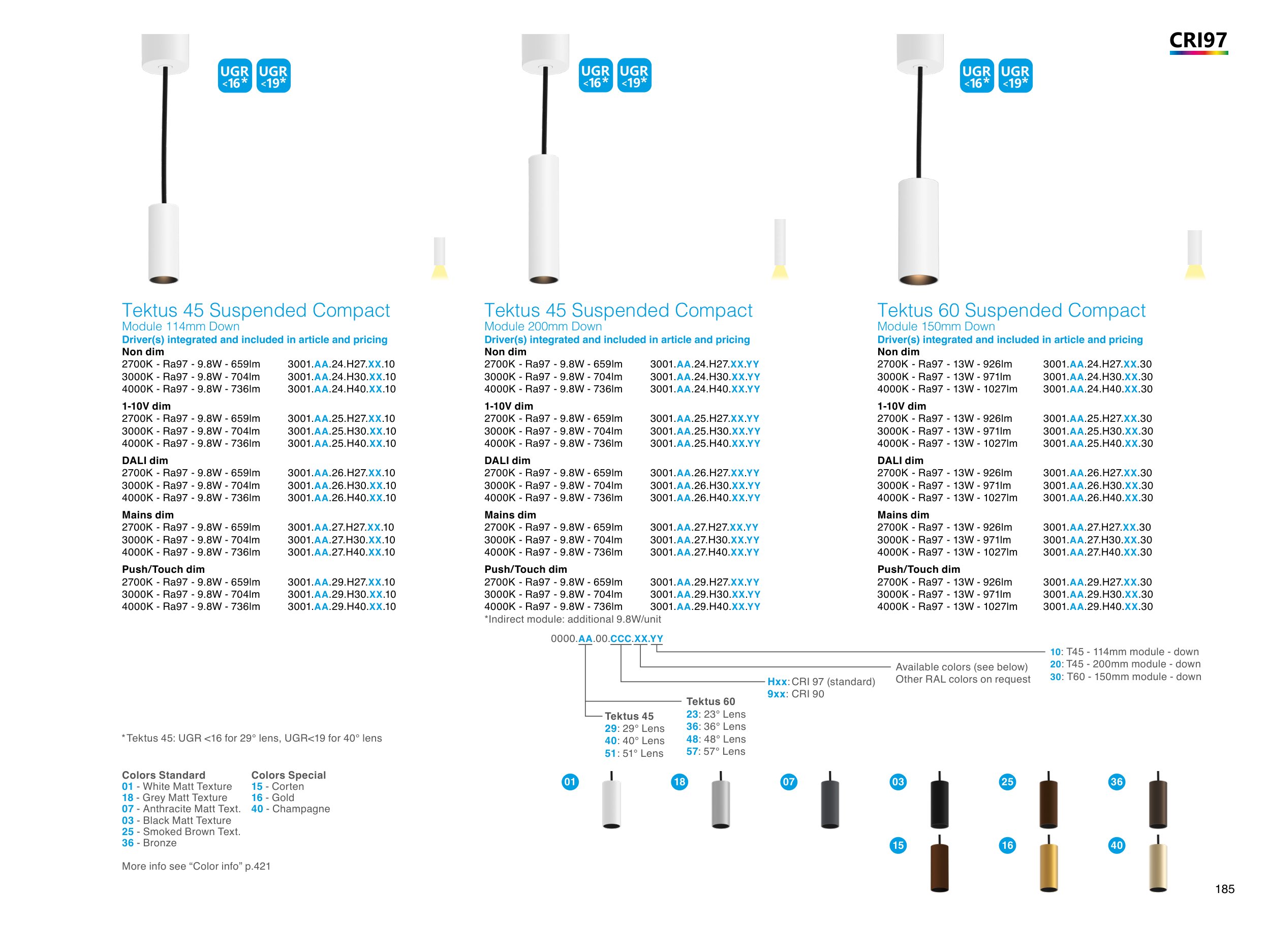

Tektus 45 Suspended Compact
Module 114mm Down
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.24.H27.XX.10
3000K - Ra97 - 9.8W - 704lm
3001.AA.24.H30.XX.10
4000K - Ra97 - 9.8W - 736lm
3001.AA.24.H40.XX.10
1-10V dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.25.H27.XX.10
3000K - Ra97 - 9.8W - 704lm
3001.AA.25.H30.XX.10
4000K - Ra97 - 9.8W - 736lm
3001.AA.25.H40.XX.10
DALI dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.26.H27.XX.10
3000K - Ra97 - 9.8W - 704lm
3001.AA.26.H30.XX.10
4000K - Ra97 - 9.8W - 736lm
3001.AA.26.H40.XX.10
Mains dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.27.H27.XX.10
3000K - Ra97 - 9.8W - 704lm
3001.AA.27.H30.XX.10
4000K - Ra97 - 9.8W - 736lm
3001.AA.27.H40.XX.10
Push/Touch dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.29.H27.XX.10
3000K - Ra97 - 9.8W - 704lm
3001.AA.29.H30.XX.10
4000K - Ra97 - 9.8W - 736lm
3001.AA.29.H40.XX.10
Tektus 45 Suspended Compact
Module 200mm Down
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.24.H27.XX.YY
3000K - Ra97 - 9.8W - 704lm
3001.AA.24.H30.XX.YY
4000K - Ra97 - 9.8W - 736lm
3001.AA.24.H40.XX.YY
1-10V dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.25.H27.XX.YY
3000K - Ra97 - 9.8W - 704lm
3001.AA.25.H30.XX.YY
4000K - Ra97 - 9.8W - 736lm
3001.AA.25.H40.XX.YY
DALI dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.26.H27.XX.YY
3000K - Ra97 - 9.8W - 704lm
3001.AA.26.H30.XX.YY
4000K - Ra97 - 9.8W - 736lm
3001.AA.26.H40.XX.YY
Mains dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.27.H27.XX.YY
3000K - Ra97 - 9.8W - 704lm
3001.AA.27.H30.XX.YY
4000K - Ra97 - 9.8W - 736lm
3001.AA.27.H40.XX.YY
Push/Touch dim
2700K - Ra97 - 9.8W - 659lm
3001.AA.29.H27.XX.YY
3000K - Ra97 - 9.8W - 704lm
3001.AA.29.H30.XX.YY
4000K - Ra97 - 9.8W - 736lm
3001.AA.29.H40.XX.YY
*Indirect module: additional 9.8W/unit
Tektus 60 Suspended Compact
Module 150mm Down
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 13W - 926lm
3001.AA.24.H27.XX.30
3000K - Ra97 - 13W - 971lm
3001.AA.24.H30.XX.30
4000K - Ra97 - 13W - 1027lm
3001.AA.24.H40.XX.30
1-10V dim
2700K - Ra97 - 13W - 926lm
3001.AA.25.H27.XX.30
3000K - Ra97 - 13W - 971lm
3001.AA.25.H30.XX.30
4000K - Ra97 - 13W - 1027lm
3001.AA.25.H40.XX.30
DALI dim
2700K - Ra97 - 13W - 926lm
3001.AA.26.H27.XX.30
3000K - Ra97 - 13W - 971lm
3001.AA.26.H30.XX.30
4000K - Ra97 - 13W - 1027lm
3001.AA.26.H40.XX.30
Mains dim
2700K - Ra97 - 13W - 926lm
3001.AA.27.H27.XX.30
3000K - Ra97 - 13W - 971lm
3001.AA.27.H30.XX.30
4000K - Ra97 - 13W - 1027lm
3001.AA.27.H40.XX.30
Push/Touch dim
2700K - Ra97 - 13W - 926lm
3001.AA.29.H27.XX.30
3000K - Ra97 - 13W - 971lm
3001.AA.29.H30.XX.30
4000K - Ra97 - 13W - 1027lm
3001.AA.29.H40.XX.30
01
15
18
07
03
25
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
10: T45 - 114mm module - down
20: T45 - 200mm module - down
30: T60 - 150mm module - down
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
0000.AA.00.CCC.XX.YY
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
