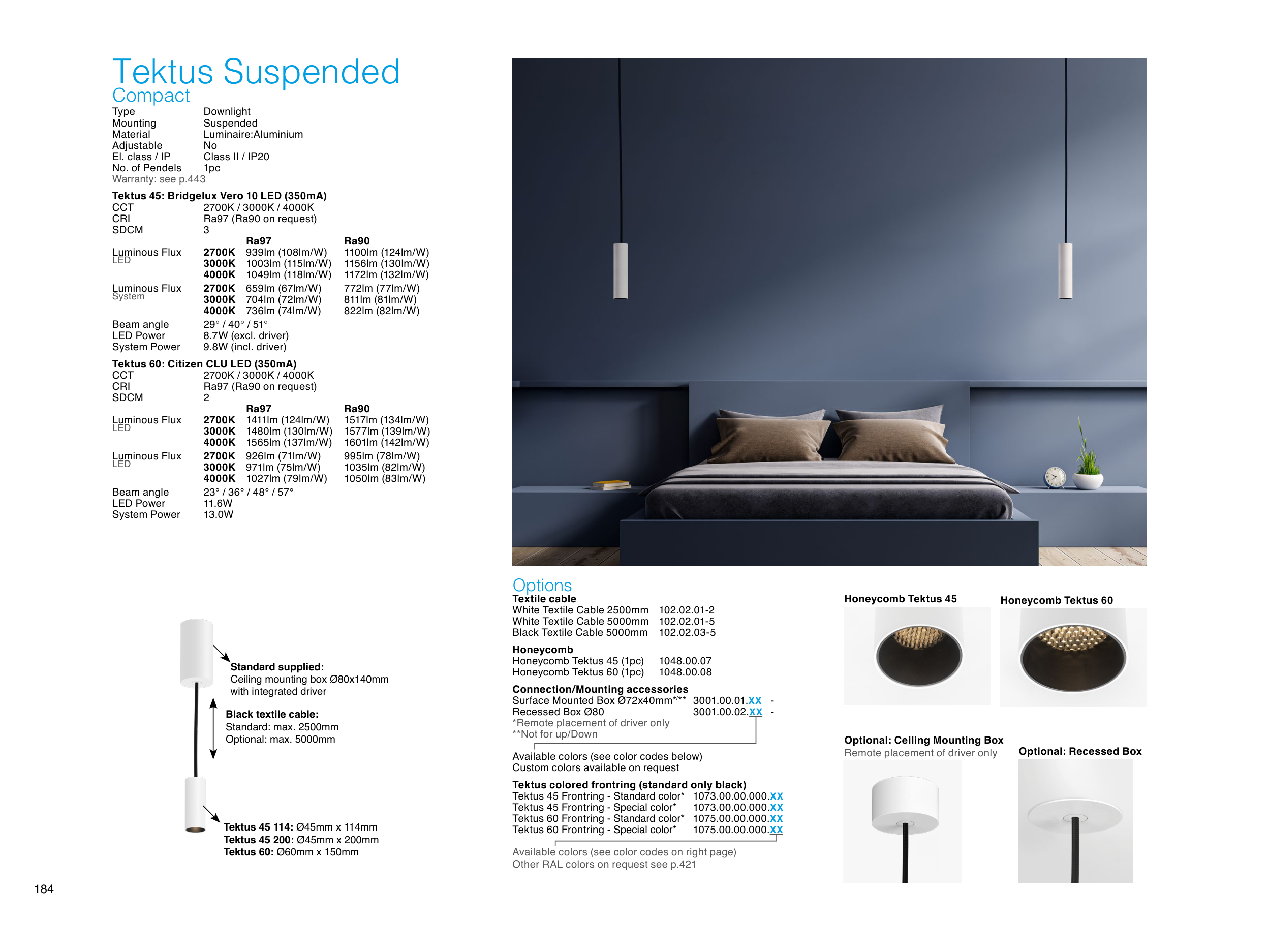

Tektus Suspended
Compact
Type
Downlight
Mounting
Suspended
Material
Luminaire:Aluminium
Adjustable
No
El. class / IP
Class II / IP20
No. of Pendels
1pc
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 60: Citizen CLU LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K 1411lm (124lm/W)
1517lm (134lm/W)
LED
3000K 1480lm (130lm/W) 1577lm (139lm/W)
4000K 1565lm (137lm/W) 1601lm (142lm/W)
Luminous Flux
2700K 926lm (71lm/W)
995lm (78lm/W)
LED
3000K 971lm (75lm/W)
1035lm (82lm/W)
4000K 1027lm (79lm/W)
1050lm (83lm/W)
Beam angle
23° / 36° / 48° / 57°
LED Power
11.6W
System Power
13.0W
Options
Textile cable
White Textile Cable 2500mm 102.02.01-2
White Textile Cable 5000mm 102.02.01-5
Black Textile Cable 5000mm 102.02.03-5
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Connection/Mounting accessories
Surface Mounted Box Ø72x40mm*/** 3001.00.01.XX -
Recessed Box Ø80
3001.00.02.XX -
*Remote placement of driver only
**Not for up/Down
Available colors (see color codes below)
Custom colors available on request
Tektus colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes on right page)
Other RAL colors on request see p.421
Optional: Ceiling Mounting Box
Remote placement of driver only
Optional: Recessed Box
Honeycomb Tektus 45
Tektus 45 114: Ø45mm x 114mm
Tektus 45 200: Ø45mm x 200mm
Tektus 60: Ø60mm x 150mm
Standard supplied:
Ceiling mounting box Ø80x140mm
with integrated driver
Honeycomb Tektus 60
Black textile cable:
Standard: max. 2500mm
Optional: max. 5000mm
