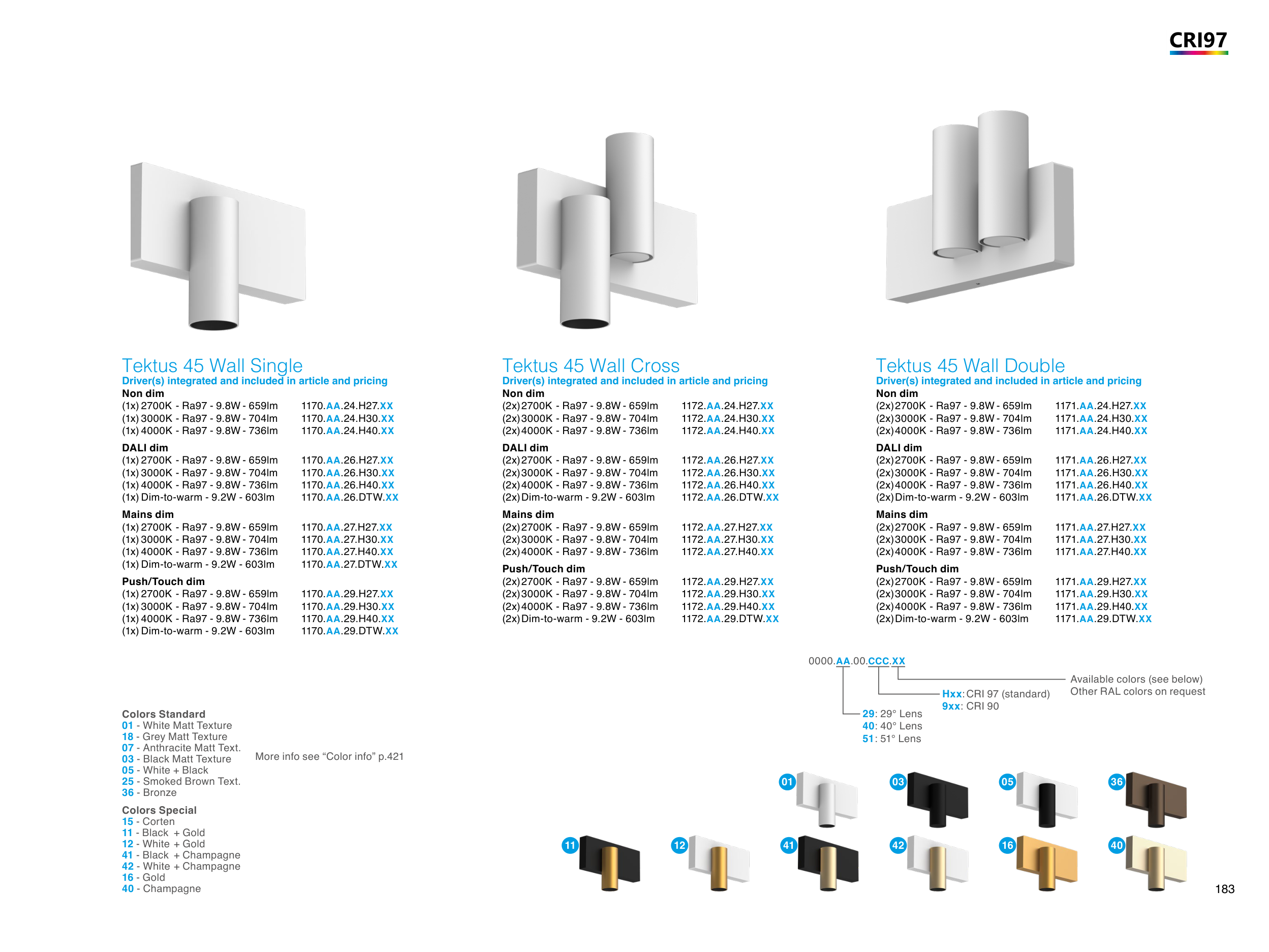

Tektus 45 Wall Single
Driver(s) integrated and included in article and pricing
Non dim
(1x) 2700K - Ra97 - 9.8W - 659lm
1170.AA.24.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1170.AA.24.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1170.AA.24.H40.XX
DALI dim
(1x) 2700K - Ra97 - 9.8W - 659lm
1170.AA.26.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1170.AA.26.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1170.AA.26.H40.XX
(1x) Dim-to-warm - 9.2W - 603lm
1170.AA.26.DTW.XX
Mains dim
(1x) 2700K - Ra97 - 9.8W - 659lm
1170.AA.27.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1170.AA.27.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1170.AA.27.H40.XX
(1x) Dim-to-warm - 9.2W - 603lm
1170.AA.27.DTW.XX
Push/Touch dim
(1x) 2700K - Ra97 - 9.8W - 659lm
1170.AA.29.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1170.AA.29.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1170.AA.29.H40.XX
(1x) Dim-to-warm - 9.2W - 603lm
1170.AA.29.DTW.XX
Tektus 45 Wall Double
Driver(s) integrated and included in article and pricing
Non dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1171.AA.24.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1171.AA.24.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1171.AA.24.H40.XX
DALI dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1171.AA.26.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1171.AA.26.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1171.AA.26.H40.XX
(2x) Dim-to-warm - 9.2W - 603lm
1171.AA.26.DTW.XX
Mains dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1171.AA.27.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1171.AA.27.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1171.AA.27.H40.XX
Push/Touch dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1171.AA.29.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1171.AA.29.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1171.AA.29.H40.XX
(2x) Dim-to-warm - 9.2W - 603lm
1171.AA.29.DTW.XX
Tektus 45 Wall Cross
Driver(s) integrated and included in article and pricing
Non dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1172.AA.24.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1172.AA.24.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1172.AA.24.H40.XX
DALI dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1172.AA.26.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1172.AA.26.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1172.AA.26.H40.XX
(2x) Dim-to-warm - 9.2W - 603lm
1172.AA.26.DTW.XX
Mains dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1172.AA.27.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1172.AA.27.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1172.AA.27.H40.XX
Push/Touch dim
(2x) 2700K - Ra97 - 9.8W - 659lm
1172.AA.29.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1172.AA.29.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1172.AA.29.H40.XX
(2x) Dim-to-warm - 9.2W - 603lm
1172.AA.29.DTW.XX
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
