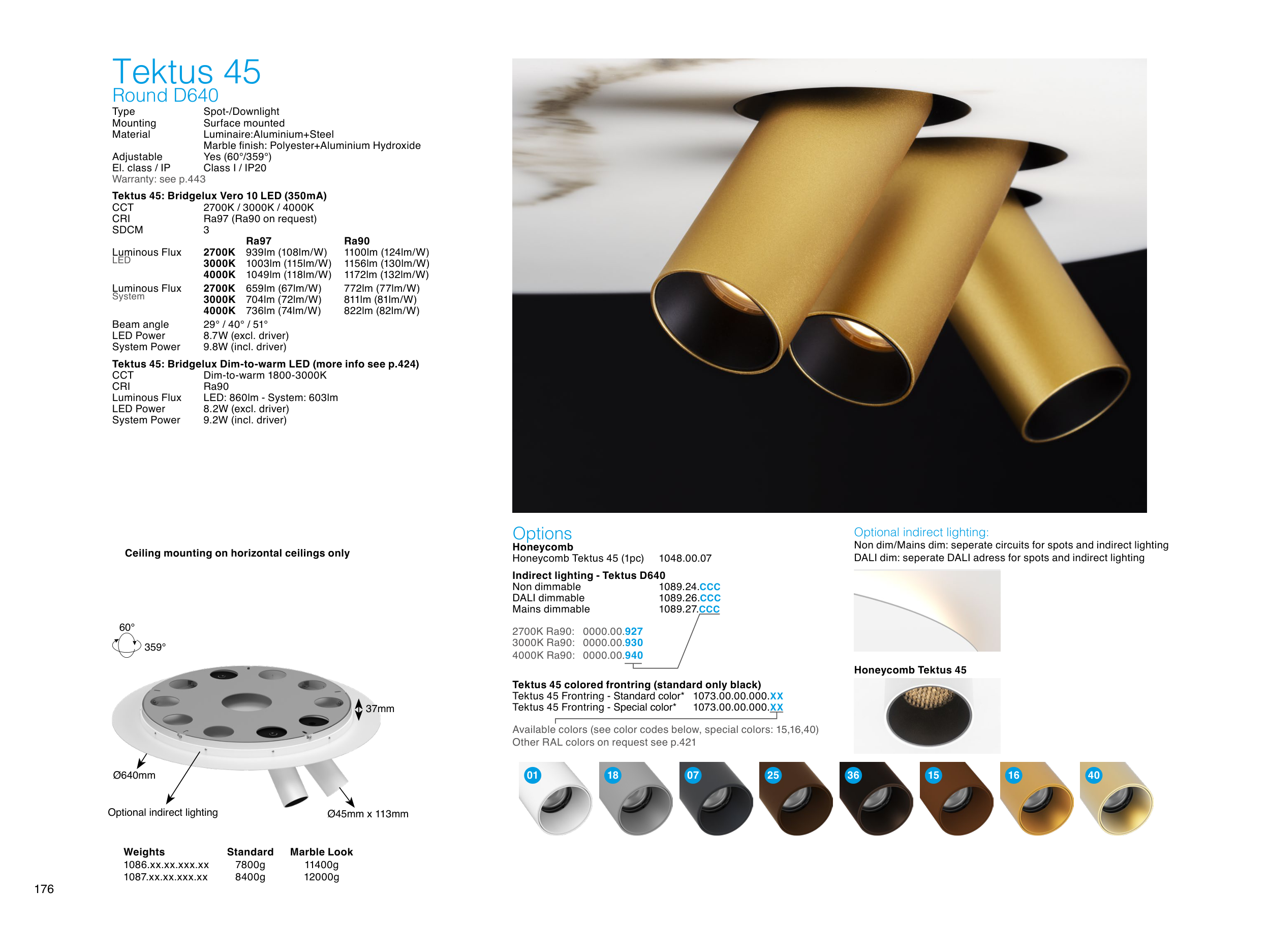

Tektus 45
Round D640
359°
60°
Type
Spot-/Downlight
Mounting
Surface mounted
Material
Luminaire:Aluminium+Steel
Marble finish: Polyester+Aluminium Hydroxide
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 45: Bridgelux Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 603lm
LED Power
8.2W (excl. driver)
System Power
9.2W (incl. driver)
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Indirect lighting - Tektus D640
Non dimmable
1089.24.CCC
DALI dimmable
1089.26.CCC
Mains dimmable
1089.27.CCC
2700K Ra90: 0000.00.927
3000K Ra90: 0000.00.930
4000K Ra90: 0000.00.940
Tektus 45 colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
Ø45mm x 113mm
37mm
Ø640mm
Optional indirect lighting
Weights
Standard
Marble Look
1086.xx.xx.xxx.xx
7800g
11400g
1087.xx.xx.xxx.xx
8400g
12000g
Ceiling mounting on horizontal ceilings only
01
15
18
07
25
16
36
40
Optional indirect lighting:
Non dim/Mains dim: seperate circuits for spots and indirect lighting
DALI dim: seperate DALI adress for spots and indirect lighting
Honeycomb Tektus 45
