170
359°
60°

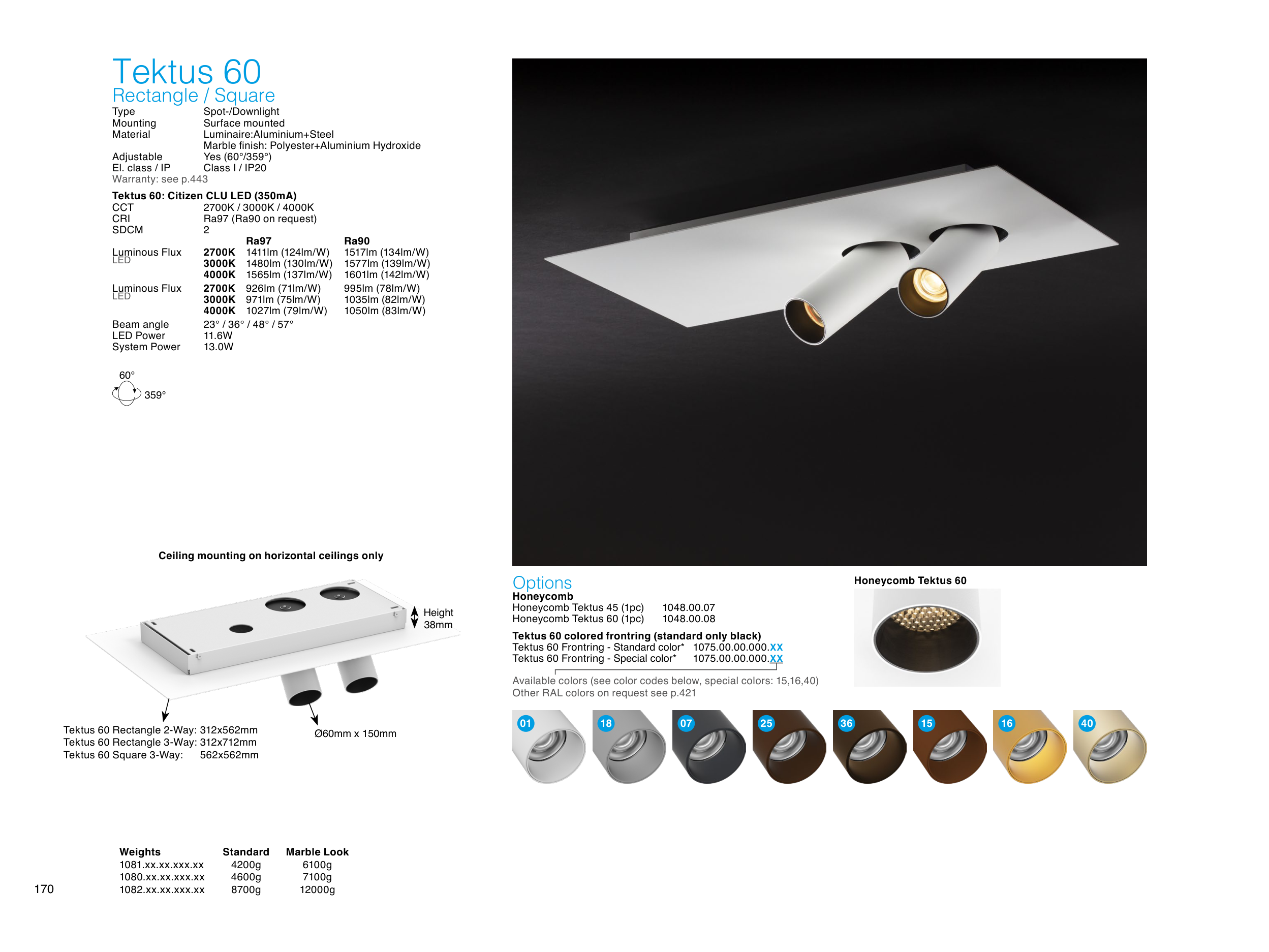

Tektus 60
Rectangle / Square
Type
Spot-/Downlight
Mounting
Surface mounted
Material
Luminaire:Aluminium+Steel
Marble finish: Polyester+Aluminium Hydroxide
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 60: Citizen CLU LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K 1411lm (124lm/W)
1517lm (134lm/W)
LED
3000K 1480lm (130lm/W) 1577lm (139lm/W)
4000K 1565lm (137lm/W) 1601lm (142lm/W)
Luminous Flux
2700K 926lm (71lm/W)
995lm (78lm/W)
LED
3000K 971lm (75lm/W)
1035lm (82lm/W)
4000K 1027lm (79lm/W)
1050lm (83lm/W)
Beam angle
23° / 36° / 48° / 57°
LED Power
11.6W
System Power
13.0W
Ø60mm x 150mm
Height
38mm
Weights
Standard
Marble Look
1081.xx.xx.xxx.xx
4200g
6100g
1080.xx.xx.xxx.xx
4600g
7100g
1082.xx.xx.xxx.xx
8700g
12000g
Tektus 60 Rectangle 2-Way: 312x562mm
Tektus 60 Rectangle 3-Way: 312x712mm
Tektus 60 Square 3-Way:
562x562mm
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Tektus 60 colored frontring (standard only black)
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
Ceiling mounting on horizontal ceilings only
Honeycomb Tektus 60
01
15
18
07
25
16
36
40
