168

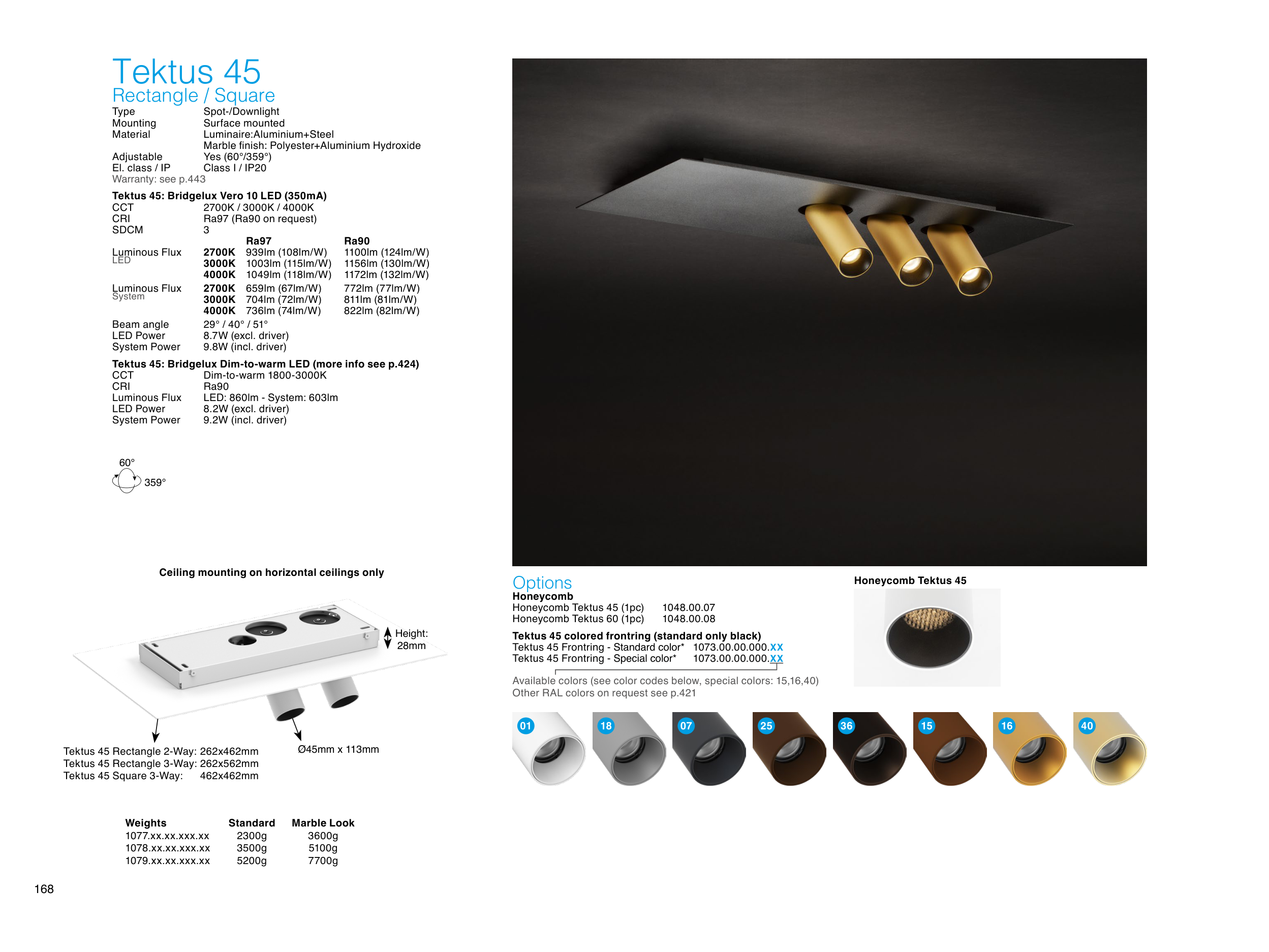

Tektus 45
359°
60°
Rectangle / Square
Type
Spot-/Downlight
Mounting
Surface mounted
Material
Luminaire:Aluminium+Steel
Marble finish: Polyester+Aluminium Hydroxide
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 45: Bridgelux Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 603lm
LED Power
8.2W (excl. driver)
System Power
9.2W (incl. driver)
Ø45mm x 113mm
Height:
28mm
Tektus 45 Rectangle 2-Way: 262x462mm
Tektus 45 Rectangle 3-Way: 262x562mm
Tektus 45 Square 3-Way:
462x462mm
Weights
Standard
Marble Look
1077.xx.xx.xxx.xx
2300g
3600g
1078.xx.xx.xxx.xx
3500g
5100g
1079.xx.xx.xxx.xx
5200g
7700g
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Tektus 45 colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
Ceiling mounting on horizontal ceilings only
Honeycomb Tektus 45
01
15
18
07
25
16
36
40
