165

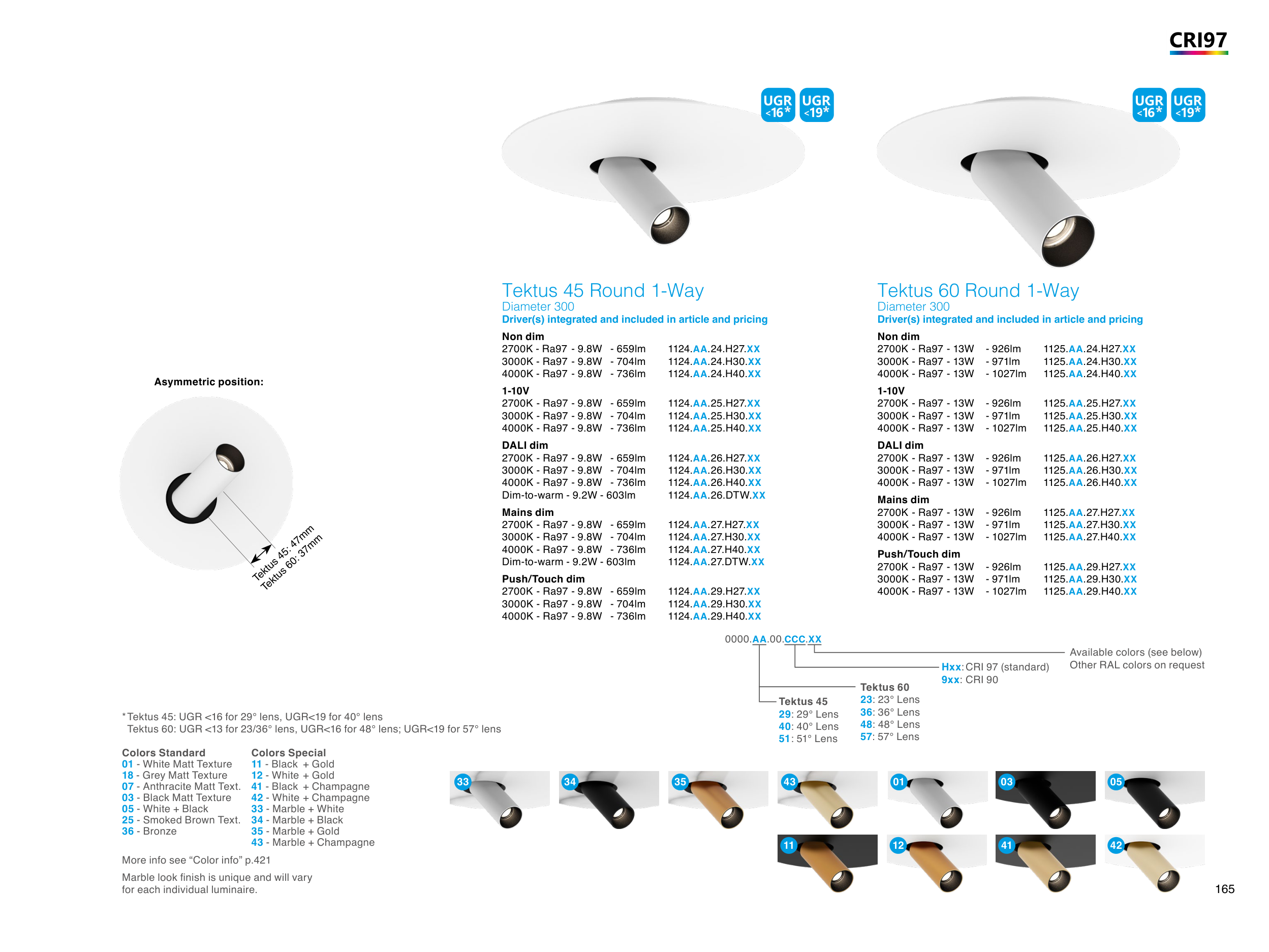

Tektus 45 Round 1-Way
Diameter 300
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 659lm
1124.AA.24.H27.XX
3000K - Ra97 - 9.8W - 704lm
1124.AA.24.H30.XX
4000K - Ra97 - 9.8W - 736lm
1124.AA.24.H40.XX
1-10V
2700K - Ra97 - 9.8W - 659lm
1124.AA.25.H27.XX
3000K - Ra97 - 9.8W - 704lm
1124.AA.25.H30.XX
4000K - Ra97 - 9.8W - 736lm
1124.AA.25.H40.XX
DALI dim
2700K - Ra97 - 9.8W - 659lm
1124.AA.26.H27.XX
3000K - Ra97 - 9.8W - 704lm
1124.AA.26.H30.XX
4000K - Ra97 - 9.8W - 736lm
1124.AA.26.H40.XX
Dim-to-warm - 9.2W - 603lm
1124.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 9.8W - 659lm
1124.AA.27.H27.XX
3000K - Ra97 - 9.8W - 704lm
1124.AA.27.H30.XX
4000K - Ra97 - 9.8W - 736lm
1124.AA.27.H40.XX
Dim-to-warm - 9.2W - 603lm
1124.AA.27.DTW.XX
Push/Touch dim
2700K - Ra97 - 9.8W - 659lm
1124.AA.29.H27.XX
3000K - Ra97 - 9.8W - 704lm
1124.AA.29.H30.XX
4000K - Ra97 - 9.8W - 736lm
1124.AA.29.H40.XX
Tektus 60 Round 1-Way
Diameter 300
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 13W
- 926lm
1125.AA.24.H27.XX
3000K - Ra97 - 13W
- 971lm
1125.AA.24.H30.XX
4000K - Ra97 - 13W
- 1027lm
1125.AA.24.H40.XX
1-10V
2700K - Ra97 - 13W
- 926lm
1125.AA.25.H27.XX
3000K - Ra97 - 13W
- 971lm
1125.AA.25.H30.XX
4000K - Ra97 - 13W
- 1027lm
1125.AA.25.H40.XX
DALI dim
2700K - Ra97 - 13W
- 926lm
1125.AA.26.H27.XX
3000K - Ra97 - 13W
- 971lm
1125.AA.26.H30.XX
4000K - Ra97 - 13W
- 1027lm
1125.AA.26.H40.XX
Mains dim
2700K - Ra97 - 13W
- 926lm
1125.AA.27.H27.XX
3000K - Ra97 - 13W
- 971lm
1125.AA.27.H30.XX
4000K - Ra97 - 13W
- 1027lm
1125.AA.27.H40.XX
Push/Touch dim
2700K - Ra97 - 13W
- 926lm
1125.AA.29.H27.XX
3000K - Ra97 - 13W
- 971lm
1125.AA.29.H30.XX
4000K - Ra97 - 13W
- 1027lm
1125.AA.29.H40.XX
Asymmetric position:
Tektus 45: 47mm
Tektus 60: 37mm
01
41
11
35
43
34
33
42
12
03
05
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
33 - Marble + White
34 - Marble + Black
35 - Marble + Gold
43 - Marble + Champagne
More info see “Color info” p.421
Marble look finish is unique and will vary
for each individual luminaire.
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
