158
Type
Downlight
Mounting
Ceiling Mounted
Material
Aluminium
Adjustable
Yes (90°/359°)
El. class / IP
Class I / IP20
Incl. protective glass
Warranty: see p.443
Bridgelux Vero 18 LED
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 2206lm (116lm/W) 2585lm (135lm/W)
LED
3000K 2357lm (124lm/W) 2604lm (136lm/W)
4000K 2552lm (133lm/W) 2755lm (143lm/W)
Luminous Flux
2700K 1774lm (83lm/W)
2096lm (94lm/W)
System
3000K 1896lm (89lm/W)
2112lm (95lm/W)
4000K 2053lm (95lm/W)
2234lm (101lm/W)
Beam angle
22° / 45° / 58°
LED Power
19.0W (excl. driver)
System Power
21.6W (incl. driver)
359°
90°

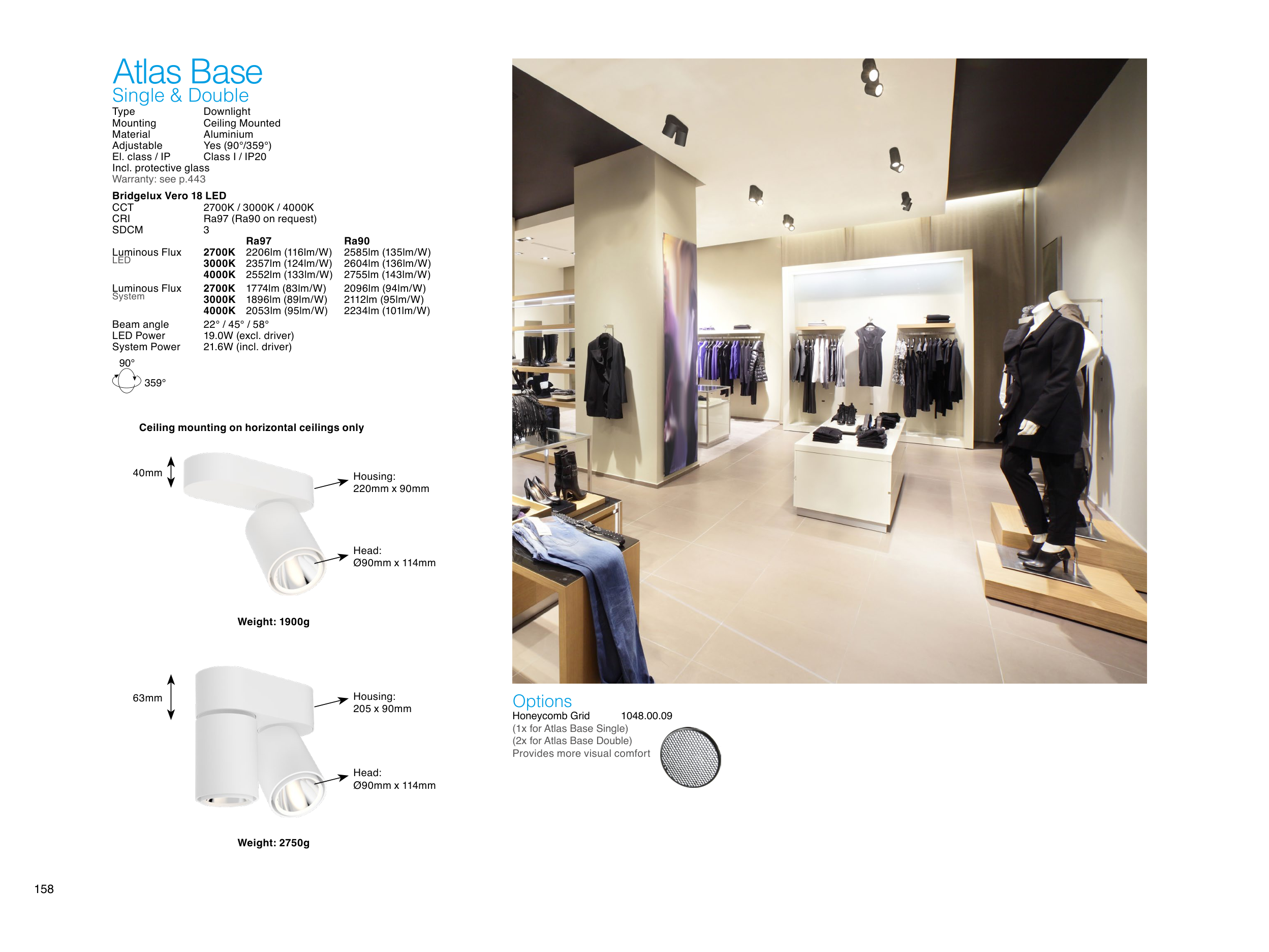

Atlas Base
63mm
Weight: 2750g
Housing:
205 x 90mm
Head:
Ø90mm x 114mm
Housing:
220mm x 90mm
40mm
Head:
Ø90mm x 114mm
Weight: 1900g
Options
Honeycomb Grid
1048.00.09
(1x for Atlas Base Single)
(2x for Atlas Base Double)
Provides more visual comfort
Single & Double
Ceiling mounting on horizontal ceilings only
