154

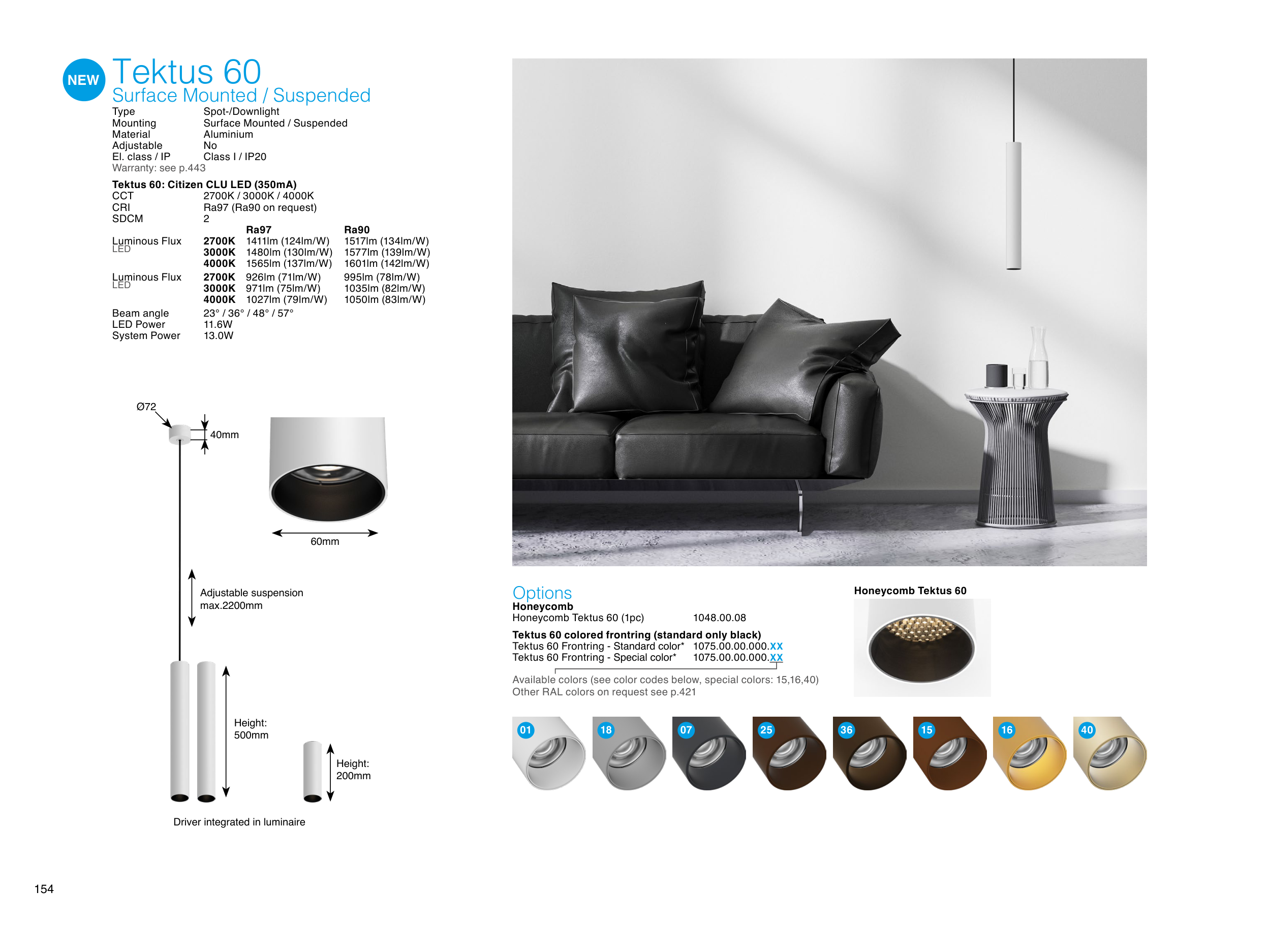

Tektus 60
Surface Mounted / Suspended
Options
Honeycomb
Honeycomb Tektus 60 (1pc)
1048.00.08
Tektus 60 colored frontring (standard only black)
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
Type
Spot-/Downlight
Mounting
Surface Mounted / Suspended
Material
Aluminium
Adjustable
No
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 60: Citizen CLU LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K 1411lm (124lm/W)
1517lm (134lm/W)
LED
3000K 1480lm (130lm/W) 1577lm (139lm/W)
4000K 1565lm (137lm/W) 1601lm (142lm/W)
Luminous Flux
2700K 926lm (71lm/W)
995lm (78lm/W)
LED
3000K 971lm (75lm/W)
1035lm (82lm/W)
4000K 1027lm (79lm/W)
1050lm (83lm/W)
Beam angle
23° / 36° / 48° / 57°
LED Power
11.6W
System Power
13.0W
60mm
Height:
500mm
Height:
200mm
Driver integrated in luminaire
Ø72
40mm
Adjustable suspension
max.2200mm
Honeycomb Tektus 60
01
15
18
07
25
16
36
40
NEW
