152

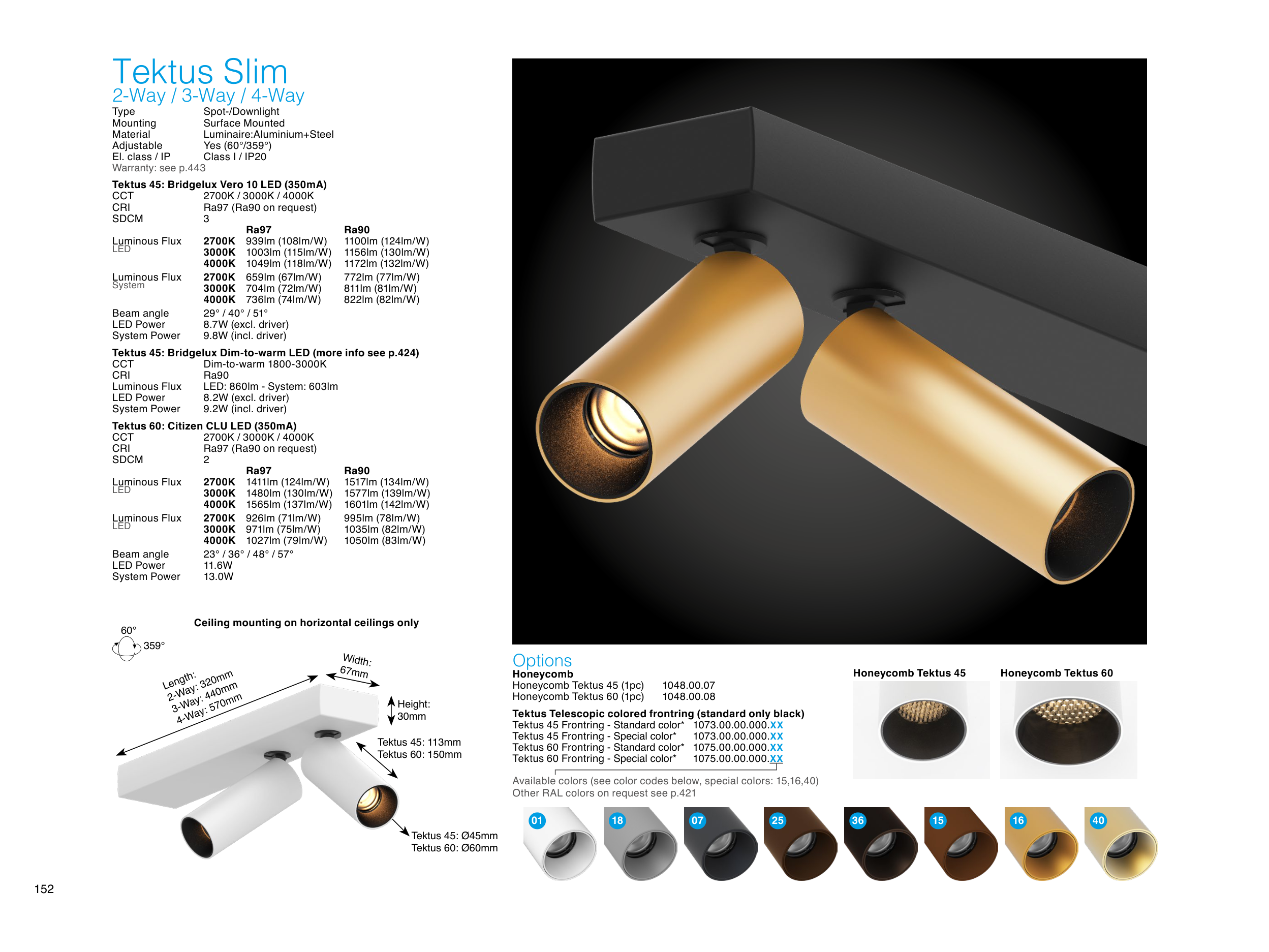

Tektus Slim
Height:
30mm
Length:
2-Way: 320mm
3-Way: 440mm
4-Way: 570mm
Width:
67mm
Tektus 45: 113mm
Tektus 60: 150mm
Tektus 45: Ø45mm
Tektus 60: Ø60mm
359°
60°
Type
Spot-/Downlight
Mounting
Surface Mounted
Material
Luminaire:Aluminium+Steel
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 45: Bridgelux Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 603lm
LED Power
8.2W (excl. driver)
System Power
9.2W (incl. driver)
Tektus 60: Citizen CLU LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K 1411lm (124lm/W)
1517lm (134lm/W)
LED
3000K 1480lm (130lm/W) 1577lm (139lm/W)
4000K 1565lm (137lm/W) 1601lm (142lm/W)
Luminous Flux
2700K 926lm (71lm/W)
995lm (78lm/W)
LED
3000K 971lm (75lm/W)
1035lm (82lm/W)
4000K 1027lm (79lm/W)
1050lm (83lm/W)
Beam angle
23° / 36° / 48° / 57°
LED Power
11.6W
System Power
13.0W
2-Way / 3-Way / 4-Way
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Tektus Telescopic colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Tektus 60 Frontring - Standard color* 1075.00.00.000.XX
Tektus 60 Frontring - Special color*
1075.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
Ceiling mounting on horizontal ceilings only
Honeycomb Tektus 60
Honeycomb Tektus 45
01
15
18
07
25
16
36
40
