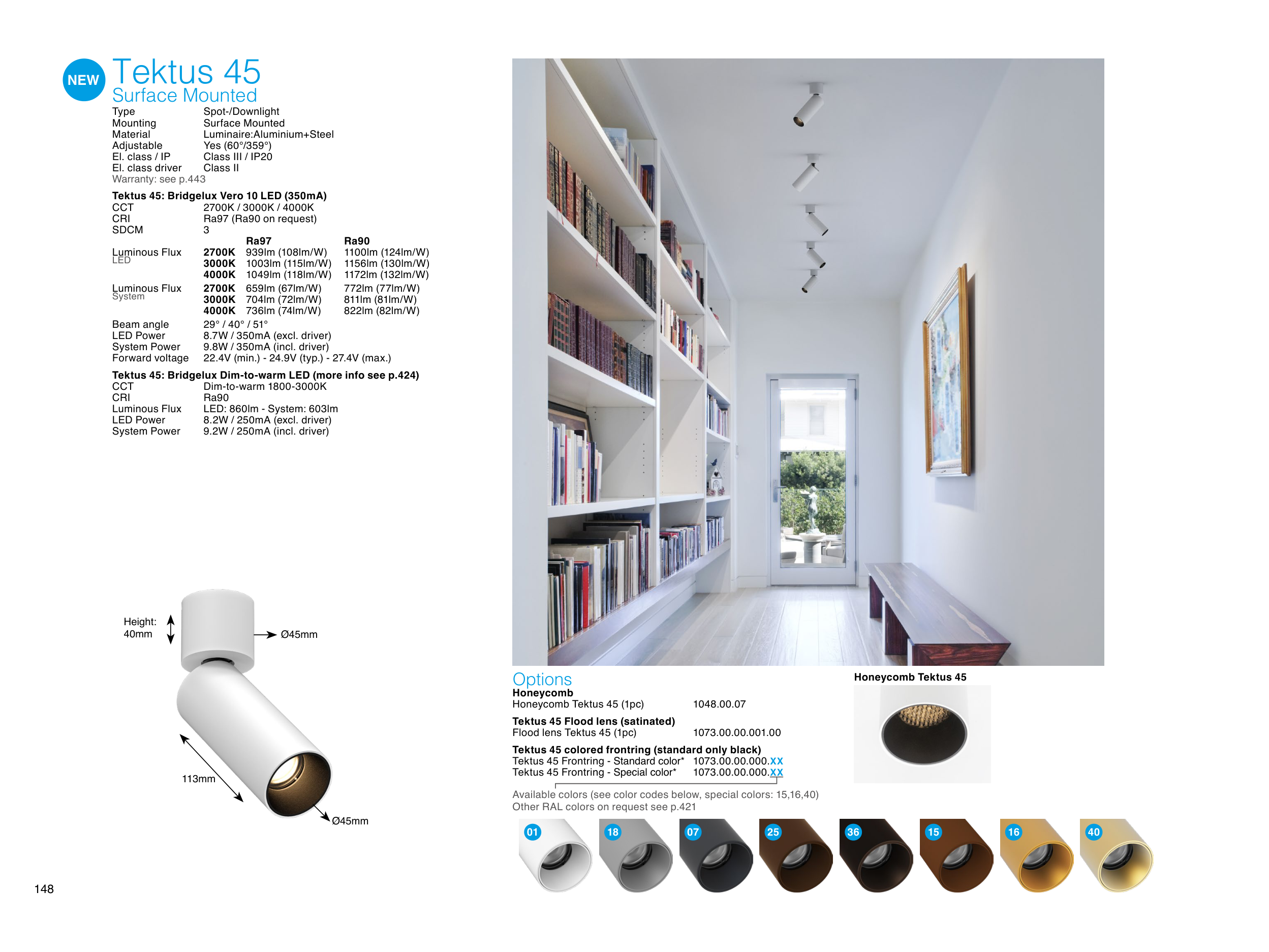

Tektus 45
Surface Mounted
Type
Spot-/Downlight
Mounting
Surface Mounted
Material
Luminaire:Aluminium+Steel
Adjustable
Yes (60°/359°)
El. class / IP
Class III / IP20
El. class driver
Class II
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W / 350mA (excl. driver)
System Power
9.8W / 350mA (incl. driver)
Forward voltage
22.4V (min.) - 24.9V (typ.) - 27.4V (max.)
Tektus 45: Bridgelux Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 603lm
LED Power
8.2W / 250mA (excl. driver)
System Power
9.2W / 250mA (incl. driver)
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Tektus 45 Flood lens (satinated)
Flood lens Tektus 45 (1pc)
1073.00.00.001.00
Tektus 45 colored frontring (standard only black)
Tektus 45 Frontring - Standard color* 1073.00.00.000.XX
Tektus 45 Frontring - Special color*
1073.00.00.000.XX
Available colors (see color codes below, special colors: 15,16,40)
Other RAL colors on request see p.421
01
15
18
07
25
16
36
40
Honeycomb Tektus 45
Height:
40mm
113mm
Ø45mm
Ø45mm
NEW
