145

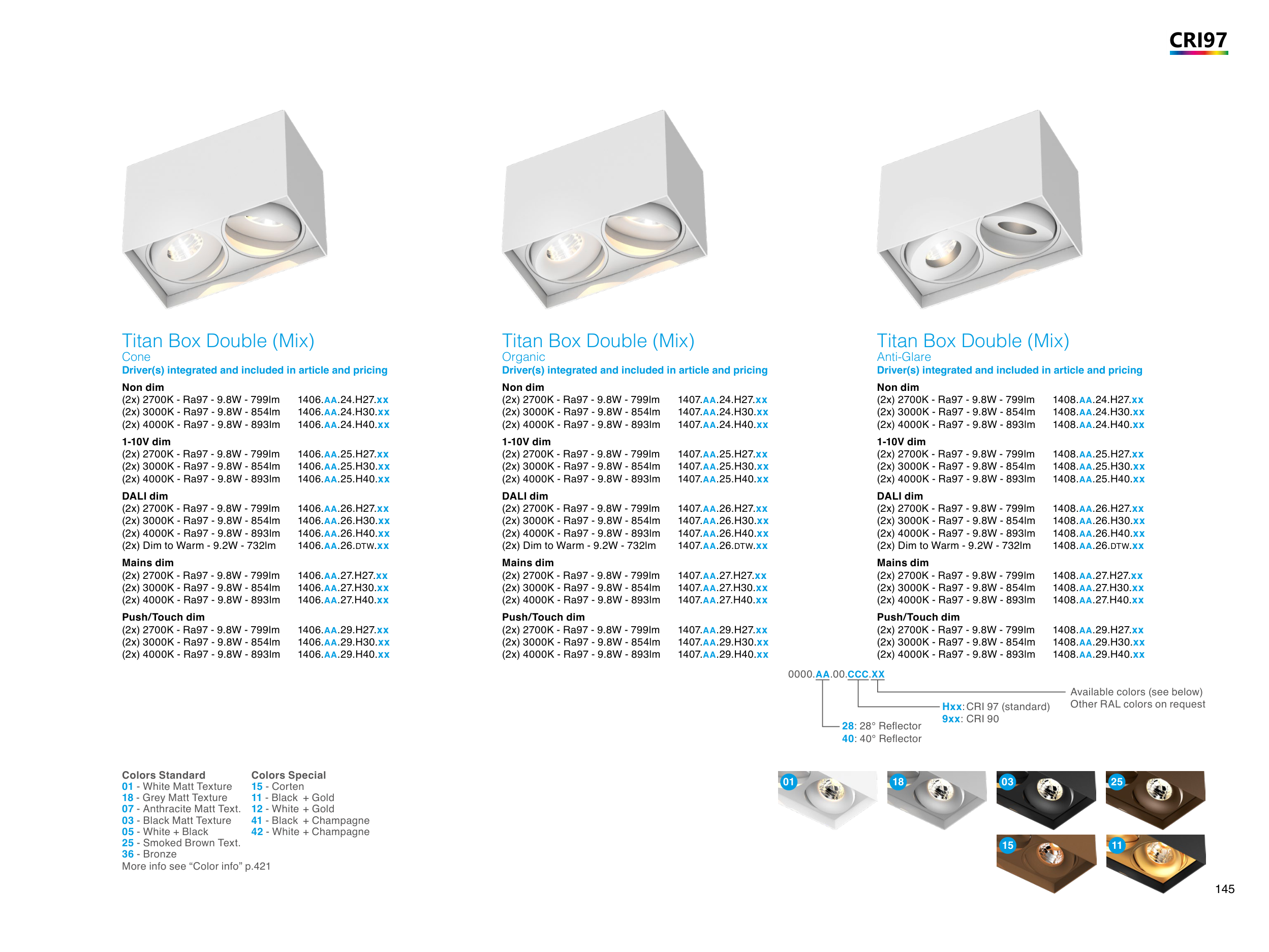

Titan Box Double (Mix)
Organic
Driver(s) integrated and included in article and pricing
Non dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1407.AA.24.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1407.AA.24.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1407.AA.24.H40.xx
1-10V dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1407.AA.25.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1407.AA.25.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1407.AA.25.H40.xx
DALI dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1407.AA.26.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1407.AA.26.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1407.AA.26.H40.xx
(2x) Dim to Warm - 9.2W - 732lm
1407.AA.26.DTW.xx
Mains dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1407.AA.27.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1407.AA.27.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1407.AA.27.H40.xx
Push/Touch dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1407.AA.29.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1407.AA.29.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1407.AA.29.H40.xx
Titan Box Double (Mix)
Cone
Driver(s) integrated and included in article and pricing
Non dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1406.AA.24.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1406.AA.24.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1406.AA.24.H40.xx
1-10V dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1406.AA.25.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1406.AA.25.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1406.AA.25.H40.xx
DALI dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1406.AA.26.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1406.AA.26.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1406.AA.26.H40.xx
(2x) Dim to Warm - 9.2W - 732lm
1406.AA.26.DTW.xx
Mains dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1406.AA.27.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1406.AA.27.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1406.AA.27.H40.xx
Push/Touch dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1406.AA.29.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1406.AA.29.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1406.AA.29.H40.xx
Titan Box Double (Mix)
Anti-Glare
Driver(s) integrated and included in article and pricing
Non dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1408.AA.24.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1408.AA.24.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1408.AA.24.H40.xx
1-10V dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1408.AA.25.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1408.AA.25.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1408.AA.25.H40.xx
DALI dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1408.AA.26.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1408.AA.26.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1408.AA.26.H40.xx
(2x) Dim to Warm - 9.2W - 732lm
1408.AA.26.DTW.xx
Mains dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1408.AA.27.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1408.AA.27.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1408.AA.27.H40.xx
Push/Touch dim
(2x) 2700K - Ra97 - 9.8W - 799lm
1408.AA.29.H27.xx
(2x) 3000K - Ra97 - 9.8W - 854lm
1408.AA.29.H30.xx
(2x) 4000K - Ra97 - 9.8W - 893lm
1408.AA.29.H40.xx
01
15
18
11
03
25
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
28: 28° Reflector
40: 40° Reflector
CRI97
