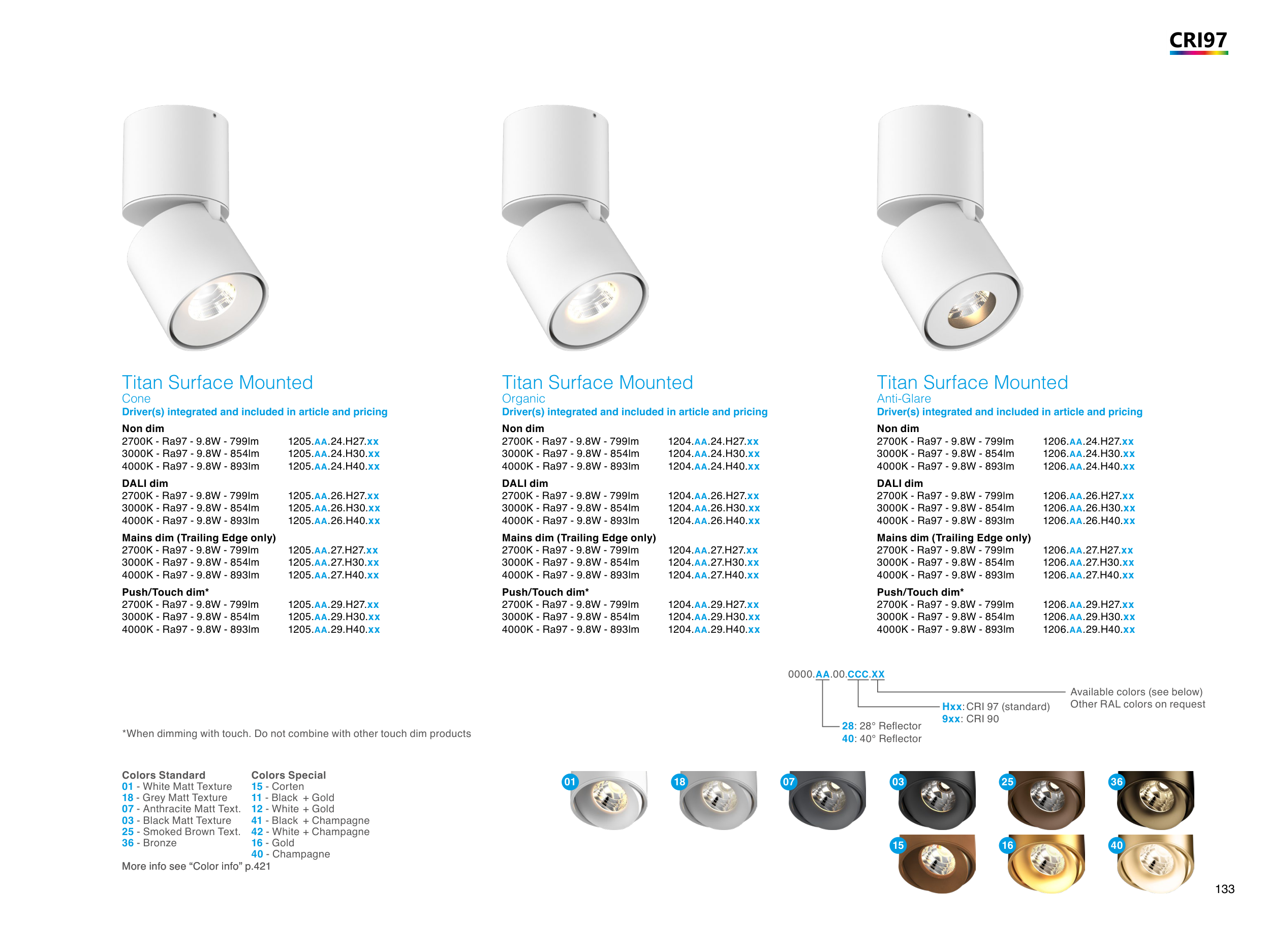

133
Titan Surface Mounted
Organic
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1204.AA.24.H27.xx
3000K - Ra97 - 9.8W - 854lm
1204.AA.24.H30.xx
4000K - Ra97 - 9.8W - 893lm
1204.AA.24.H40.xx
DALI dim
2700K - Ra97 - 9.8W - 799lm
1204.AA.26.H27.xx
3000K - Ra97 - 9.8W - 854lm
1204.AA.26.H30.xx
4000K - Ra97 - 9.8W - 893lm
1204.AA.26.H40.xx
Mains dim (Trailing Edge only)
2700K - Ra97 - 9.8W - 799lm
1204.AA.27.H27.xx
3000K - Ra97 - 9.8W - 854lm
1204.AA.27.H30.xx
4000K - Ra97 - 9.8W - 893lm
1204.AA.27.H40.xx
Push/Touch dim*
2700K - Ra97 - 9.8W - 799lm
1204.AA.29.H27.xx
3000K - Ra97 - 9.8W - 854lm
1204.AA.29.H30.xx
4000K - Ra97 - 9.8W - 893lm
1204.AA.29.H40.xx
Titan Surface Mounted
Anti-Glare
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1206.AA.24.H27.xx
3000K - Ra97 - 9.8W - 854lm
1206.AA.24.H30.xx
4000K - Ra97 - 9.8W - 893lm
1206.AA.24.H40.xx
DALI dim
2700K - Ra97 - 9.8W - 799lm
1206.AA.26.H27.xx
3000K - Ra97 - 9.8W - 854lm
1206.AA.26.H30.xx
4000K - Ra97 - 9.8W - 893lm
1206.AA.26.H40.xx
Mains dim (Trailing Edge only)
2700K - Ra97 - 9.8W - 799lm
1206.AA.27.H27.xx
3000K - Ra97 - 9.8W - 854lm
1206.AA.27.H30.xx
4000K - Ra97 - 9.8W - 893lm
1206.AA.27.H40.xx
Push/Touch dim*
2700K - Ra97 - 9.8W - 799lm
1206.AA.29.H27.xx
3000K - Ra97 - 9.8W - 854lm
1206.AA.29.H30.xx
4000K - Ra97 - 9.8W - 893lm
1206.AA.29.H40.xx
Titan Surface Mounted
Cone
Driver(s) integrated and included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1205.AA.24.H27.xx
3000K - Ra97 - 9.8W - 854lm
1205.AA.24.H30.xx
4000K - Ra97 - 9.8W - 893lm
1205.AA.24.H40.xx
DALI dim
2700K - Ra97 - 9.8W - 799lm
1205.AA.26.H27.xx
3000K - Ra97 - 9.8W - 854lm
1205.AA.26.H30.xx
4000K - Ra97 - 9.8W - 893lm
1205.AA.26.H40.xx
Mains dim (Trailing Edge only)
2700K - Ra97 - 9.8W - 799lm
1205.AA.27.H27.xx
3000K - Ra97 - 9.8W - 854lm
1205.AA.27.H30.xx
4000K - Ra97 - 9.8W - 893lm
1205.AA.27.H40.xx
Push/Touch dim*
2700K - Ra97 - 9.8W - 799lm
1205.AA.29.H27.xx
3000K - Ra97 - 9.8W - 854lm
1205.AA.29.H30.xx
4000K - Ra97 - 9.8W - 893lm
1205.AA.29.H40.xx
*When dimming with touch. Do not combine with other touch dim products
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
28: 28° Reflector
40: 40° Reflector
CRI97
More info see “Color info” p.421
01
15
18
07
03
25
16
36
40
