131

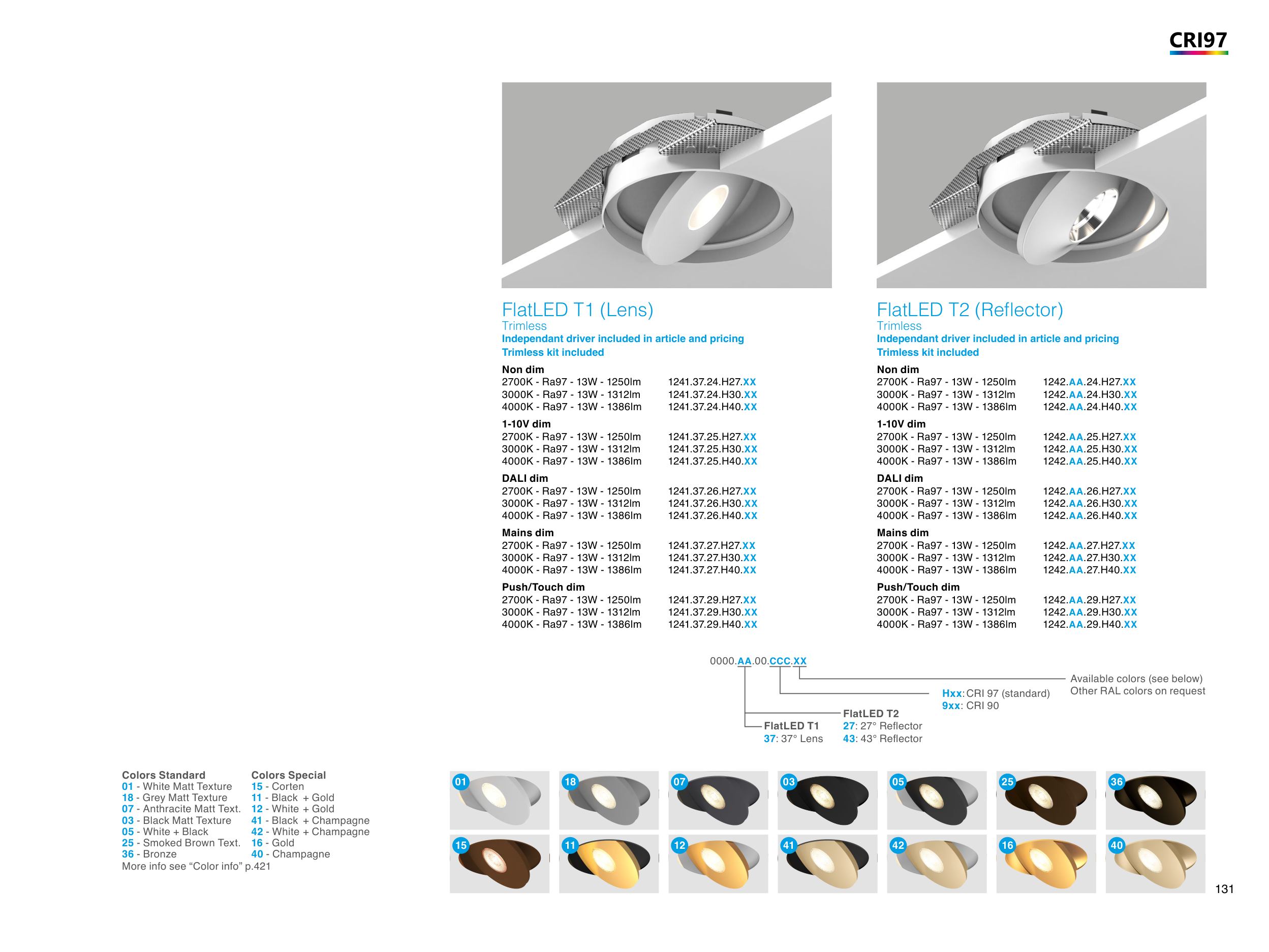

FlatLED T2 (Reflector)
Trimless
Independant driver included in article and pricing
Trimless kit included
Non dim
2700K - Ra97 - 13W - 1250lm
1242.AA.24.H27.XX
3000K - Ra97 - 13W - 1312lm
1242.AA.24.H30.XX
4000K - Ra97 - 13W - 1386lm
1242.AA.24.H40.XX
1-10V dim
2700K - Ra97 - 13W - 1250lm
1242.AA.25.H27.XX
3000K - Ra97 - 13W - 1312lm
1242.AA.25.H30.XX
4000K - Ra97 - 13W - 1386lm
1242.AA.25.H40.XX
DALI dim
2700K - Ra97 - 13W - 1250lm
1242.AA.26.H27.XX
3000K - Ra97 - 13W - 1312lm
1242.AA.26.H30.XX
4000K - Ra97 - 13W - 1386lm
1242.AA.26.H40.XX
Mains dim
2700K - Ra97 - 13W - 1250lm
1242.AA.27.H27.XX
3000K - Ra97 - 13W - 1312lm
1242.AA.27.H30.XX
4000K - Ra97 - 13W - 1386lm
1242.AA.27.H40.XX
Push/Touch dim
2700K - Ra97 - 13W - 1250lm
1242.AA.29.H27.XX
3000K - Ra97 - 13W - 1312lm
1242.AA.29.H30.XX
4000K - Ra97 - 13W - 1386lm
1242.AA.29.H40.XX
FlatLED T1 (Lens)
Trimless
Independant driver included in article and pricing
Trimless kit included
Non dim
2700K - Ra97 - 13W - 1250lm
1241.37.24.H27.XX
3000K - Ra97 - 13W - 1312lm
1241.37.24.H30.XX
4000K - Ra97 - 13W - 1386lm
1241.37.24.H40.XX
1-10V dim
2700K - Ra97 - 13W - 1250lm
1241.37.25.H27.XX
3000K - Ra97 - 13W - 1312lm
1241.37.25.H30.XX
4000K - Ra97 - 13W - 1386lm
1241.37.25.H40.XX
DALI dim
2700K - Ra97 - 13W - 1250lm
1241.37.26.H27.XX
3000K - Ra97 - 13W - 1312lm
1241.37.26.H30.XX
4000K - Ra97 - 13W - 1386lm
1241.37.26.H40.XX
Mains dim
2700K - Ra97 - 13W - 1250lm
1241.37.27.H27.XX
3000K - Ra97 - 13W - 1312lm
1241.37.27.H30.XX
4000K - Ra97 - 13W - 1386lm
1241.37.27.H40.XX
Push/Touch dim
2700K - Ra97 - 13W - 1250lm
1241.37.29.H27.XX
3000K - Ra97 - 13W - 1312lm
1241.37.29.H30.XX
4000K - Ra97 - 13W - 1386lm
1241.37.29.H40.XX
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
FlatLED T2
27: 27° Reflector
43: 43° Reflector
FlatLED T1
37: 37° Lens
CRI97
01
15
18
11
07
12
03
41
05
42
25
16
36
40
