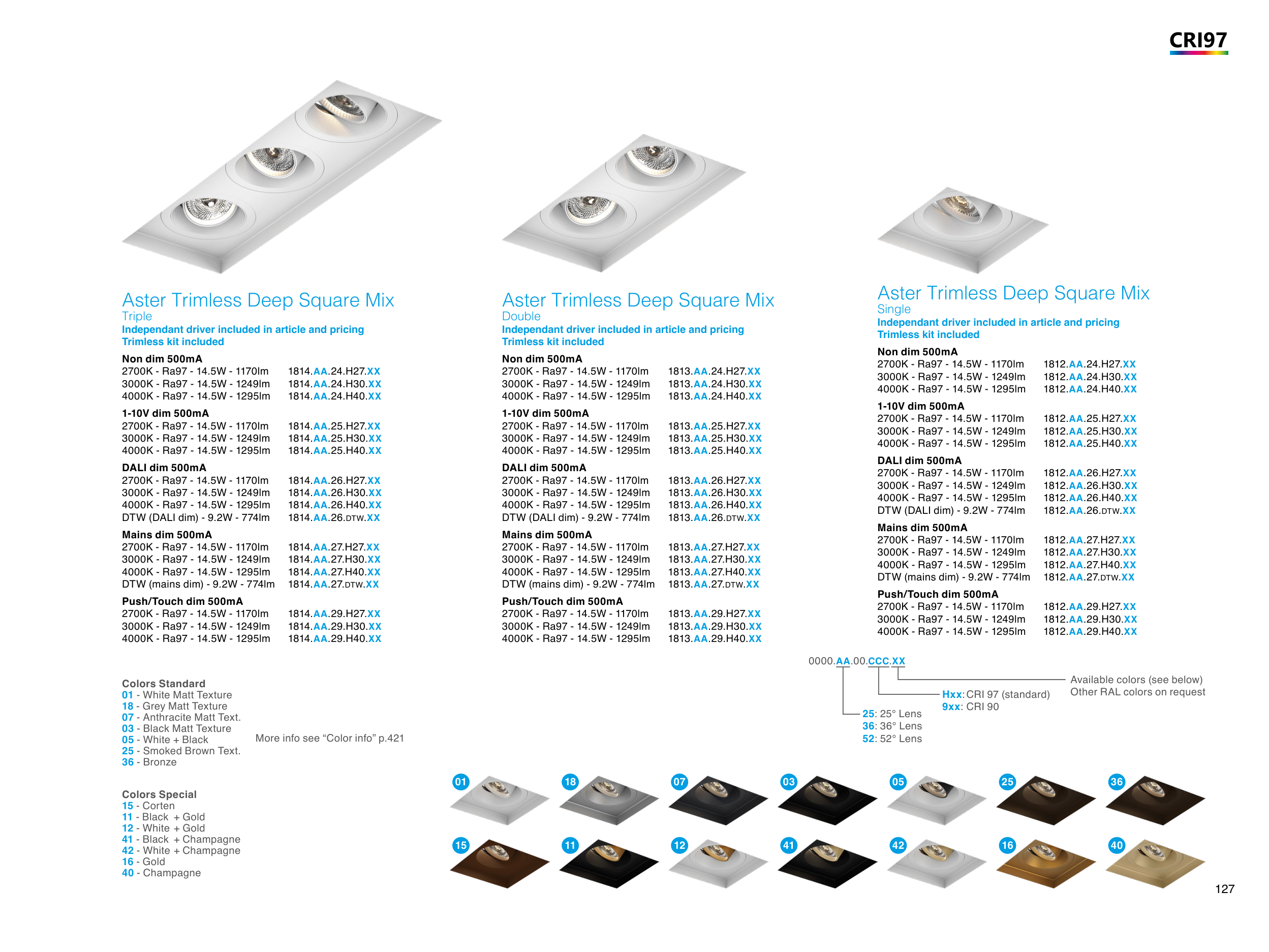

Aster Trimless Deep Square Mix
Single
Independant driver included in article and pricing
Trimless kit included
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1812.AA.24.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1812.AA.24.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1812.AA.24.H40.XX
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1812.AA.25.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1812.AA.25.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1812.AA.25.H40.XX
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1812.AA.26.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1812.AA.26.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1812.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 774lm
1812.AA.26.DTW.XX
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1812.AA.27.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1812.AA.27.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1812.AA.27.H40.XX
DTW (mains dim) - 9.2W - 774lm
1812.AA.27.DTW.XX
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1812.AA.29.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1812.AA.29.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1812.AA.29.H40.XX
Aster Trimless Deep Square Mix
Double
Independant driver included in article and pricing
Trimless kit included
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1813.AA.24.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1813.AA.24.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1813.AA.24.H40.XX
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1813.AA.25.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1813.AA.25.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1813.AA.25.H40.XX
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1813.AA.26.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1813.AA.26.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1813.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 774lm
1813.AA.26.DTW.XX
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1813.AA.27.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1813.AA.27.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1813.AA.27.H40.XX
DTW (mains dim) - 9.2W - 774lm
1813.AA.27.DTW.XX
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1813.AA.29.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1813.AA.29.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1813.AA.29.H40.XX
Aster Trimless Deep Square Mix
Triple
Independant driver included in article and pricing
Trimless kit included
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1814.AA.24.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1814.AA.24.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1814.AA.24.H40.XX
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1814.AA.25.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1814.AA.25.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1814.AA.25.H40.XX
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1814.AA.26.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1814.AA.26.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1814.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 774lm
1814.AA.26.DTW.XX
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1814.AA.27.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1814.AA.27.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1814.AA.27.H40.XX
DTW (mains dim) - 9.2W - 774lm
1814.AA.27.DTW.XX
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1814.AA.29.H27.XX
3000K - Ra97 - 14.5W - 1249lm
1814.AA.29.H30.XX
4000K - Ra97 - 14.5W - 1295lm
1814.AA.29.H40.XX
01
15
18
11
07
12
03
41
05
42
25
16
36
40
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
25: 25° Lens
36: 36° Lens
52: 52° Lens
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
More info see “Color info” p.421
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
CRI97
