115
*On request
01
15
18
07
03
25
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
16 - Gold
40 - Champagne

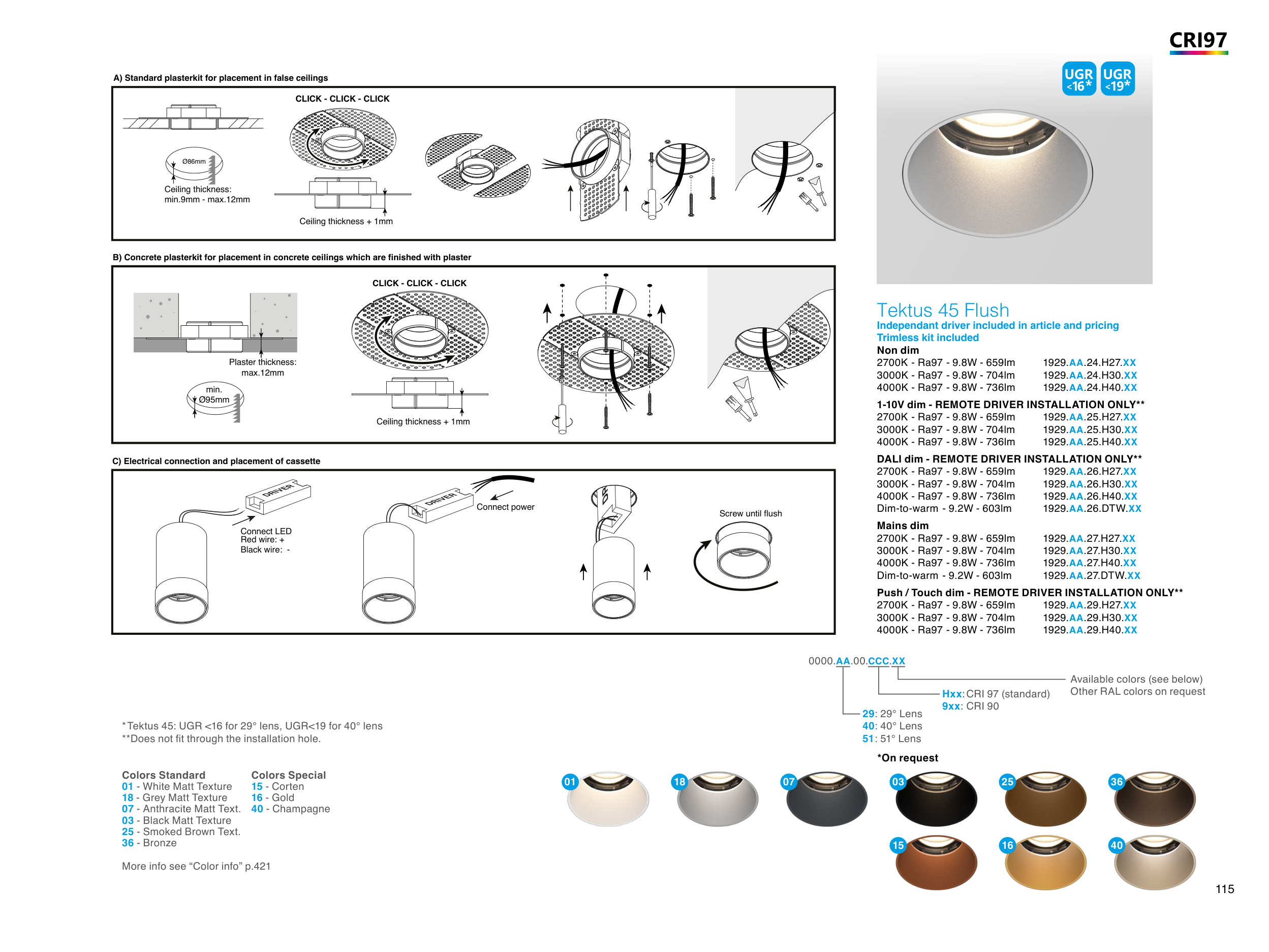

Tektus 45 Flush
Independant driver included in article and pricing
Trimless kit included
Non dim
2700K - Ra97 - 9.8W - 659lm
1929.AA.24.H27.XX
3000K - Ra97 - 9.8W - 704lm
1929.AA.24.H30.XX
4000K - Ra97 - 9.8W - 736lm
1929.AA.24.H40.XX
1-10V dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 9.8W - 659lm
1929.AA.25.H27.XX
3000K - Ra97 - 9.8W - 704lm
1929.AA.25.H30.XX
4000K - Ra97 - 9.8W - 736lm
1929.AA.25.H40.XX
DALI dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 9.8W - 659lm
1929.AA.26.H27.XX
3000K - Ra97 - 9.8W - 704lm
1929.AA.26.H30.XX
4000K - Ra97 - 9.8W - 736lm
1929.AA.26.H40.XX
Dim-to-warm - 9.2W - 603lm
1929.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 9.8W - 659lm
1929.AA.27.H27.XX
3000K - Ra97 - 9.8W - 704lm
1929.AA.27.H30.XX
4000K - Ra97 - 9.8W - 736lm
1929.AA.27.H40.XX
Dim-to-warm - 9.2W - 603lm
1929.AA.27.DTW.XX
Push / Touch dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 9.8W - 659lm
1929.AA.29.H27.XX
3000K - Ra97 - 9.8W - 704lm
1929.AA.29.H30.XX
4000K - Ra97 - 9.8W - 736lm
1929.AA.29.H40.XX
Ceiling thickness + 1mm
CLICK - CLICK - CLICK
Ø86mm
Ceiling thickness:
min.9mm - max.12mm
A) Standard plasterkit for placement in false ceilings
Ceiling thickness + 1mm
CLICK - CLICK - CLICK
min.
Ø95mm
Plaster thickness:
max.12mm
B) Concrete plasterkit for placement in concrete ceilings which are finished with plaster
Screw until flush
Connect LED
Red wire: +
Black wire: -
C) Electrical connection and placement of cassette
Connect power
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
**Does not fit through the installation hole.
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
