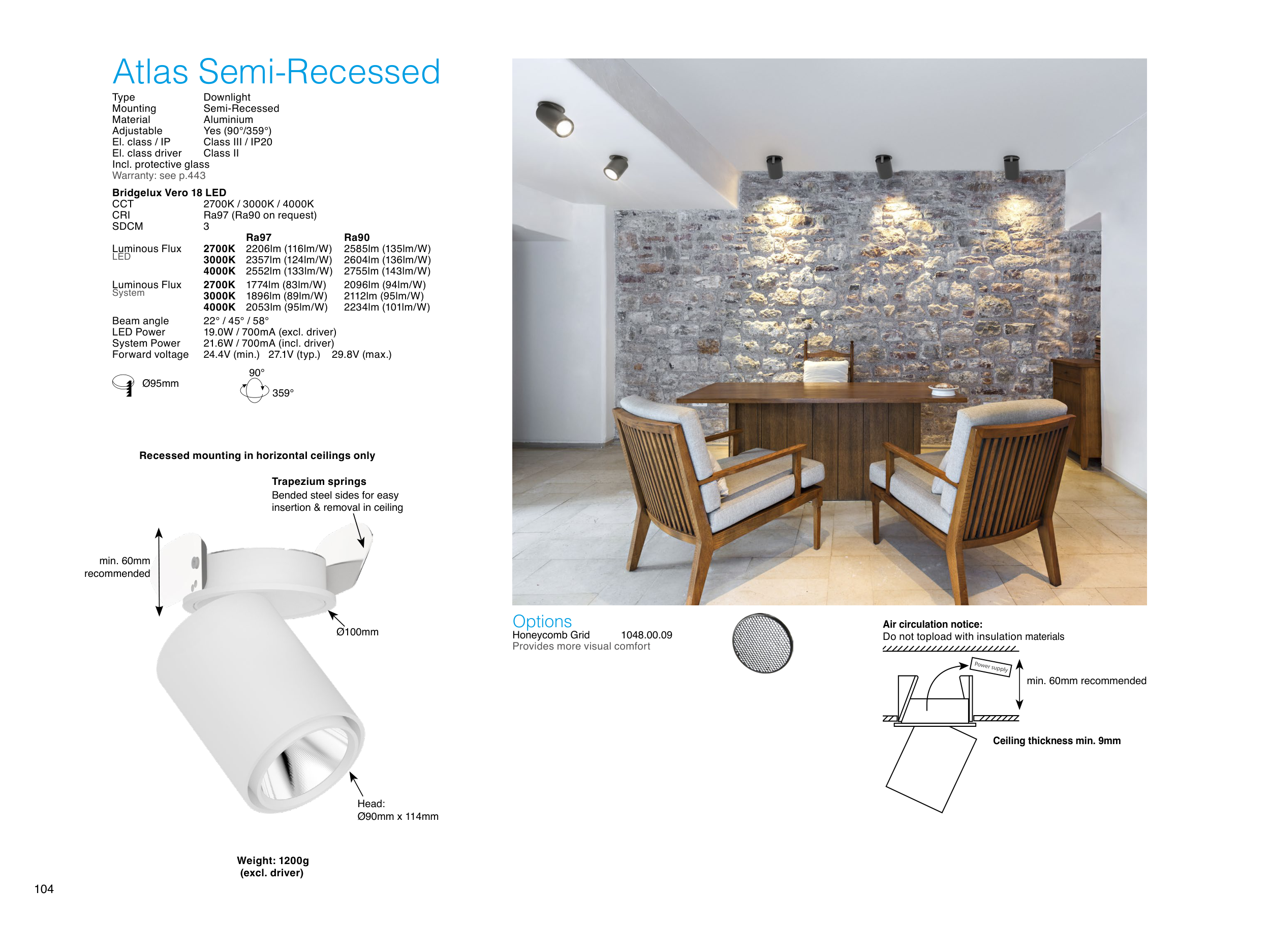

Atlas Semi-Recessed
Type
Downlight
Mounting
Semi-Recessed
Material
Aluminium
Adjustable
Yes (90°/359°)
El. class / IP
Class III / IP20
El. class driver
Class II
Incl. protective glass
Warranty: see p.443
Bridgelux Vero 18 LED
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 2206lm (116lm/W) 2585lm (135lm/W)
LED
3000K 2357lm (124lm/W) 2604lm (136lm/W)
4000K 2552lm (133lm/W) 2755lm (143lm/W)
Luminous Flux
2700K 1774lm (83lm/W)
2096lm (94lm/W)
System
3000K 1896lm (89lm/W)
2112lm (95lm/W)
4000K 2053lm (95lm/W)
2234lm (101lm/W)
Beam angle
22° / 45° / 58°
LED Power
19.0W / 700mA (excl. driver)
System Power
21.6W / 700mA (incl. driver)
Forward voltage
24.4V (min.) 27.1V (typ.)
29.8V (max.)
Ø100mm
Head:
Ø90mm x 114mm
min. 60mm
recommended
Weight: 1200g
Power supply
min. 60mm recommended
Air circulation notice:
Do not topload with insulation materials
Options
Honeycomb Grid
1048.00.09
Provides more visual comfort
(excl. driver)
Bended steel sides for easy
insertion & removal in ceiling
Trapezium springs
359°
90°
Ø95mm
Ceiling thickness min. 9mm
Recessed mounting in horizontal ceilings only
