103

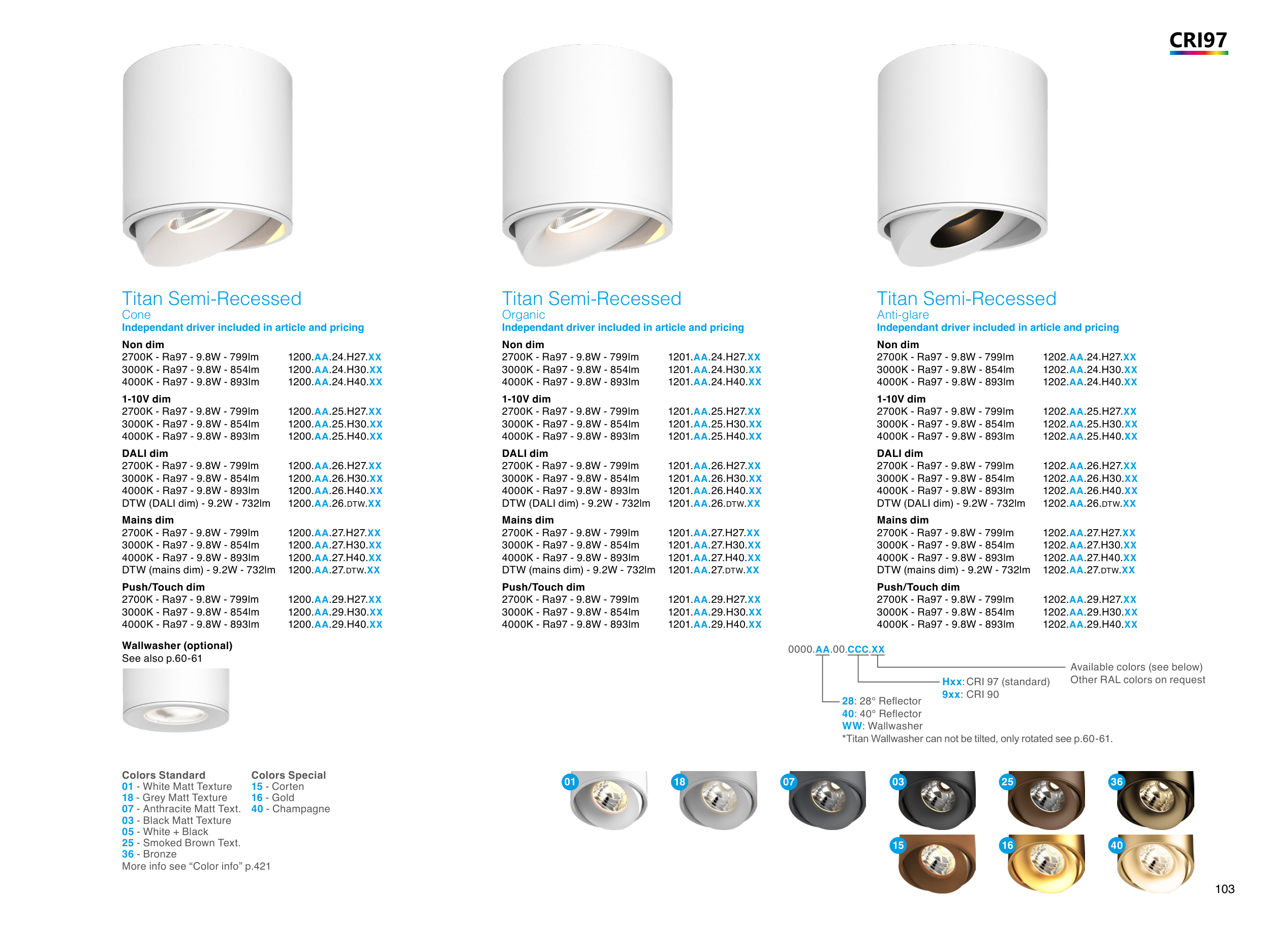

Titan Semi-Recessed
Anti-glare
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1202.AA.24.H27.XX
3000K - Ra97 - 9.8W - 854lm
1202.AA.24.H30.XX
4000K - Ra97 - 9.8W - 893lm
1202.AA.24.H40.XX
1-10V dim
2700K - Ra97 - 9.8W - 799lm
1202.AA.25.H27.XX
3000K - Ra97 - 9.8W - 854lm
1202.AA.25.H30.XX
4000K - Ra97 - 9.8W - 893lm
1202.AA.25.H40.XX
DALI dim
2700K - Ra97 - 9.8W - 799lm
1202.AA.26.H27.XX
3000K - Ra97 - 9.8W - 854lm
1202.AA.26.H30.XX
4000K - Ra97 - 9.8W - 893lm
1202.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 732lm
1202.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 9.8W - 799lm
1202.AA.27.H27.XX
3000K - Ra97 - 9.8W - 854lm
1202.AA.27.H30.XX
4000K - Ra97 - 9.8W - 893lm
1202.AA.27.H40.XX
DTW (mains dim) - 9.2W - 732lm
1202.AA.27.DTW.XX
Push/Touch dim
2700K - Ra97 - 9.8W - 799lm
1202.AA.29.H27.XX
3000K - Ra97 - 9.8W - 854lm
1202.AA.29.H30.XX
4000K - Ra97 - 9.8W - 893lm
1202.AA.29.H40.XX
Titan Semi-Recessed
Organic
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1201.AA.24.H27.XX
3000K - Ra97 - 9.8W - 854lm
1201.AA.24.H30.XX
4000K - Ra97 - 9.8W - 893lm
1201.AA.24.H40.XX
1-10V dim
2700K - Ra97 - 9.8W - 799lm
1201.AA.25.H27.XX
3000K - Ra97 - 9.8W - 854lm
1201.AA.25.H30.XX
4000K - Ra97 - 9.8W - 893lm
1201.AA.25.H40.XX
DALI dim
2700K - Ra97 - 9.8W - 799lm
1201.AA.26.H27.XX
3000K - Ra97 - 9.8W - 854lm
1201.AA.26.H30.XX
4000K - Ra97 - 9.8W - 893lm
1201.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 732lm
1201.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 9.8W - 799lm
1201.AA.27.H27.XX
3000K - Ra97 - 9.8W - 854lm
1201.AA.27.H30.XX
4000K - Ra97 - 9.8W - 893lm
1201.AA.27.H40.XX
DTW (mains dim) - 9.2W - 732lm
1201.AA.27.DTW.XX
Push/Touch dim
2700K - Ra97 - 9.8W - 799lm
1201.AA.29.H27.XX
3000K - Ra97 - 9.8W - 854lm
1201.AA.29.H30.XX
4000K - Ra97 - 9.8W - 893lm
1201.AA.29.H40.XX
Titan Semi-Recessed
Cone
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 9.8W - 799lm
1200.AA.24.H27.XX
3000K - Ra97 - 9.8W - 854lm
1200.AA.24.H30.XX
4000K - Ra97 - 9.8W - 893lm
1200.AA.24.H40.XX
1-10V dim
2700K - Ra97 - 9.8W - 799lm
1200.AA.25.H27.XX
3000K - Ra97 - 9.8W - 854lm
1200.AA.25.H30.XX
4000K - Ra97 - 9.8W - 893lm
1200.AA.25.H40.XX
DALI dim
2700K - Ra97 - 9.8W - 799lm
1200.AA.26.H27.XX
3000K - Ra97 - 9.8W - 854lm
1200.AA.26.H30.XX
4000K - Ra97 - 9.8W - 893lm
1200.AA.26.H40.XX
DTW (DALI dim) - 9.2W - 732lm
1200.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 9.8W - 799lm
1200.AA.27.H27.XX
3000K - Ra97 - 9.8W - 854lm
1200.AA.27.H30.XX
4000K - Ra97 - 9.8W - 893lm
1200.AA.27.H40.XX
DTW (mains dim) - 9.2W - 732lm
1200.AA.27.DTW.XX
Push/Touch dim
2700K - Ra97 - 9.8W - 799lm
1200.AA.29.H27.XX
3000K - Ra97 - 9.8W - 854lm
1200.AA.29.H30.XX
4000K - Ra97 - 9.8W - 893lm
1200.AA.29.H40.XX
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
16 - Gold
40 - Champagne
Wallwasher (optional)
See also p.60-61
CRI97
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
28: 28° Reflector
40: 40° Reflector
WW: Wallwasher
*Titan Wallwasher can not be tilted, only rotated see p.60-61.
01
15
18
07
03
25
16
36
40
