101
01
15
18
11
07
12
03
41
05
42
25
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne

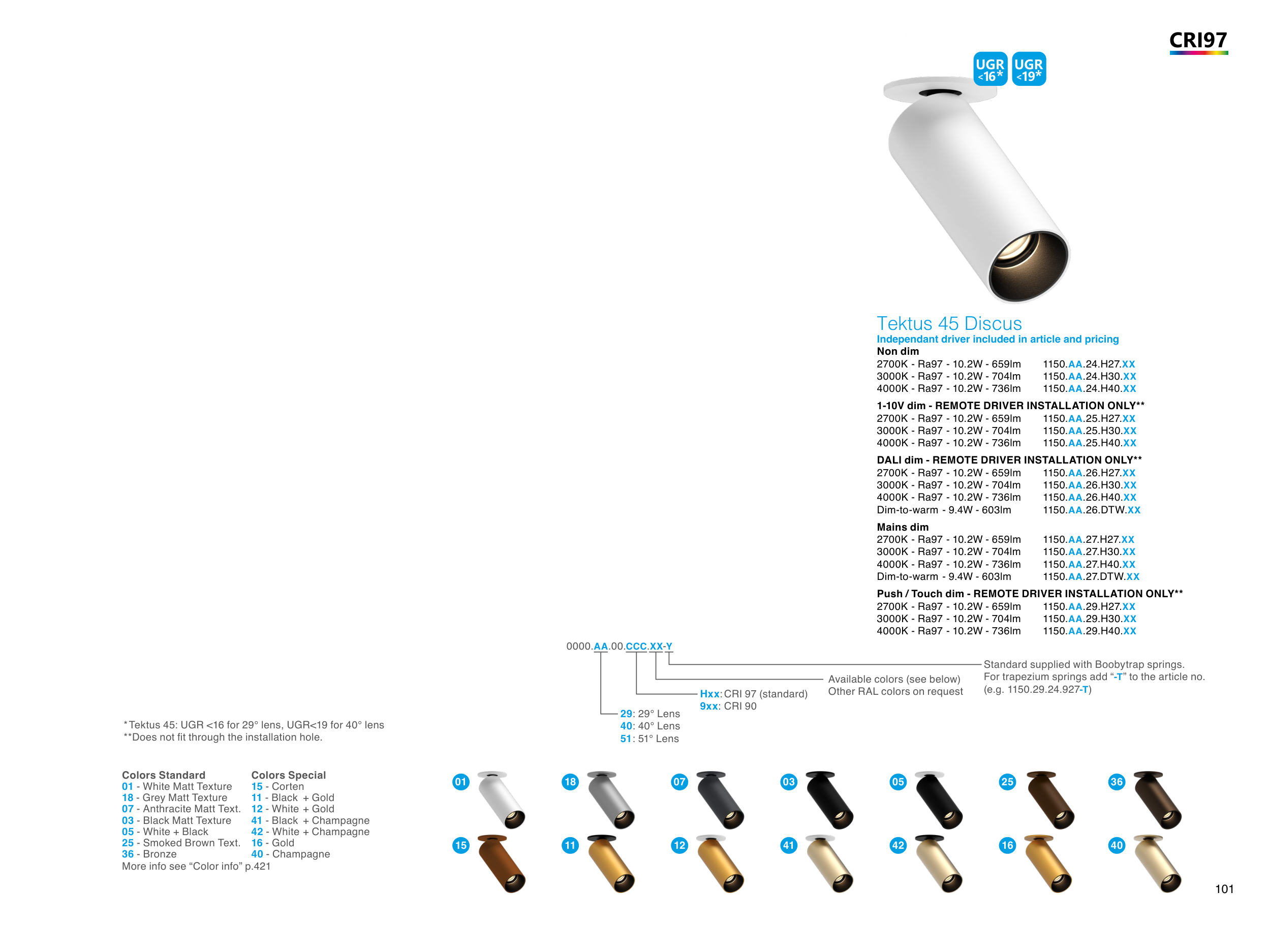

Tektus 45 Discus
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 10.2W - 659lm
1150.AA.24.H27.XX
3000K - Ra97 - 10.2W - 704lm
1150.AA.24.H30.XX
4000K - Ra97 - 10.2W - 736lm
1150.AA.24.H40.XX
1-10V dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 10.2W - 659lm
1150.AA.25.H27.XX
3000K - Ra97 - 10.2W - 704lm
1150.AA.25.H30.XX
4000K - Ra97 - 10.2W - 736lm
1150.AA.25.H40.XX
DALI dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 10.2W - 659lm
1150.AA.26.H27.XX
3000K - Ra97 - 10.2W - 704lm
1150.AA.26.H30.XX
4000K - Ra97 - 10.2W - 736lm
1150.AA.26.H40.XX
Dim-to-warm - 9.4W - 603lm
1150.AA.26.DTW.XX
Mains dim
2700K - Ra97 - 10.2W - 659lm
1150.AA.27.H27.XX
3000K - Ra97 - 10.2W - 704lm
1150.AA.27.H30.XX
4000K - Ra97 - 10.2W - 736lm
1150.AA.27.H40.XX
Dim-to-warm - 9.4W - 603lm
1150.AA.27.DTW.XX
Push / Touch dim - REMOTE DRIVER INSTALLATION ONLY**
2700K - Ra97 - 10.2W - 659lm
1150.AA.29.H27.XX
3000K - Ra97 - 10.2W - 704lm
1150.AA.29.H30.XX
4000K - Ra97 - 10.2W - 736lm
1150.AA.29.H40.XX
Standard supplied with Boobytrap springs.
For trapezium springs add “-T” to the article no.
(e.g. 1150.29.24.927-T)
0000.AA.00.CCC.XX-Y
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
**Does not fit through the installation hole.
CRI97
