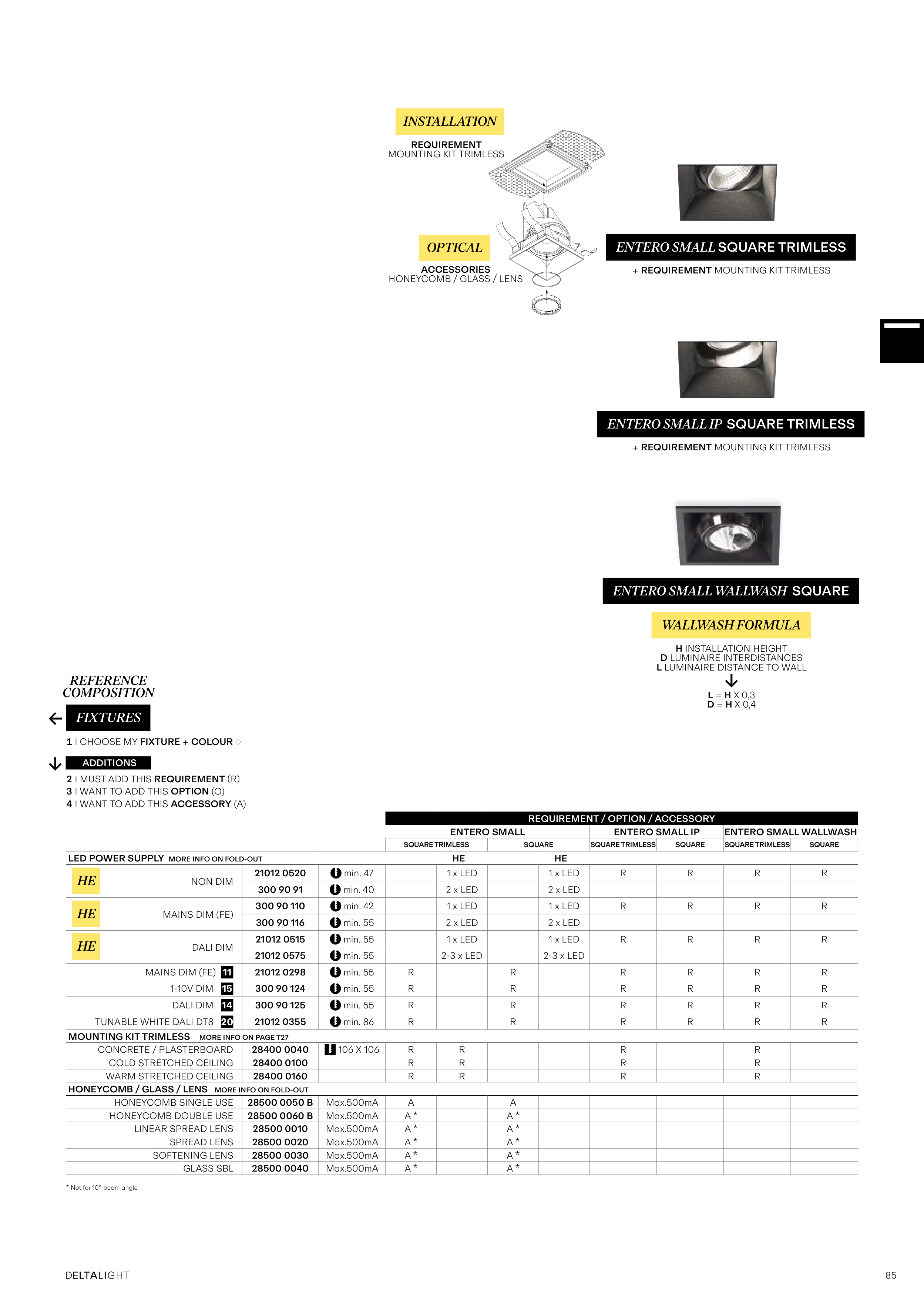

ENTERO SMALL SQUARE TRIMLESS
ENTERO SMALL IP SQUARE TRIMLESS
ENTERO SMALL WALLWASH SQUARE
WALLWASH FORMULA
+ REQUIREMENT MOUNTING KIT TRIMLESS
H INSTALLATION HEIGHT
D LUMINAIRE INTERDISTANCES
L LUMINAIRE DISTANCE TO WALL
L = H X 0,3
D = H X 0,4
+ REQUIREMENT MOUNTING KIT TRIMLESS
INSTALLATION
OPTICAL
REQUIREMENT
MOUNTING KIT TRIMLESS
ACCESSORIES
HONEYCOMB / GLASS / LENS
* Not for 10° beam angle
REQUIREMENT / OPTION / ACCESSORY
ENTERO SMALL
ENTERO SMALL IP
ENTERO SMALL WALLWASH
SQUARE TRIMLESS
SQUARE
SQUARE TRIMLESS
SQUARE
SQUARE TRIMLESS
SQUARE
LED POWER SUPPLY MORE INFO ON FOLD-OUT
HE
HE
NON DIM
21012 0520
min. 47
1 x LED
1 x LED
R
R
R
R
300 90 91
min. 40
2 x LED
2 x LED
MAINS DIM (FE)
300 90 110
min. 42
1 x LED
1 x LED
R
R
R
R
300 90 116
min. 55
2 x LED
2 x LED
DALI DIM
21012 0515
min. 55
1 x LED
1 x LED
R
R
R
R
21012 0575
min. 55
2-3 x LED
2-3 x LED
MAINS DIM (FE) 11
21012 0298
min. 55
R
R
R
R
R
R
1-10V DIM 15
300 90 124
min. 55
R
R
R
R
R
R
DALI DIM 14
300 90 125
min. 55
R
R
R
R
R
R
TUNABLE WHITE DALI DT8 20
21012 0355
min. 86
R
R
R
R
R
R
MOUNTING KIT TRIMLESS MORE INFO ON PAGE T27
CONCRETE / PLASTERBOARD
28400 0040
106 X 106
R
R
R
R
COLD STRETCHED CEILING
28400 0100
R
R
R
R
WARM STRETCHED CEILING
28400 0160
R
R
R
R
HONEYCOMB / GLASS / LENS MORE INFO ON FOLD-OUT
HONEYCOMB SINGLE USE
28500 0050 B
Max.500mA
A
A
HONEYCOMB DOUBLE USE
28500 0060 B
Max.500mA
A *
A *
LINEAR SPREAD LENS
28500 0010
Max.500mA
A *
A *
SPREAD LENS
28500 0020
Max.500mA
A *
A *
SOFTENING LENS
28500 0030
Max.500mA
A *
A *
GLASS SBL
28500 0040
Max.500mA
A *
A *
1 I CHOOSE MY FIXTURE + COLOUR
2 I MUST ADD THIS REQUIREMENT (R)
3 I WANT TO ADD THIS OPTION (O)
4 I WANT TO ADD THIS ACCESSORY (A)
REFERENCE
COMPOSITION
FIXTURES
ADDITIONS
HE
HE
HE
