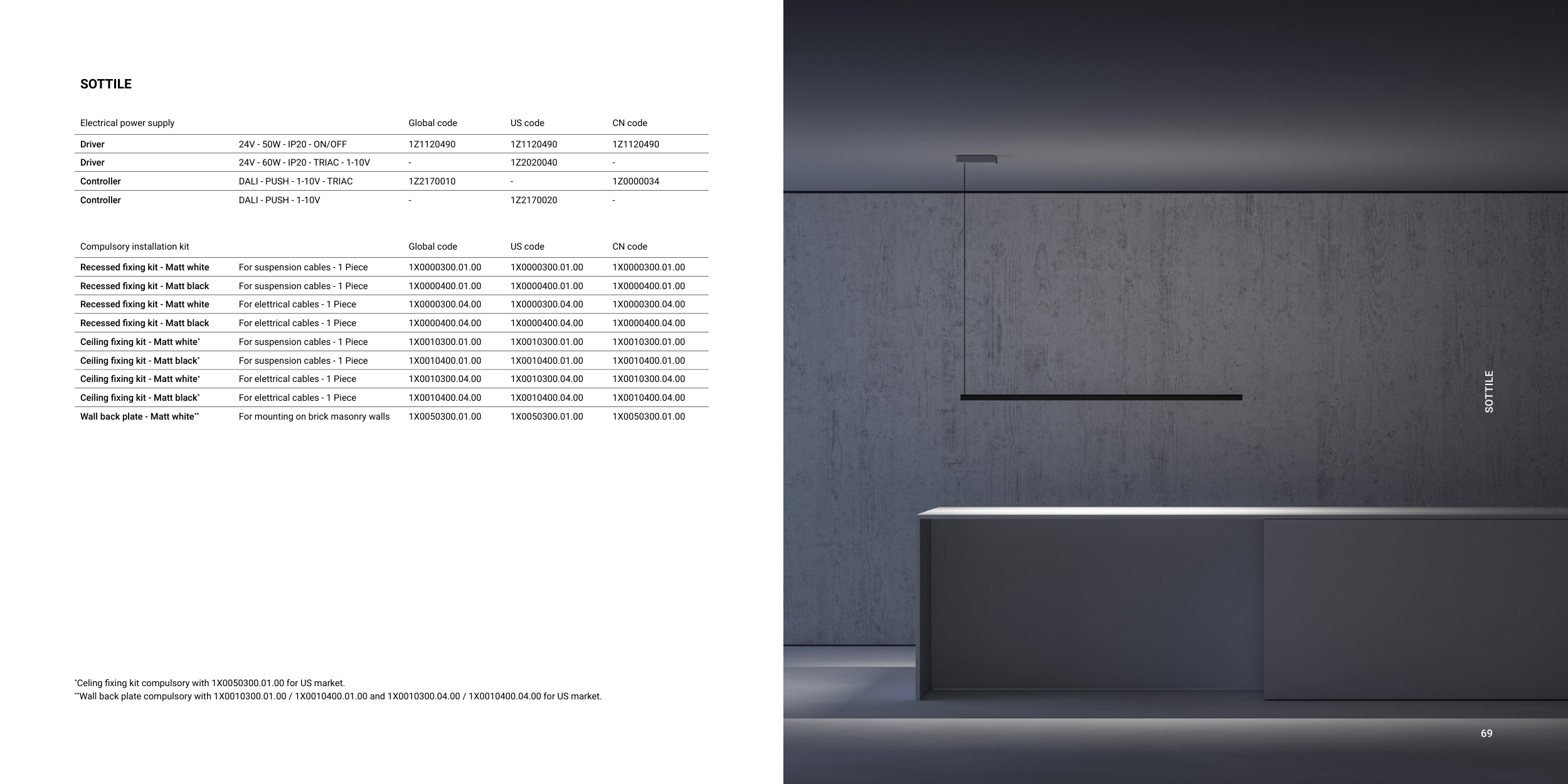

SOTTILE
69
SOTTILE
Electrical power supply
Global code
US code
CN code
Driver
24V - 50W - IP20 - ON/OFF
1Z1120490
1Z1120490
1Z1120490
Driver
24V - 60W - IP20 - TRIAC - 1-10V
-
1Z2020040
-
Controller
DALI - PUSH - 1-10V - TRIAC
1Z2170010
-
1Z0000034
Controller
DALI - PUSH - 1-10V
-
1Z2170020
-
Compulsory installation kit
Global code
US code
CN code
Recessed fixing kit - Matt white
For suspension cables - 1 Piece
1X0000300.01.00
1X0000300.01.00
1X0000300.01.00
Recessed fixing kit - Matt black
For suspension cables - 1 Piece
1X0000400.01.00
1X0000400.01.00
1X0000400.01.00
Recessed fixing kit - Matt white
For elettrical cables - 1 Piece
1X0000300.04.00
1X0000300.04.00
1X0000300.04.00
Recessed fixing kit - Matt black
For elettrical cables - 1 Piece
1X0000400.04.00
1X0000400.04.00
1X0000400.04.00
Ceiling fixing kit - Matt white*
For suspension cables - 1 Piece
1X0010300.01.00
1X0010300.01.00
1X0010300.01.00
Ceiling fixing kit - Matt black*
For suspension cables - 1 Piece
1X0010400.01.00
1X0010400.01.00
1X0010400.01.00
Ceiling fixing kit - Matt white*
For elettrical cables - 1 Piece
1X0010300.04.00
1X0010300.04.00
1X0010300.04.00
Ceiling fixing kit - Matt black*
For elettrical cables - 1 Piece
1X0010400.04.00
1X0010400.04.00
1X0010400.04.00
Wall back plate - Matt white**
For mounting on brick masonry walls
1X0050300.01.00
1X0050300.01.00
1X0050300.01.00
*Celing fixing kit compulsory with 1X0050300.01.00 for US market.
**Wall back plate compulsory with 1X0010300.01.00 / 1X0010400.01.00 and 1X0010300.04.00 / 1X0010400.04.00 for US market.
