398
NULLA
Davide Groppi / 2010
Recessed / Direct / Indoor
Material
Metal
Finish
.00 Standard
Note
Recessed luminaire. Visible 18/25 mm diameter hole. NULLA 18 and
NULLA 25: lamp extractable for maintenance.
Apparecchio illuminante da incasso. Foro visibile con diametro da 18/25 mm.
NULLA 18 e NULLA 25: apparecchio estraibile per manutenzione.
NULLA - 23°
14W
24V DC
2700K - 425lm / 3000K - 458lm
CRI >90
Beam 23°
UGR <19
Driver not included
Standard - 2700K
1A4100000.27.20
Standard - 3000K
1A4100000.30.20
NULLA - 32°
14W
24V DC
2700K - 538lm / 3000K - 579lm
CRI >90
Beam 32°
UGR <19
Driver not included
Standard - 2700K
1A2110000.27.20
Standard - 3000K
1A2110000.30.20

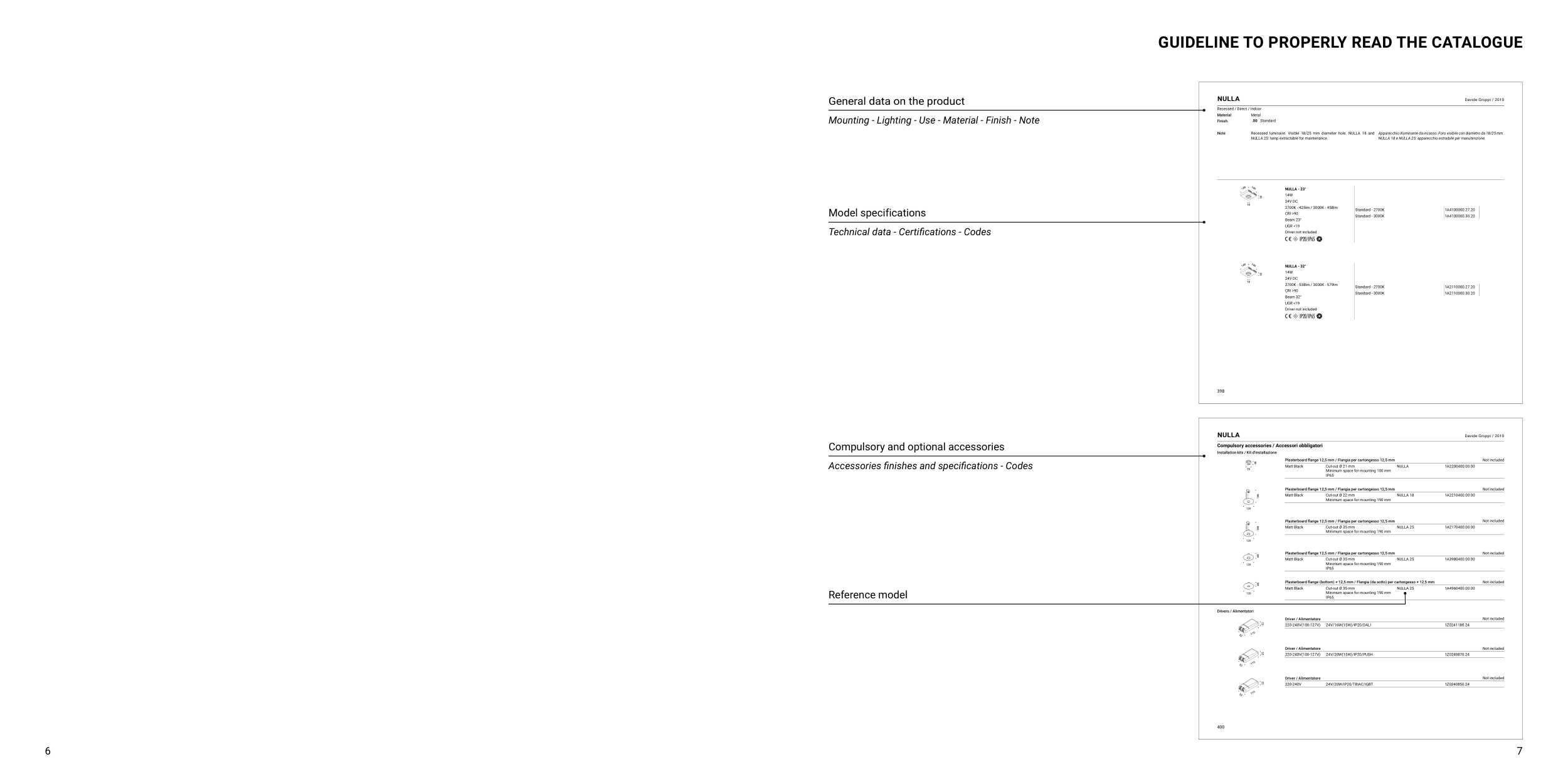

GUIDELINE TO PROPERLY READ THE CATALOGUE
General data on the product
Mounting - Lighting - Use - Material - Finish - Note
Model specifications
Technical data - Certifications - Codes
Compulsory and optional accessories
Accessories finishes and specifications - Codes
Reference model
400
NULLA
Davide Groppi / 2010
Compulsory accessories / Accessori obbligatori
Installation kits / Kit d'installazione
Plasterboard flange 12,5 mm / Flangia per cartongesso 12,5 mm
Not included
Matt Black
Cut-out Ø 21 mm
Minimum space for mounting 100 mm
IP65
NULLA
1A2200400.00.00
Plasterboard flange 12,5 mm / Flangia per cartongesso 12,5 mm
Not included
Matt Black
Cut-out Ø 22 mm
Minimum space for mounting 190 mm
NULLA 18
1A2210400.00.00
Plasterboard flange 12,5 mm / Flangia per cartongesso 12,5 mm
Not included
Matt Black
Cut-out Ø 35 mm
Minimum space for mounting 190 mm
NULLA 25
1A2170400.00.00
Plasterboard flange 12,5 mm / Flangia per cartongesso 12,5 mm
Not included
Matt Black
Cut-out Ø 35 mm
Minimum space for mounting 190 mm
IP65
NULLA 25
1A3980400.00.00
Plasterboard flange (bottom) ≠ 12,5 mm / Flangia (da sotto) per cartongesso ≠ 12,5 mm
Not included
Matt Black
Cut-out Ø 35 mm
Minimum space for mounting 190 mm
IP65
NULLA 25
1A4960400.00.00
Drivers / Alimentatori
Driver / Alimentatore
Not included
220-240V(100-127V)
24V/16W(15W)/IP20/DALI
1Z0241180.24
Driver / Alimentatore
Not included
220-240V(100-127V)
24V/20W(15W)/IP20/PUSH
1Z0240870.24
Driver / Alimentatore
Not included
220-240V
24V/20W/IP20/TRIAC/IGBT
1Z0240850.24
