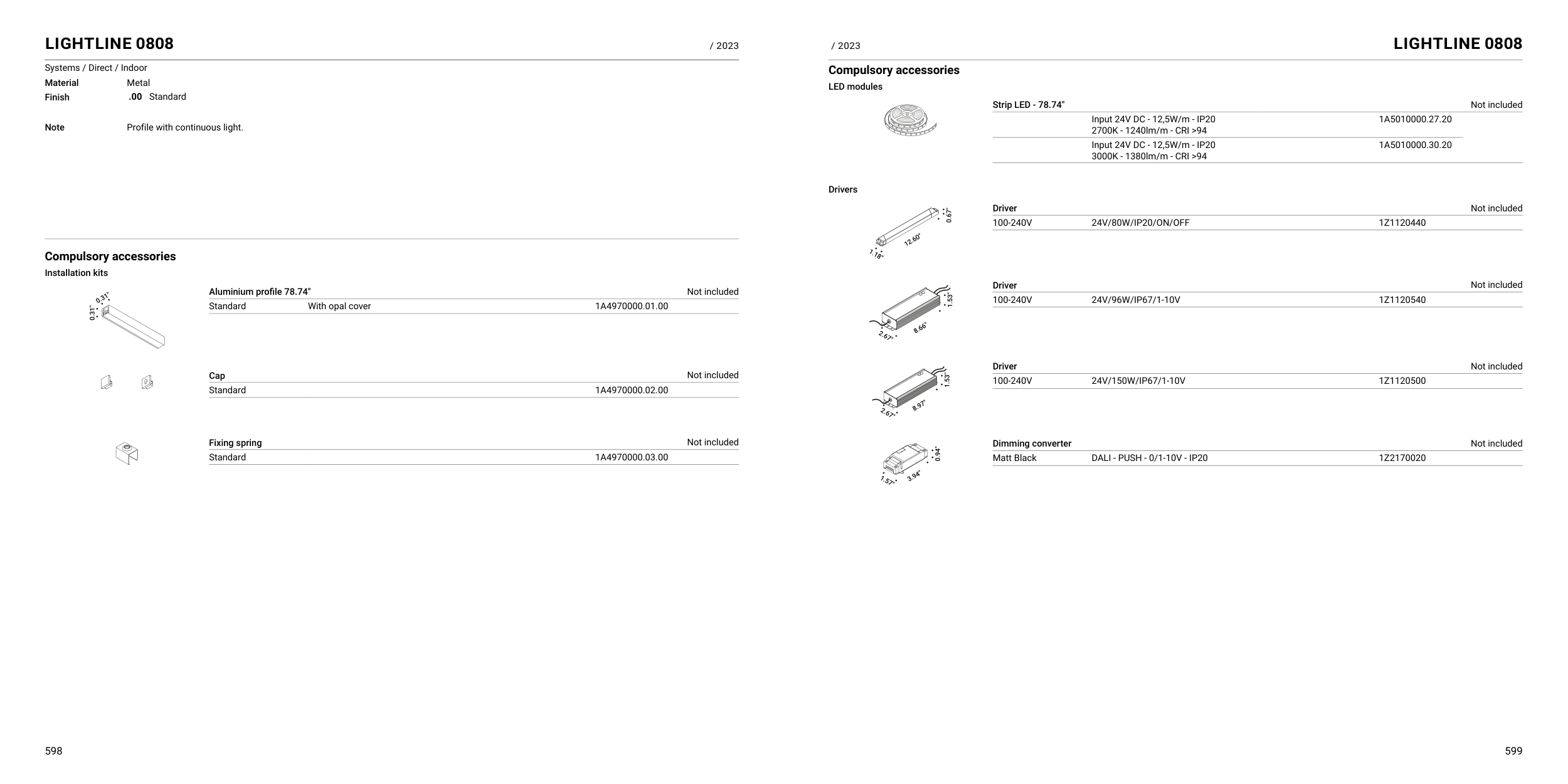

LIGHTLINE 0808
/ 2023
/ 2023
LIGHTLINE 0808
Systems / Direct / Indoor
Material
Metal
Finish
.00 Standard
Note
Profile with continuous light.
Compulsory accessories
Installation kits
Aluminium profile 78.74"
Not included
Standard
With opal cover
1A4970000.01.00
Cap
Not included
Standard
1A4970000.02.00
Fixing spring
Not included
Standard
1A4970000.03.00
Compulsory accessories
LED modules
Strip LED - 78.74"
Not included
Input 24V DC - 12,5W/m - IP20
2700K - 1240lm/m - CRI >94
1A5010000.27.20
Input 24V DC - 12,5W/m - IP20
3000K - 1380lm/m - CRI >94
1A5010000.30.20
Drivers
Driver
Not included
100-240V
24V/80W/IP20/ON/OFF
1Z1120440
Driver
Not included
100-240V
24V/96W/IP67/1-10V
1Z1120540
Driver
Not included
100-240V
24V/150W/IP67/1-10V
1Z1120500
Dimming converter
Not included
Matt Black
DALI - PUSH - 0/1-10V - IP20
1Z2170020
