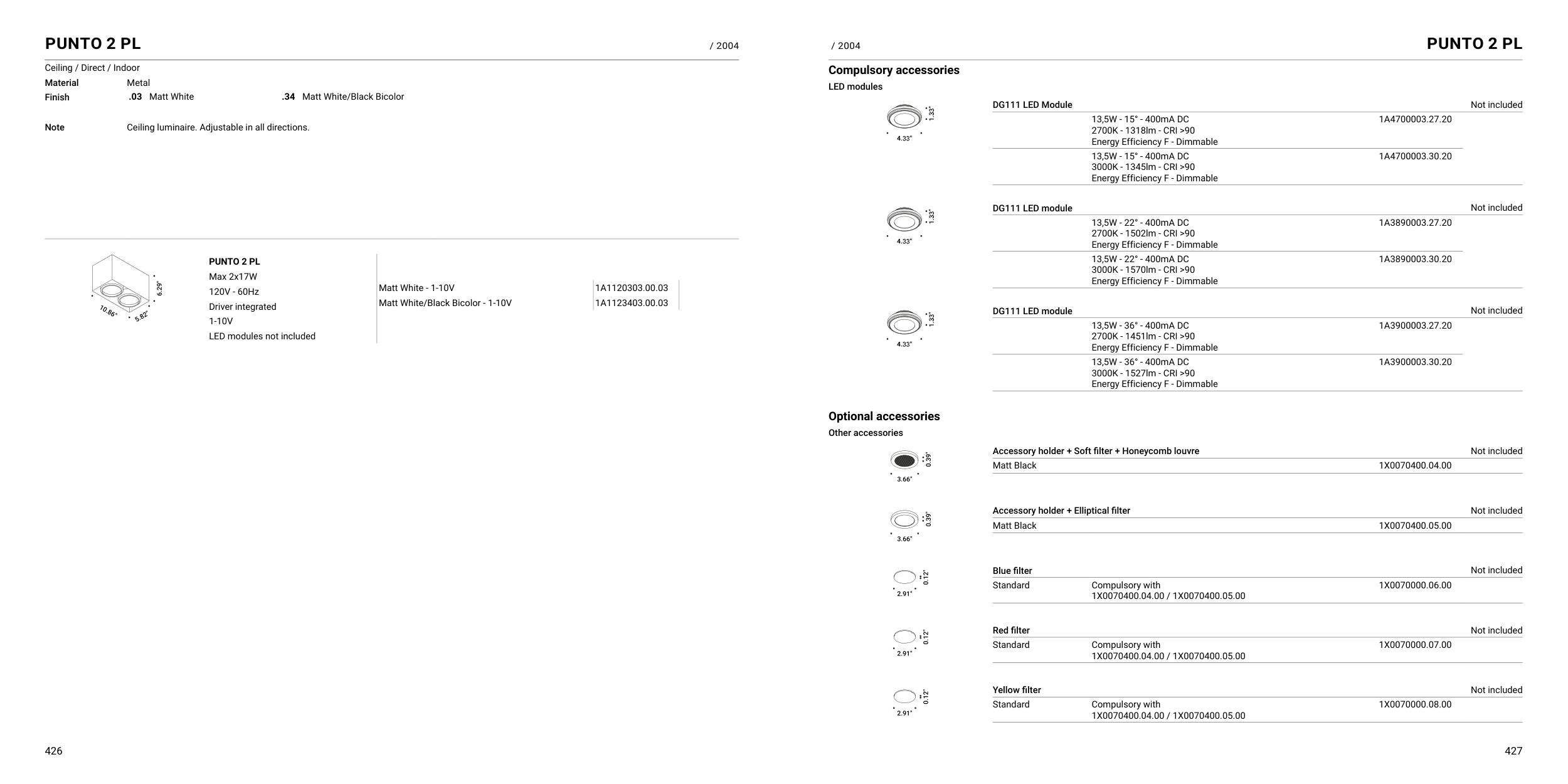

PUNTO 2 PL
PUNTO 2 PL
/ 2004
Compulsory accessories
LED modules
DG111 LED Module
Not included
13,5W - 15° - 400mA DC
2700K - 1318lm - CRI >90
Energy Efficiency F - Dimmable
1A4700003.27.20
13,5W - 15° - 400mA DC
3000K - 1345lm - CRI >90
Energy Efficiency F - Dimmable
1A4700003.30.20
DG111 LED module
Not included
13,5W - 22° - 400mA DC
2700K - 1502lm - CRI >90
Energy Efficiency F - Dimmable
1A3890003.27.20
13,5W - 22° - 400mA DC
3000K - 1570lm - CRI >90
Energy Efficiency F - Dimmable
1A3890003.30.20
DG111 LED module
Not included
13,5W - 36° - 400mA DC
2700K - 1451lm - CRI >90
Energy Efficiency F - Dimmable
1A3900003.27.20
13,5W - 36° - 400mA DC
3000K - 1527lm - CRI >90
Energy Efficiency F - Dimmable
1A3900003.30.20
Optional accessories
Other accessories
Accessory holder + Soft filter + Honeycomb louvre
Not included
Matt Black
1X0070400.04.00
Accessory holder + Elliptical filter
Not included
Matt Black
1X0070400.05.00
Blue filter
Not included
Standard
Compulsory with
1X0070400.04.00 / 1X0070400.05.00
1X0070000.06.00
Red filter
Not included
Standard
Compulsory with
1X0070400.04.00 / 1X0070400.05.00
1X0070000.07.00
Yellow filter
Not included
Standard
Compulsory with
1X0070400.04.00 / 1X0070400.05.00
1X0070000.08.00
Ceiling / Direct / Indoor
Material
Metal
Finish
.03 Matt White
.34 Matt White/Black Bicolor
Note
Ceiling luminaire. Adjustable in all directions.
PUNTO 2 PL
Max 2x17W
120V - 60Hz
Driver integrated
1-10V
LED modules not included
Matt White - 1-10V
1A1120303.00.03
Matt White/Black Bicolor - 1-10V
1A1123403.00.03
