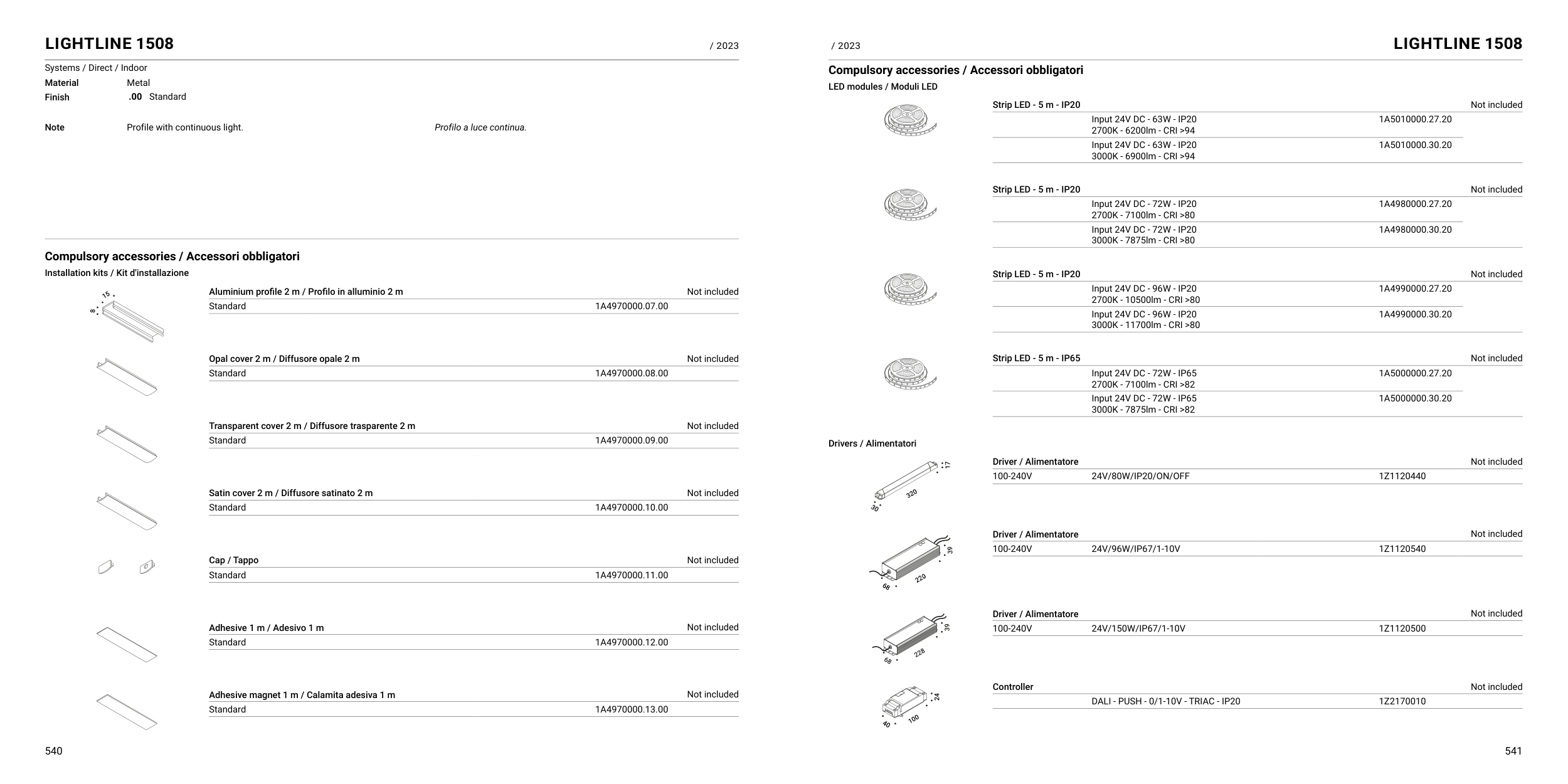

LIGHTLINE 1508
LIGHTLINE 1508
/ 2023
Systems / Direct / Indoor
Material
Metal
Finish
.00 Standard
Note
Profile with continuous light.
Profilo a luce continua.
Compulsory accessories / Accessori obbligatori
Installation kits / Kit d'installazione
Aluminium profile 2 m / Profilo in alluminio 2 m
Not included
Standard
1A4970000.07.00
Opal cover 2 m / Diffusore opale 2 m
Not included
Standard
1A4970000.08.00
Transparent cover 2 m / Diffusore trasparente 2 m
Not included
Standard
1A4970000.09.00
Satin cover 2 m / Diffusore satinato 2 m
Not included
Standard
1A4970000.10.00
Cap / Tappo
Not included
Standard
1A4970000.11.00
Adhesive 1 m / Adesivo 1 m
Not included
Standard
1A4970000.12.00
Adhesive magnet 1 m / Calamita adesiva 1 m
Not included
Standard
1A4970000.13.00
Compulsory accessories / Accessori obbligatori
LED modules / Moduli LED
Strip LED - 5 m - IP20
Not included
Input 24V DC - 63W - IP20
2700K - 6200lm - CRI >94
1A5010000.27.20
Input 24V DC - 63W - IP20
3000K - 6900lm - CRI >94
1A5010000.30.20
Strip LED - 5 m - IP20
Not included
Input 24V DC - 72W - IP20
2700K - 7100lm - CRI >80
1A4980000.27.20
Input 24V DC - 72W - IP20
3000K - 7875lm - CRI >80
1A4980000.30.20
Strip LED - 5 m - IP20
Not included
Input 24V DC - 96W - IP20
2700K - 10500lm - CRI >80
1A4990000.27.20
Input 24V DC - 96W - IP20
3000K - 11700lm - CRI >80
1A4990000.30.20
Strip LED - 5 m - IP65
Not included
Input 24V DC - 72W - IP65
2700K - 7100lm - CRI >82
1A5000000.27.20
Input 24V DC - 72W - IP65
3000K - 7875lm - CRI >82
1A5000000.30.20
Drivers / Alimentatori
Driver / Alimentatore
Not included
100-240V
24V/80W/IP20/ON/OFF
1Z1120440
Driver / Alimentatore
Not included
100-240V
24V/96W/IP67/1-10V
1Z1120540
Driver / Alimentatore
Not included
100-240V
24V/150W/IP67/1-10V
1Z1120500
Controller
Not included
DALI - PUSH - 0/1-10V - TRIAC - IP20
1Z2170010
