515
514
Davide Groppi / 2023
COLIBRÌ
COLIBRÌ
Davide Groppi / 2023

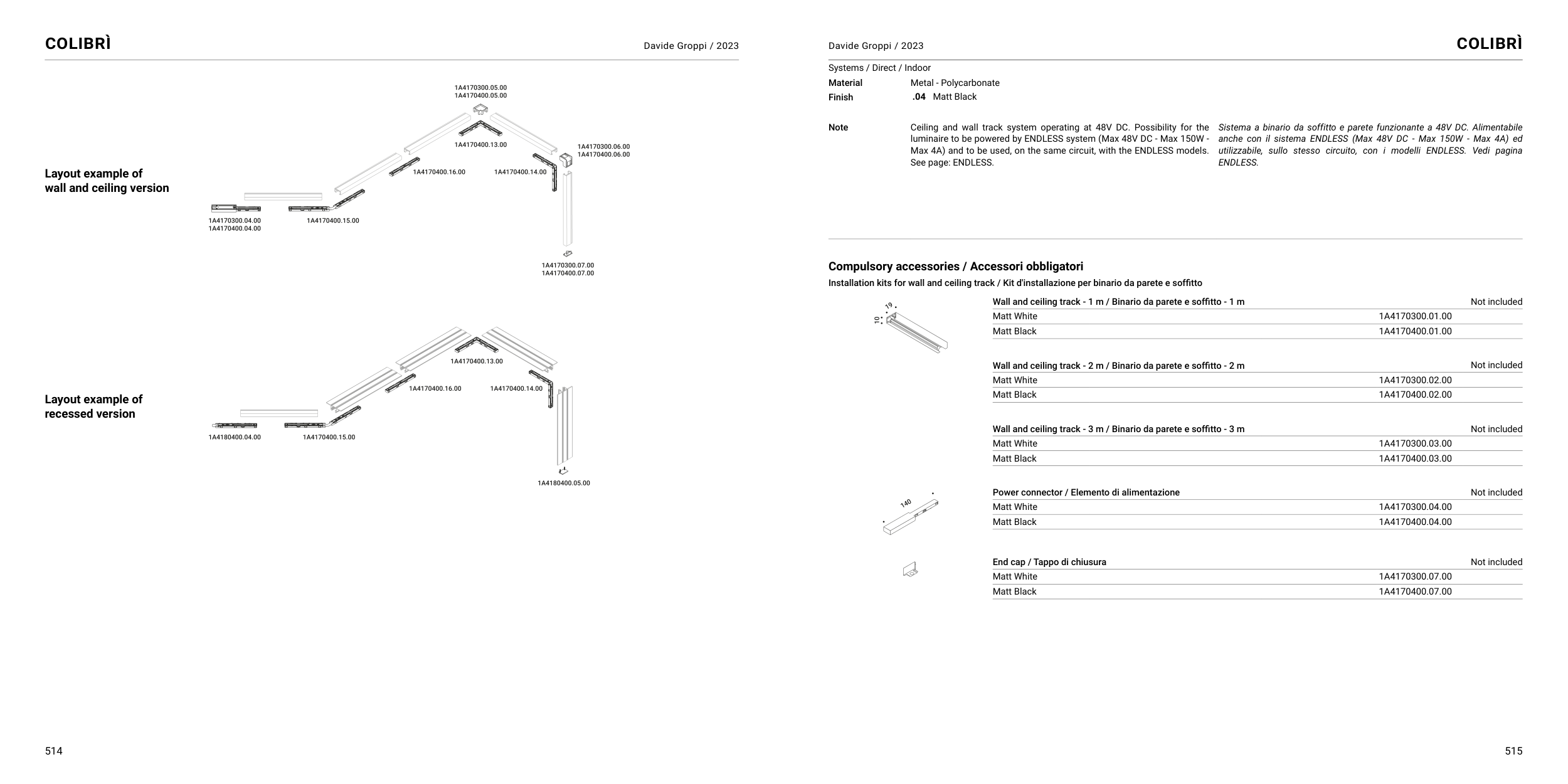

Layout example of
wall and ceiling version
Layout example of
recessed version
Systems / Direct / Indoor
Material
Metal - Polycarbonate
Finish
.04 Matt Black
Note
Ceiling and wall track system operating at 48V DC. Possibility for the
luminaire to be powered by ENDLESS system (Max 48V DC - Max 150W -
Max 4A) and to be used, on the same circuit, with the ENDLESS models.
See page: ENDLESS.
Sistema a binario da soffitto e parete funzionante a 48V DC. Alimentabile
anche con il sistema ENDLESS (Max 48V DC - Max 150W - Max 4A) ed
utilizzabile, sullo stesso circuito, con i modelli ENDLESS. Vedi pagina
ENDLESS.
Compulsory accessories / Accessori obbligatori
Installation kits for wall and ceiling track / Kit d'installazione per binario da parete e soffitto
Wall and ceiling track - 1 m / Binario da parete e soffitto - 1 m
Not included
Matt White
1A4170300.01.00
Matt Black
1A4170400.01.00
Wall and ceiling track - 2 m / Binario da parete e soffitto - 2 m
Not included
Matt White
1A4170300.02.00
Matt Black
1A4170400.02.00
Wall and ceiling track - 3 m / Binario da parete e soffitto - 3 m
Not included
Matt White
1A4170300.03.00
Matt Black
1A4170400.03.00
Power connector / Elemento di alimentazione
Not included
Matt White
1A4170300.04.00
Matt Black
1A4170400.04.00
End cap / Tappo di chiusura
Not included
Matt White
1A4170300.07.00
Matt Black
1A4170400.07.00
