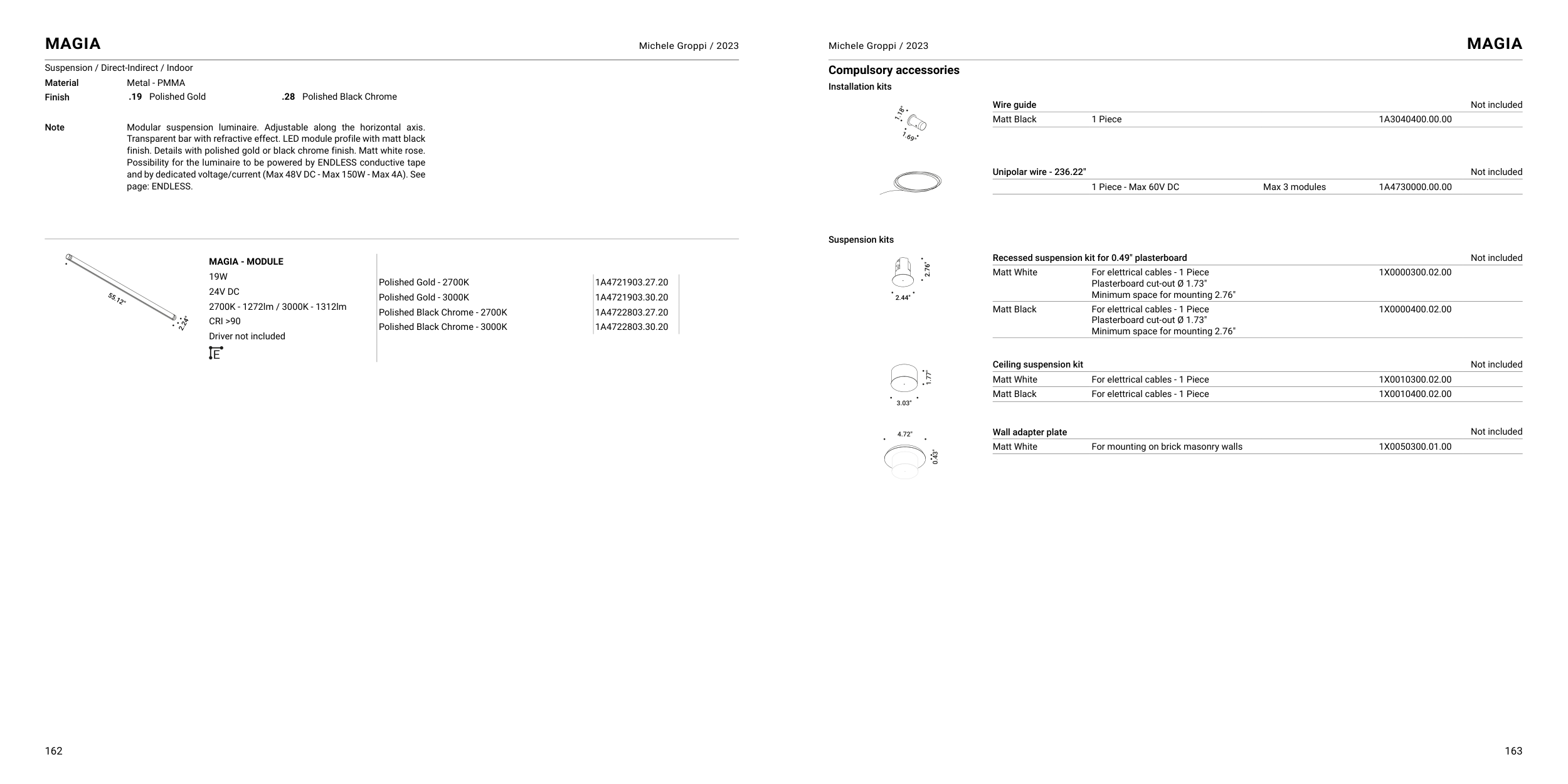

MAGIA
Michele Groppi / 2023
Michele Groppi / 2023
MAGIA
Suspension / Direct-Indirect / Indoor
Material
Metal - PMMA
Finish
.19 Polished Gold
.28 Polished Black Chrome
Note
Modular suspension luminaire. Adjustable along the horizontal axis.
Transparent bar with refractive effect. LED module profile with matt black
finish. Details with polished gold or black chrome finish. Matt white rose.
Possibility for the luminaire to be powered by ENDLESS conductive tape
and by dedicated voltage/current (Max 48V DC - Max 150W - Max 4A). See
page: ENDLESS.
MAGIA - MODULE
19W
24V DC
2700K - 1272lm / 3000K - 1312lm
CRI >90
Driver not included
Polished Gold - 2700K
1A4721903.27.20
Polished Gold - 3000K
1A4721903.30.20
Polished Black Chrome - 2700K
1A4722803.27.20
Polished Black Chrome - 3000K
1A4722803.30.20
Compulsory accessories
Installation kits
Wire guide
Not included
Matt Black
1 Piece
1A3040400.00.00
Unipolar wire - 236.22"
Not included
1 Piece - Max 60V DC
Max 3 modules
1A4730000.00.00
Suspension kits
Recessed suspension kit for 0.49" plasterboard
Not included
Matt White
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
1X0000300.02.00
Matt Black
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
1X0000400.02.00
Ceiling suspension kit
Not included
Matt White
For elettrical cables - 1 Piece
1X0010300.02.00
Matt Black
For elettrical cables - 1 Piece
1X0010400.02.00
Wall adapter plate
Not included
Matt White
For mounting on brick masonry walls
1X0050300.01.00
