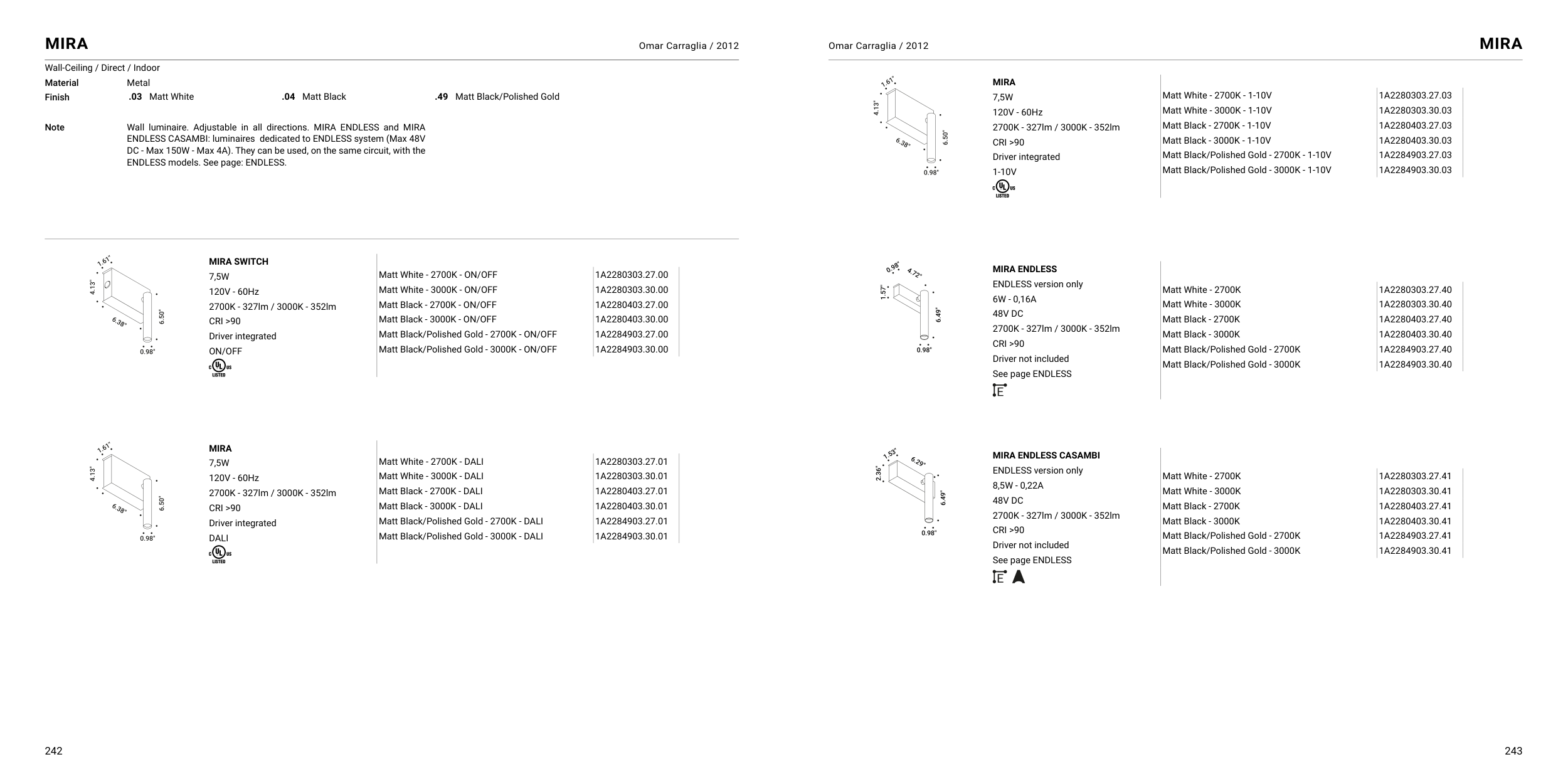

243
242
Omar Carraglia / 2012
MIRA
MIRA
Omar Carraglia / 2012
MIRA
7,5W
120V - 60Hz
2700K - 327lm / 3000K - 352lm
CRI >90
Driver integrated
1-10V
Matt White - 2700K - 1-10V
1A2280303.27.03
Matt White - 3000K - 1-10V
1A2280303.30.03
Matt Black - 2700K - 1-10V
1A2280403.27.03
Matt Black - 3000K - 1-10V
1A2280403.30.03
Matt Black/Polished Gold - 2700K - 1-10V
1A2284903.27.03
Matt Black/Polished Gold - 3000K - 1-10V
1A2284903.30.03
MIRA ENDLESS
ENDLESS version only
6W - 0,16A
48V DC
2700K - 327lm / 3000K - 352lm
CRI >90
Driver not included
See page ENDLESS
Matt White - 2700K
1A2280303.27.40
Matt White - 3000K
1A2280303.30.40
Matt Black - 2700K
1A2280403.27.40
Matt Black - 3000K
1A2280403.30.40
Matt Black/Polished Gold - 2700K
1A2284903.27.40
Matt Black/Polished Gold - 3000K
1A2284903.30.40
MIRA ENDLESS CASAMBI
ENDLESS version only
8,5W - 0,22A
48V DC
2700K - 327lm / 3000K - 352lm
CRI >90
Driver not included
See page ENDLESS
Matt White - 2700K
1A2280303.27.41
Matt White - 3000K
1A2280303.30.41
Matt Black - 2700K
1A2280403.27.41
Matt Black - 3000K
1A2280403.30.41
Matt Black/Polished Gold - 2700K
1A2284903.27.41
Matt Black/Polished Gold - 3000K
1A2284903.30.41
Wall-Ceiling / Direct / Indoor
Material
Metal
Finish
.03 Matt White
.04 Matt Black
.49 Matt Black/Polished Gold
Note
Wall luminaire. Adjustable in all directions. MIRA ENDLESS and MIRA
ENDLESS CASAMBI: luminaires dedicated to ENDLESS system (Max 48V
DC - Max 150W - Max 4A). They can be used, on the same circuit, with the
ENDLESS models. See page: ENDLESS.
MIRA SWITCH
7,5W
120V - 60Hz
2700K - 327lm / 3000K - 352lm
CRI >90
Driver integrated
ON/OFF
Matt White - 2700K - ON/OFF
1A2280303.27.00
Matt White - 3000K - ON/OFF
1A2280303.30.00
Matt Black - 2700K - ON/OFF
1A2280403.27.00
Matt Black - 3000K - ON/OFF
1A2280403.30.00
Matt Black/Polished Gold - 2700K - ON/OFF
1A2284903.27.00
Matt Black/Polished Gold - 3000K - ON/OFF
1A2284903.30.00
MIRA
7,5W
120V - 60Hz
2700K - 327lm / 3000K - 352lm
CRI >90
Driver integrated
DALI
Matt White - 2700K - DALI
1A2280303.27.01
Matt White - 3000K - DALI
1A2280303.30.01
Matt Black - 2700K - DALI
1A2280403.27.01
Matt Black - 3000K - DALI
1A2280403.30.01
Matt Black/Polished Gold - 2700K - DALI
1A2284903.27.01
Matt Black/Polished Gold - 3000K - DALI
1A2284903.30.01
