IP20 | IP44

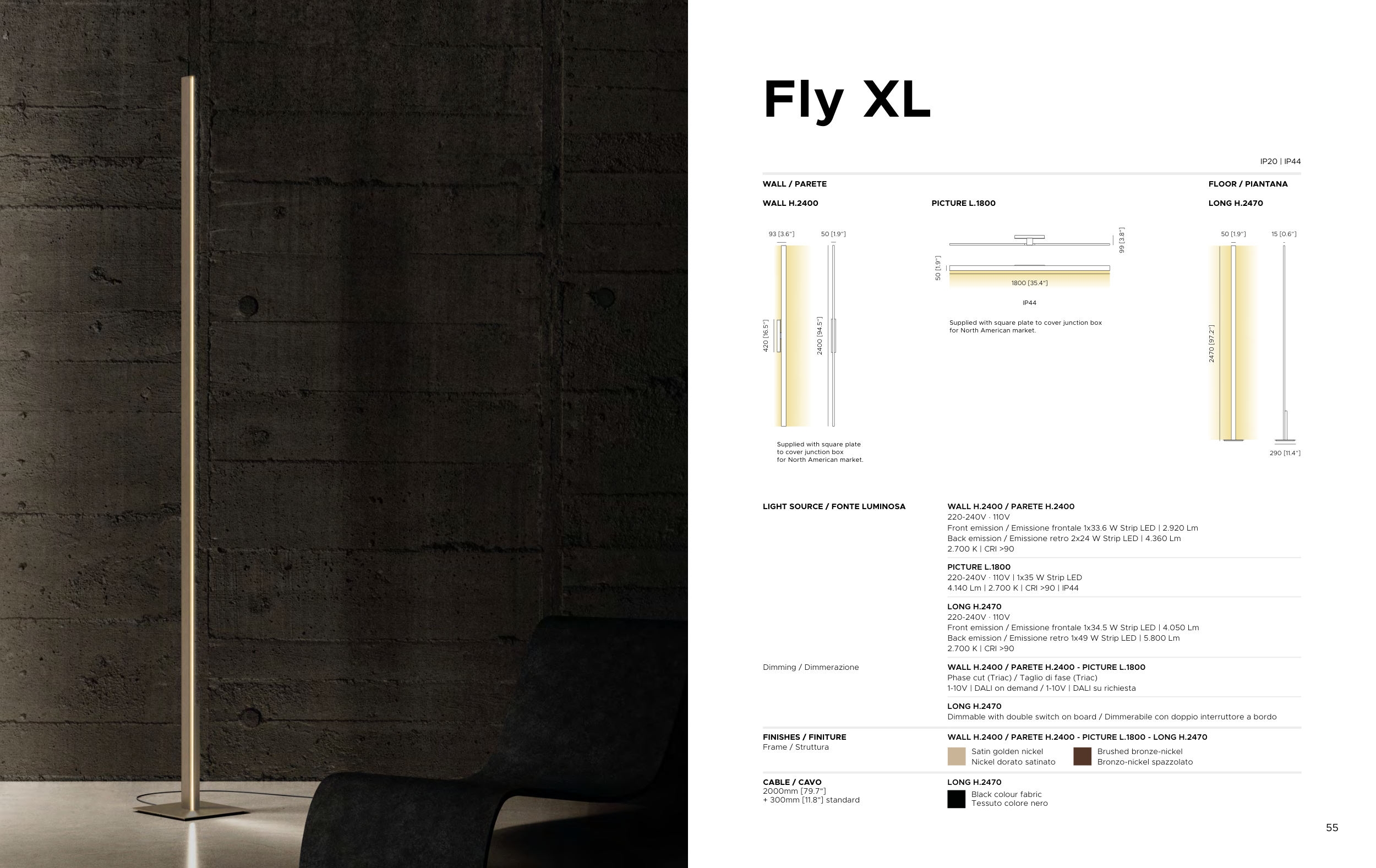

Fly XL
WALL / PARETE
FLOOR / PIANTANA
WALL H.2400
LONG H.2470
PICTURE L.1800
50 [1.9”]
420 [16.5”]
93 [3.6”]
2400 [94.5”]
2470 [97.2”]
50 [1.9”]
15 [0.6”]
290 [11.4”]
FINISHES / FINITURE
Frame / Struttura
WALL H.2400 / PARETE H.2400 - PICTURE L.1800 - LONG H.2470
CABLE / CAVO
2000mm [79.7"]
+ 300mm [11.8"] standard
LONG H.2470
Satin golden nickel
Nickel dorato satinato
LIGHT SOURCE / FONTE LUMINOSA
WALL H.2400 / PARETE H.2400
220-240V . 110V
Front emission / Emissione frontale 1x33.6 W Strip LED | 2.920 Lm
Back emission / Emissione retro 2x24 W Strip LED | 4.360 Lm
2.700 K | CRI >90
PICTURE L.1800
220-240V . 110V | 1x35 W Strip LED
4.140 Lm | 2.700 K | CRI >90 | IP44
LONG H.2470
220-240V . 110V
Front emission / Emissione frontale 1x34.5 W Strip LED | 4.050 Lm
Back emission / Emissione retro 1x49 W Strip LED | 5.800 Lm
2.700 K | CRI >90
Dimming / Dimmerazione
WALL H.2400 / PARETE H.2400 - PICTURE L.1800
Phase cut (Triac) / Taglio di fase (Triac)
1-10V | DALI on demand / 1-10V | DALI su richiesta
LONG H.2470
Dimmable with double switch on board / Dimmerabile con doppio interruttore a bordo
Brushed bronze-nickel
Bronzo-nickel spazzolato
Black colour fabric
Tessuto colore nero
Supplied with square plate to cover junction box
for North American market.
Supplied with square plate
to cover junction box
for North American market.
IP44
1800 [35.4"]
99 [3.8”]
50 [1.9”]
55
