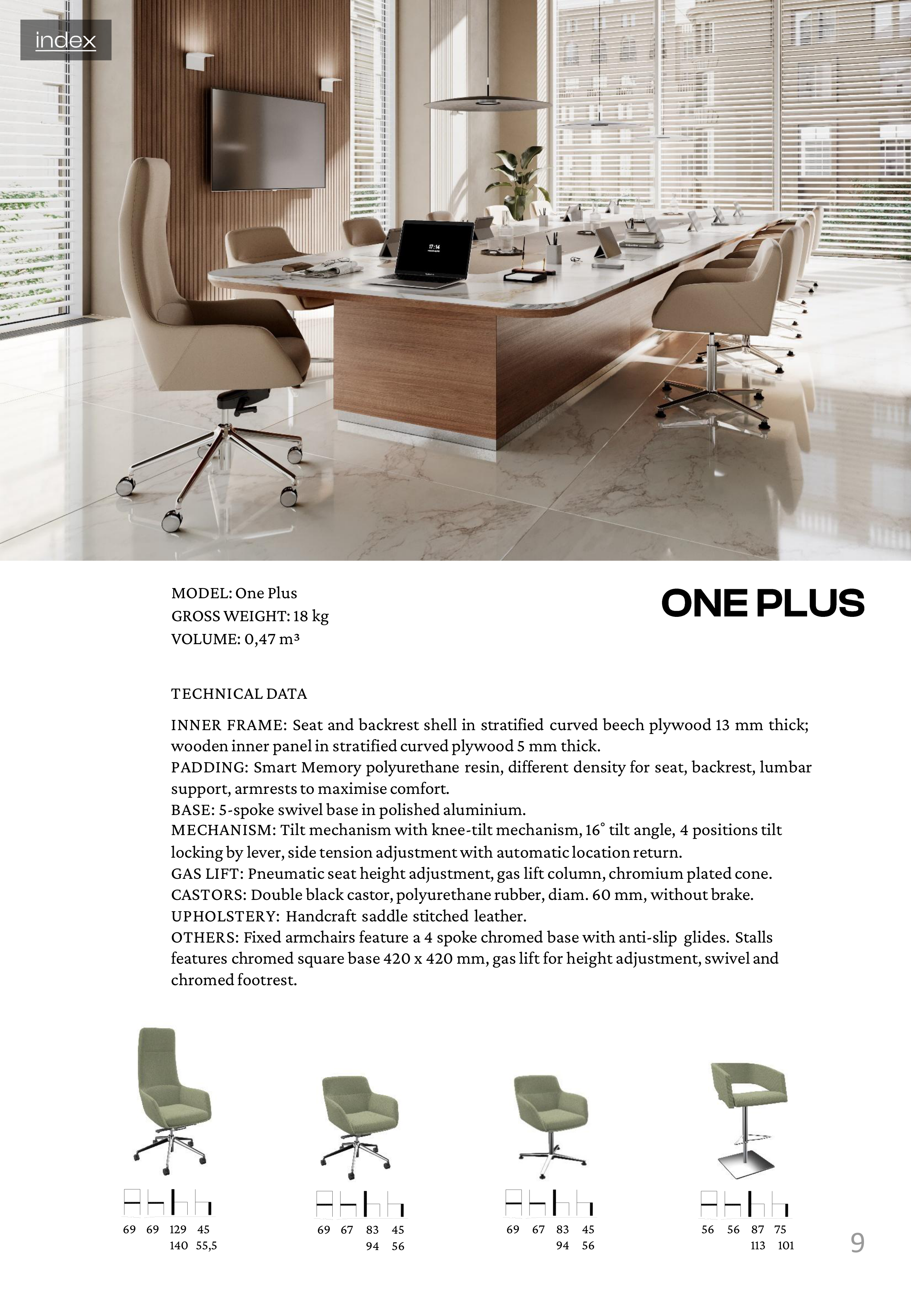

MODEL: One Plus
GROSS WEIGHT: 18 kg
VOLUME: 0,47 m³
TECHNICAL DATA
INNER FRAME: Seat and backrest shell in stratified curved beech plywood 13 mm thick;
wooden inner panel in stratifiedcurvedplywood 5 mm thick.
PADDING: Smart Memory polyurethane resin, different density for seat, backrest, lumbar
support, armreststo maximise comfort.
BASE: 5-spoke swivel base in polished aluminium.
MECHANISM: Tilt mechanism with knee-tilt mechanism, 16° tilt angle, 4 positions tilt
locking by lever, side tensionadjustmentwith automaticlocation return.
GAS LIFT: Pneumatic seat heightadjustment,gas lift column,chromium platedcone.
CASTORS: Double black castor, polyurethane rubber, diam. 60 mm, without brake.
UPHOLSTERY: Handcraft saddle stitched leather.
OTHERS: Fixed armchairs feature a 4 spoke chromed base with anti-slip glides. Stalls
features chromed square base 420 x 420 mm, gas lift for height adjustment, swivel and
chromed footrest.
69 69 129 450
140 55,5
69 67
83 45
94 56
69 67 83 45
94 56
The mechanism is certified ISO 21015:2007, EN and BIFMA, for
24 hour use and maximum weight of 150 kilo, in accordance
with the norm BS 5459: Part 2:2000. The mechanism complies
with USA Lead Paint Norm, 16 CFR Part 1303 12/21/2008.
56 56 87 750
113 101
9
