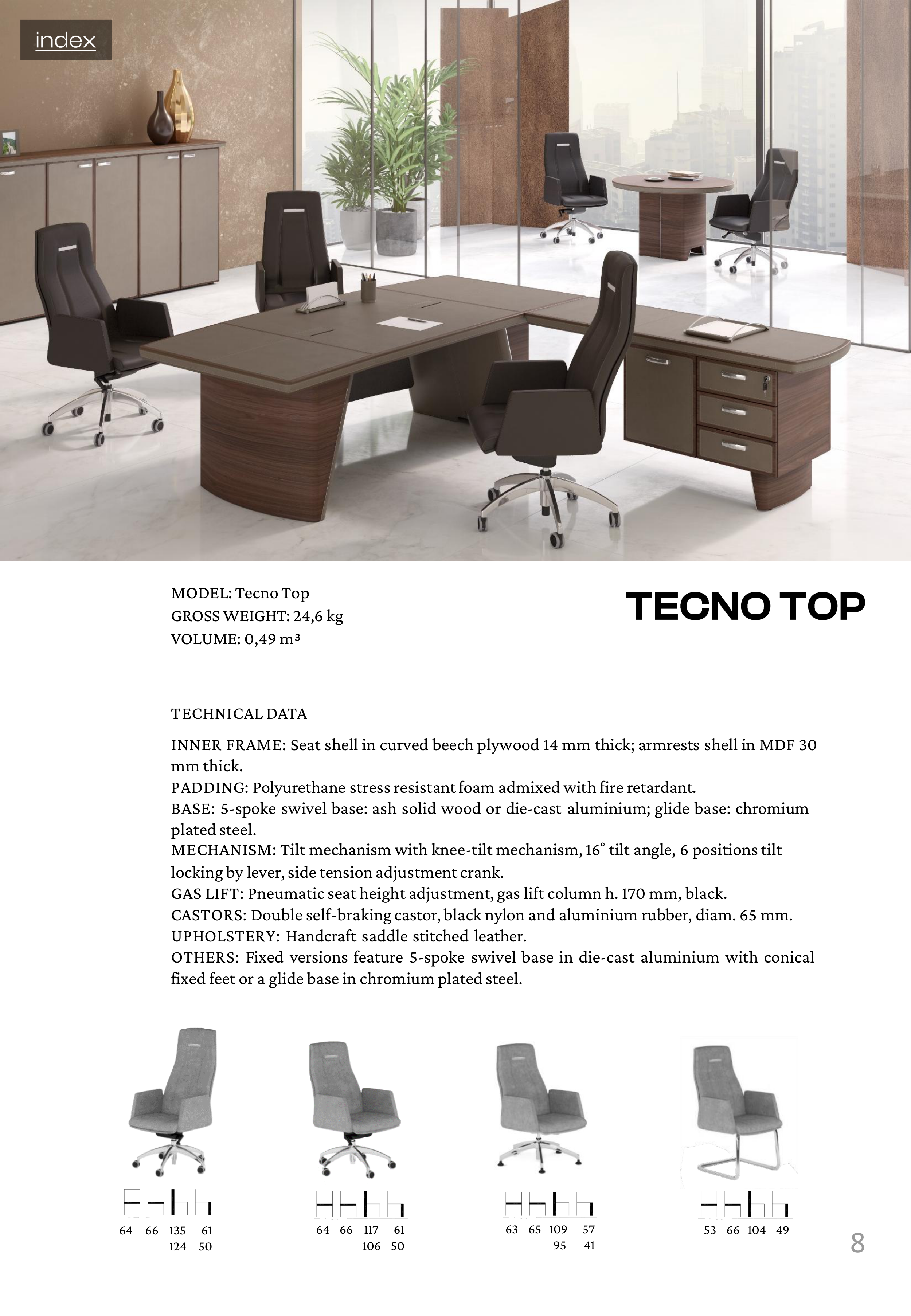

MODEL: Tecno Top
GROSS WEIGHT: 24,6 kg
VOLUME: 0,49 m³
TECHNICAL DATA
INNER FRAME: Seat shell in curved beech plywood 14 mm thick; armrests shell in MDF 30
mm thick.
PADDING: Polyurethane stress resistant foam admixed with fire retardant.
BASE: 5-spoke swivel base: ash solid wood or die-cast aluminium; glide base: chromium
platedsteel.
MECHANISM: Tilt mechanism with knee-tilt mechanism, 16° tilt angle, 6 positions tilt
locking by lever, side tensionadjustmentcrank.
GAS LIFT: Pneumatic seat height adjustment,gas lift column h. 170 mm, black.
CASTORS: Double self-braking castor, black nylon and aluminium rubber, diam. 65 mm.
UPHOLSTERY: Handcraft saddle stitched leather.
OTHERS: Fixed versions feature 5-spoke swivel base in die-cast aluminium with conical
fixed feet or a glide base in chromium platedsteel.
64
66 135
61
124 50
63 65 109
57
95 41
53 66 104 49
64 66 117 61
106 50
8
