12
13

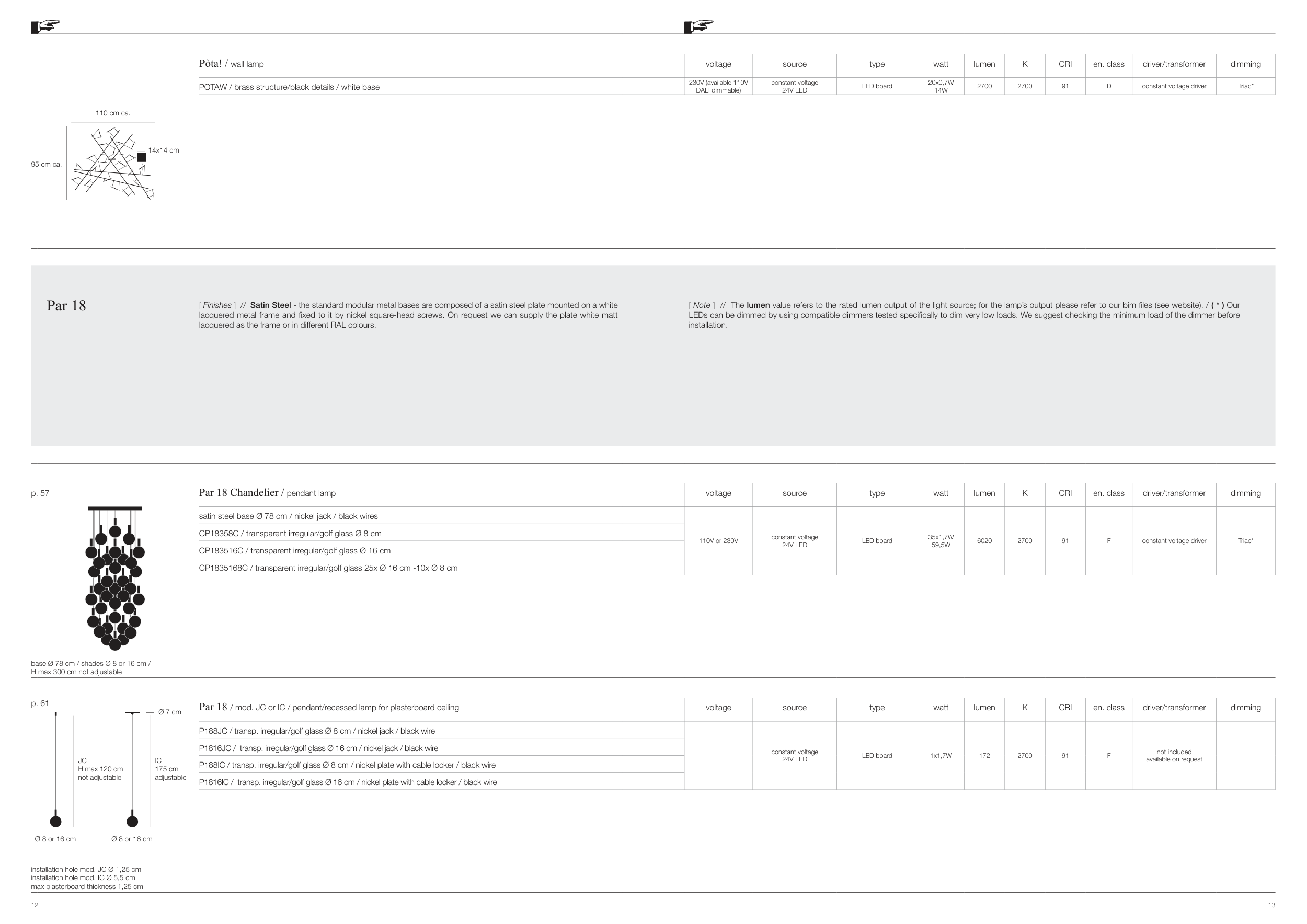

Pòta! / wall lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
14x14 cm
95 cm ca.
110 cm ca.
POTAW / brass structure/black details / white base
230V (available 110V
DALI dimmable)
constant voltage
24V LED
LED board
20x0,7W
14W
2700
2700
91
D
constant voltage driver
Triac*
Par 18
[ Finishes ] // Satin Steel - the standard modular metal bases are composed of a satin steel plate mounted on a white
lacquered metal frame and fixed to it by nickel square-head screws. On request we can supply the plate white matt
lacquered as the frame or in different RAL colours.
[ Note ] // The lumen value refers to the rated lumen output of the light source; for the lamp’s output please refer to our bim files (see website). / ( * ) Our
LEDs can be dimmed by using compatible dimmers tested specifically to dim very low loads. We suggest checking the minimum load of the dimmer before
installation.
p. 57
Par 18 Chandelier / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
satin steel base Ø 78 cm / nickel jack / black wires
110V or 230V
constant voltage
24V LED
LED board
35x1,7W
59,5W
6020
2700
91
F
constant voltage driver
Triac*
CP18358C / transparent irregular/golf glass Ø 8 cm
CP183516C / transparent irregular/golf glass Ø 16 cm
CP1835168C / transparent irregular/golf glass 25x Ø 16 cm -10x Ø 8 cm
base Ø 78 cm / shades Ø 8 or 16 cm /
H max 300 cm not adjustable
p. 61
Ø 7 cm
IC
175 cm
adjustable
JC
H max 120 cm
not adjustable
Ø 8 or 16 cm
Ø 8 or 16 cm
Par 18 / mod. JC or IC / pendant/recessed lamp for plasterboard ceiling
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
P188JC / transp. irregular/golf glass Ø 8 cm / nickel jack / black wire
-
constant voltage
24V LED
LED board
1x1,7W
172
2700
91
F
not included
available on request
-
P1816JC / transp. irregular/golf glass Ø 16 cm / nickel jack / black wire
P188IC / transp. irregular/golf glass Ø 8 cm / nickel plate with cable locker / black wire
P1816IC / transp. irregular/golf glass Ø 16 cm / nickel plate with cable locker / black wire
installation hole mod. JC Ø 1,25 cm
installation hole mod. IC Ø 5,5 cm
max plasterboard thickness 1,25 cm
