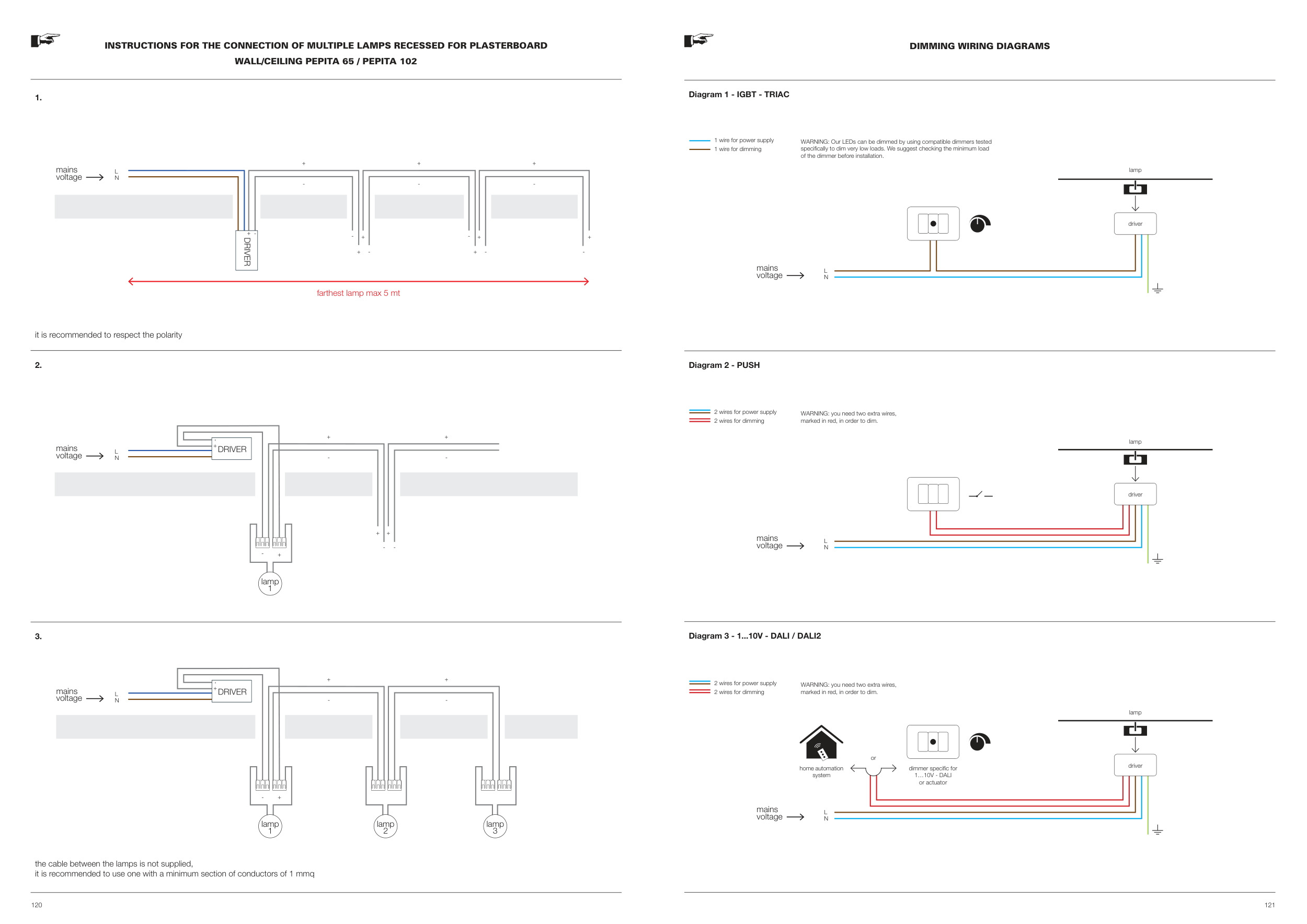

INSTRUCTIONS FOR THE CONNECTION OF MULTIPLE LAMPS RECESSED FOR PLASTERBOARD
1.
it is recommended to respect the polarity
2.
3.
the cable between the lamps is not supplied,
it is recommended to use one with a minimum section of conductors of 1 mmq
WALL/CEILING PEPITA 65 / PEPITA 102
120
mains
voltage
mains
voltage
L
L
N
N
lamp
1
mains
voltage
L
N
lamp
1
lamp
2
lamp
3
farthest lamp max 5 mt
DIMMING WIRING DIAGRAMS
Diagram 1 - IGBT - TRIAC
Diagram 2 - PUSH
Diagram 3 - 1...10V - DALI / DALI2
L
N
1 wire for power supply
1 wire for dimming
lamp
driver
L
N
WARNING: you need two extra wires,
marked in red, in order to dim.
WARNING: Our LEDs can be dimmed by using compatible dimmers tested
specifically to dim very low loads. We suggest checking the minimum load
of the dimmer before installation.
2 wires for power supply
2 wires for dimming
driver
lamp
L
N
WARNING: you need two extra wires,
marked in red, in order to dim.
2 wires for power supply
2 wires for dimming
driver
lamp
home automation
system
or
dimmer specific for
1…10V - DALI
or actuator
121
mains
voltage
mains
voltage
mains
voltage
