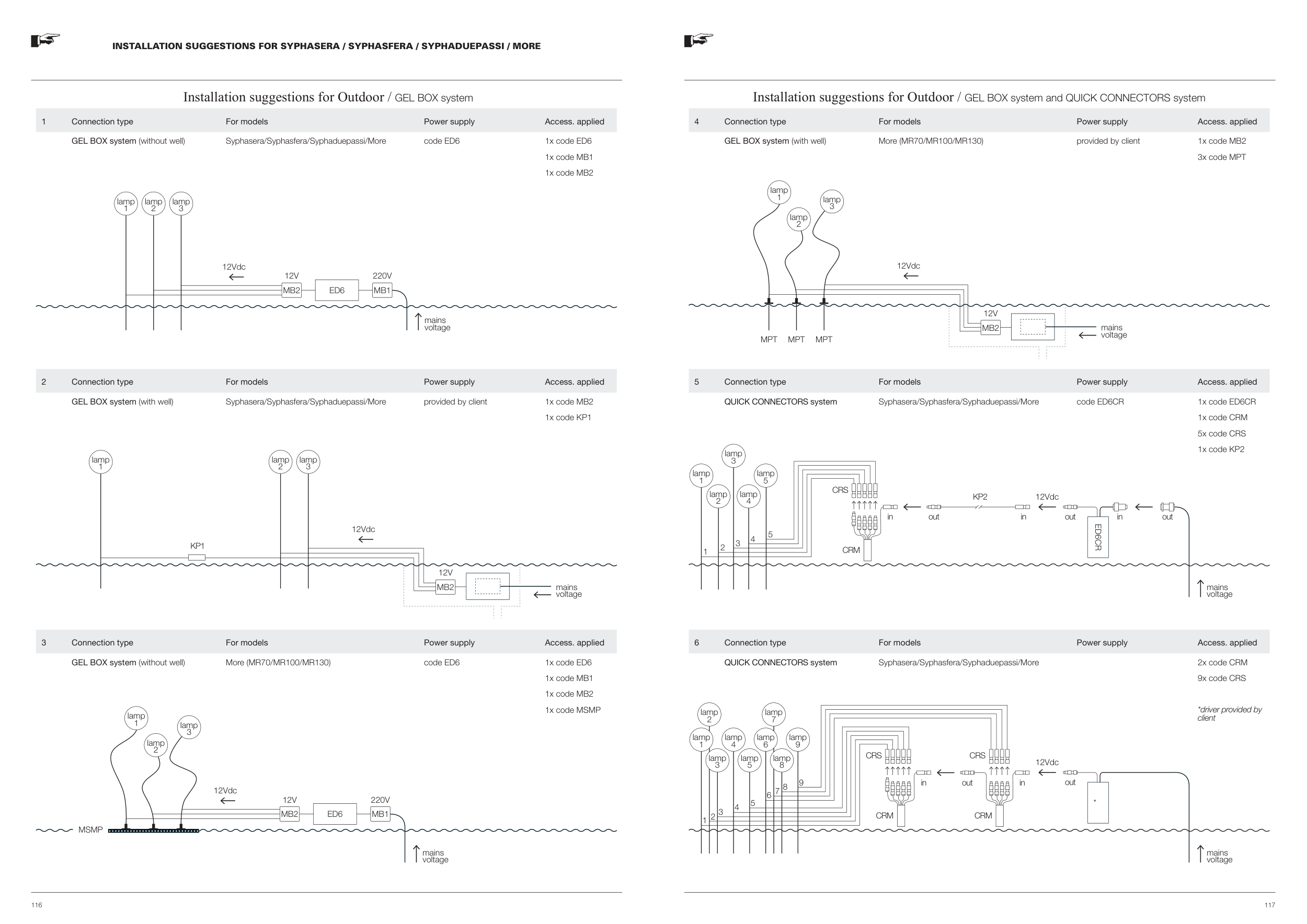

INSTALLATION SUGGESTIONS FOR SYPHASERA / SYPHASFERA / SYPHADUEPASSI / MORE
Installation suggestions for Outdoor / GEL BOX system
1
Connection type
For models
Power supply
Access. applied
GEL BOX system (without well)
Syphasera/Syphasfera/Syphaduepassi/More
code ED6
1x code ED6
1x code MB1
1x code MB2
2
Connection type
For models
Power supply
Access. applied
GEL BOX system (with well)
Syphasera/Syphasfera/Syphaduepassi/More
provided by client
1x code MB2
1x code KP1
3
Connection type
For models
Power supply
Access. applied
GEL BOX system (without well)
More (MR70/MR100/MR130)
code ED6
1x code ED6
1x code MB1
1x code MB2
1x code MSMP
12Vdc
12Vdc
12Vdc
mains
voltage
mains
voltage
mains
voltage
KP1
lamp
1
lamp
2
lamp
3
ED6
ED6
MB2
MB2
MSMP
12V
12V
MB1
MB1
220V
220V
MB2
12V
lamp
1
lamp
2
lamp
3
lamp
1
lamp
2
lamp
3
