66
67
p. 231

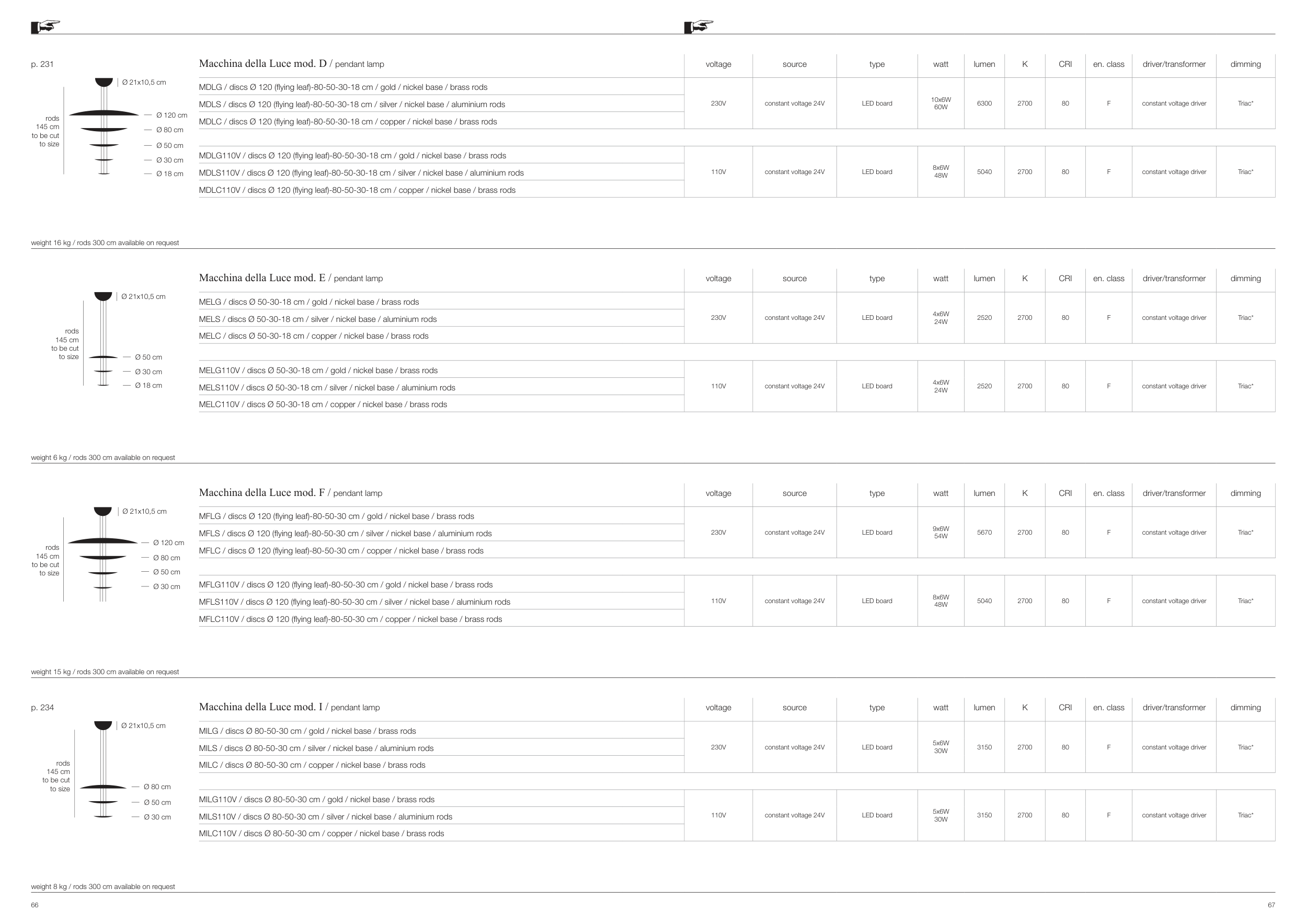

Macchina della Luce mod. D / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 21x10,5 cm
Ø 120 cm
Ø 80 cm
Ø 50 cm
Ø 30 cm
Ø 18 cm
rods
145 cm
to be cut
to size
MDLG / discs Ø 120 (flying leaf)-80-50-30-18 cm / gold / nickel base / brass rods
230V
constant voltage 24V
LED board
10x6W
60W
6300
2700
80
F
constant voltage driver
Triac*
MDLS / discs Ø 120 (flying leaf)-80-50-30-18 cm / silver / nickel base / aluminium rods
MDLC / discs Ø 120 (flying leaf)-80-50-30-18 cm / copper / nickel base / brass rods
MDLG110V / discs Ø 120 (flying leaf)-80-50-30-18 cm / gold / nickel base / brass rods
110V
constant voltage 24V
LED board
8x6W
48W
5040
2700
80
F
constant voltage driver
Triac*
MDLS110V / discs Ø 120 (flying leaf)-80-50-30-18 cm / silver / nickel base / aluminium rods
MDLC110V / discs Ø 120 (flying leaf)-80-50-30-18 cm / copper / nickel base / brass rods
weight 16 kg / rods 300 cm available on request
Macchina della Luce mod. E / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 21x10,5 cm
rods
145 cm
to be cut
to size
Ø 50 cm
Ø 30 cm
Ø 18 cm
MELG / discs Ø 50-30-18 cm / gold / nickel base / brass rods
230V
constant voltage 24V
LED board
4x6W
24W
2520
2700
80
F
constant voltage driver
Triac*
MELS / discs Ø 50-30-18 cm / silver / nickel base / aluminium rods
MELC / discs Ø 50-30-18 cm / copper / nickel base / brass rods
MELG110V / discs Ø 50-30-18 cm / gold / nickel base / brass rods
110V
constant voltage 24V
LED board
4x6W
24W
2520
2700
80
F
constant voltage driver
Triac*
MELS110V / discs Ø 50-30-18 cm / silver / nickel base / aluminium rods
MELC110V / discs Ø 50-30-18 cm / copper / nickel base / brass rods
weight 6 kg / rods 300 cm available on request
Macchina della Luce mod. F / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 120 cm
Ø 80 cm
Ø 50 cm
Ø 30 cm
Ø 21x10,5 cm
rods
145 cm
to be cut
to size
MFLG / discs Ø 120 (flying leaf)-80-50-30 cm / gold / nickel base / brass rods
230V
constant voltage 24V
LED board
9x6W
54W
5670
2700
80
F
constant voltage driver
Triac*
MFLS / discs Ø 120 (flying leaf)-80-50-30 cm / silver / nickel base / aluminium rods
MFLC / discs Ø 120 (flying leaf)-80-50-30 cm / copper / nickel base / brass rods
MFLG110V / discs Ø 120 (flying leaf)-80-50-30 cm / gold / nickel base / brass rods
110V
constant voltage 24V
LED board
8x6W
48W
5040
2700
80
F
constant voltage driver
Triac*
MFLS110V / discs Ø 120 (flying leaf)-80-50-30 cm / silver / nickel base / aluminium rods
MFLC110V / discs Ø 120 (flying leaf)-80-50-30 cm / copper / nickel base / brass rods
weight 15 kg / rods 300 cm available on request
p. 234
Macchina della Luce mod. I / pendant lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 80 cm
Ø 50 cm
Ø 30 cm
rods
145 cm
to be cut
to size
Ø 21x10,5 cm
MILG / discs Ø 80-50-30 cm / gold / nickel base / brass rods
230V
constant voltage 24V
LED board
5x6W
30W
3150
2700
80
F
constant voltage driver
Triac*
MILS / discs Ø 80-50-30 cm / silver / nickel base / aluminium rods
MILC / discs Ø 80-50-30 cm / copper / nickel base / brass rods
MILG110V / discs Ø 80-50-30 cm / gold / nickel base / brass rods
110V
constant voltage 24V
LED board
5x6W
30W
3150
2700
80
F
constant voltage driver
Triac*
MILS110V / discs Ø 80-50-30 cm / silver / nickel base / aluminium rods
MILC110V / discs Ø 80-50-30 cm / copper / nickel base / brass rods
weight 8 kg / rods 300 cm available on request
