p. 240

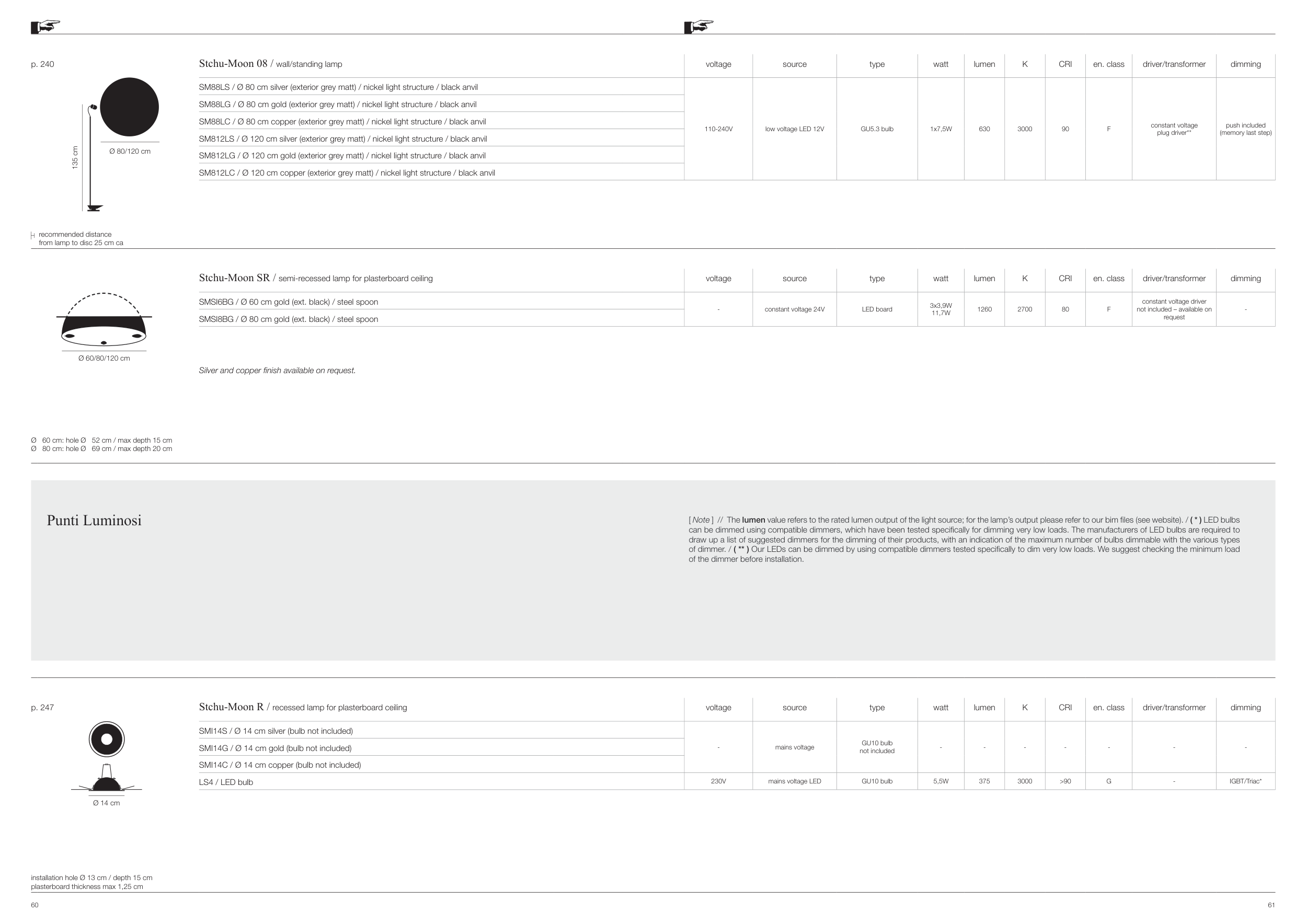

Stchu-Moon 08 / wall/standing lamp
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
135 cm
Ø 80/120 cm
SM88LS / Ø 80 cm silver (exterior grey matt) / nickel light structure / black anvil
110-240V
low voltage LED 12V
GU5.3 bulb
1x7,5W
630
3000
90
F
constant voltage
plug driver**
push included
(memory last step)
SM88LG / Ø 80 cm gold (exterior grey matt) / nickel light structure / black anvil
SM88LC / Ø 80 cm copper (exterior grey matt) / nickel light structure / black anvil
SM812LS / Ø 120 cm silver (exterior grey matt) / nickel light structure / black anvil
SM812LG / Ø 120 cm gold (exterior grey matt) / nickel light structure / black anvil
SM812LC / Ø 120 cm copper (exterior grey matt) / nickel light structure / black anvil
recommended distance
from lamp to disc 25 cm ca
Stchu-Moon SR / semi-recessed lamp for plasterboard ceiling
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 60/80/120 cm
SMSI6BG / Ø 60 cm gold (ext. black) / steel spoon
-
constant voltage 24V
LED board
3x3,9W
11,7W
1260
2700
80
F
constant voltage driver
not included – available on
request
-
SMSI8BG / Ø 80 cm gold (ext. black) / steel spoon
Silver and copper finish available on request.
Ø 60 cm: hole Ø 52 cm / max depth 15 cm
Ø 80 cm: hole Ø 69 cm / max depth 20 cm
Punti Luminosi
[ Note ] // The lumen value refers to the rated lumen output of the light source; for the lamp’s output please refer to our bim files (see website). / ( * ) LED bulbs
can be dimmed using compatible dimmers, which have been tested specifically for dimming very low loads. The manufacturers of LED bulbs are required to
draw up a list of suggested dimmers for the dimming of their products, with an indication of the maximum number of bulbs dimmable with the various types
of dimmer. / ( ** ) Our LEDs can be dimmed by using compatible dimmers tested specifically to dim very low loads. We suggest checking the minimum load
of the dimmer before installation.
p. 247
Stchu-Moon R / recessed lamp for plasterboard ceiling
voltage
source
type
watt
lumen
K
CRI
en. class
driver/transformer
dimming
Ø 14 cm
SMI14S / Ø 14 cm silver (bulb not included)
-
mains voltage
GU10 bulb
not included
-
-
-
-
-
-
-
SMI14G / Ø 14 cm gold (bulb not included)
SMI14C / Ø 14 cm copper (bulb not included)
LS4 / LED bulb
230V
mains voltage LED
GU10 bulb
5,5W
375
3000
>90
G
-
IGBT/Triac*
installation hole Ø 13 cm / depth 15 cm
plasterboard thickness max 1,25 cm
